Speaker Check Mode

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Not all self-diagnostic functions appear on all models.
There may be other self-diagnostic functions that are for factory use only.

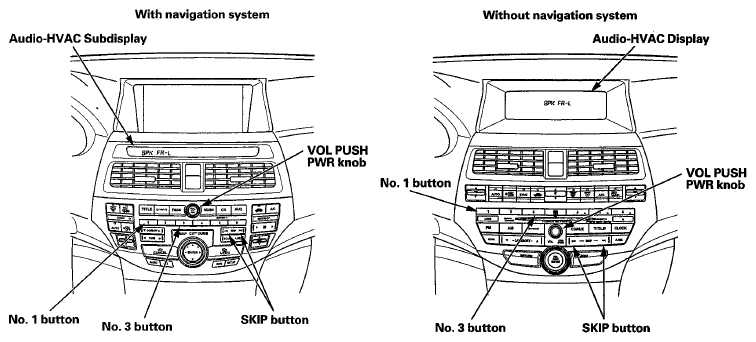

Turn the ignition switch to ON (II). Turn the audio unit off.
Push and hold the No. 1 and No. 3 buttons. While holding the buttons, push the VOL PUSH PWR knob to on. Release the buttons and the speaker check mode begins. A test tone should sound from one speaker.
NOTE: Make sure the volume is set to a normal or slightly higher than normal volume and set the balance and fader to the center position.

Each time you press the SKIP button, the test moves to the next speaker in the order listed.

Fig 1: Identifying Speaker Components Location

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Display Specifications

With premium audio system

( ) is pressed: (1)→(2)→(3)→(4)→(5)→(6)

( ) is pressed: (1)→(6)→(5)→(4)→(3)→(2)

Without premium audio system

( ) is pressed: (1)→(2)→(3)→(5)→(6)

( ) is pressed: (1)→(6)→(5)→(3)→(2)

SPEAKER SPECIFICATION

	Speaker	Displayed Segments	Remarks
(1)	Driver's door speaker and tweeter	SPK FR-L	You should hear a low frequency tone
(2)	Front Passenger's door speaker and tweeter	SPK FR-R	You should hear a low frequency tone
(3)	Right rear door speaker	SPK RR-R	You should hear a low frequency tone
(4)	Subwoofer	SPK SUBW	You should hear a low frequency tone
(5)	Left rear door speaker	SPK RR-L	You should hear a low frequency tone
(6)	All speakers	SPK ALL	You should hear a low frequency tone The subwoofer does not sound atone

NOTE: Any other diagnostic screens are shown for factory use only.

To end speaker check mode ends when you turn the audio unit off or turn the ignition switch to LOCK (0).
