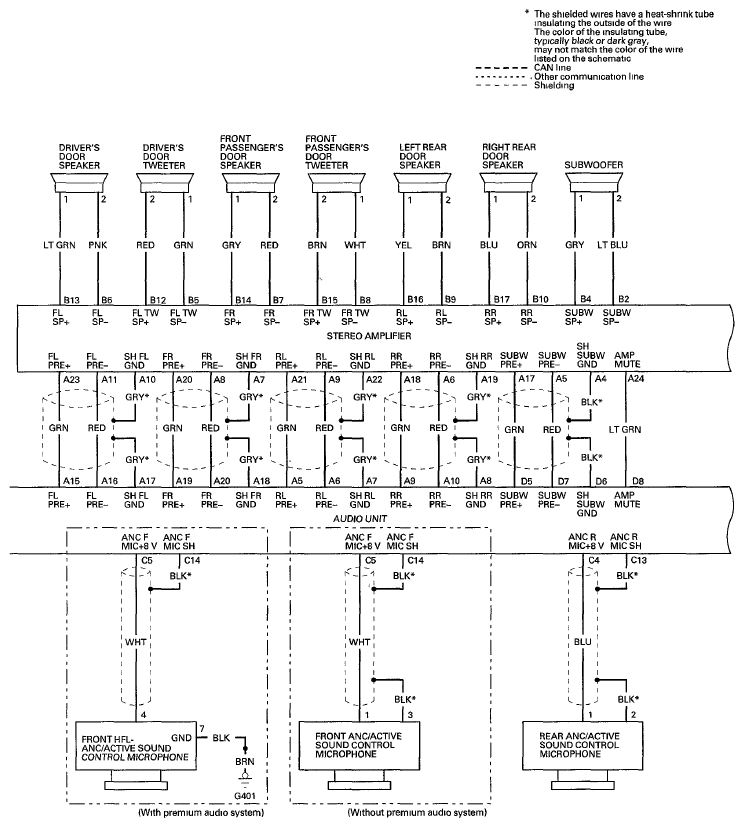

Fig 1: Audio System Circuit Diagram - Without Navigation System (1 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

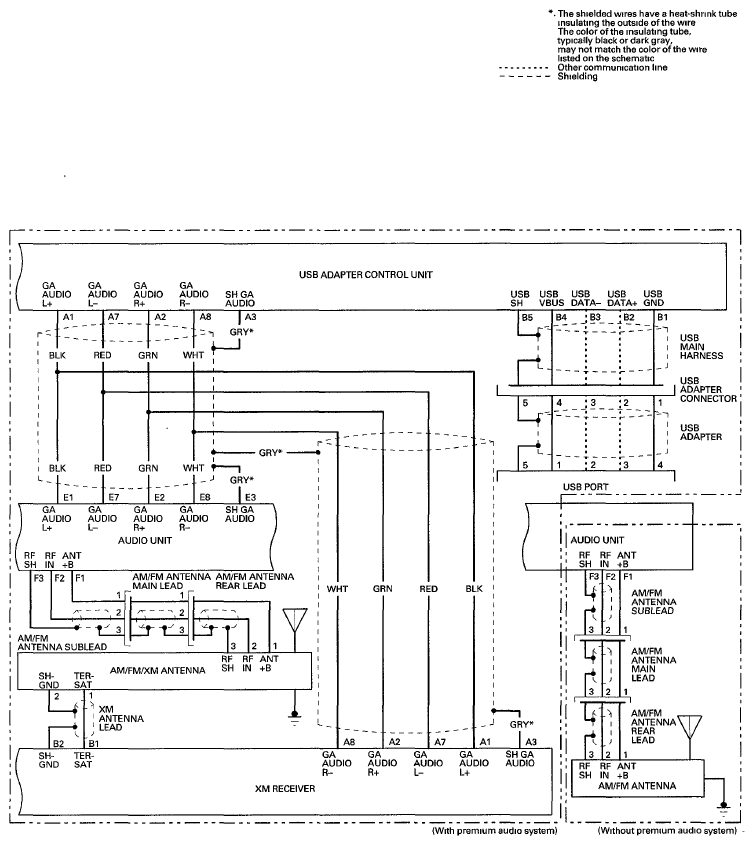

Fig 2: Audio System Circuit Diagram - Without Navigation System (2 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

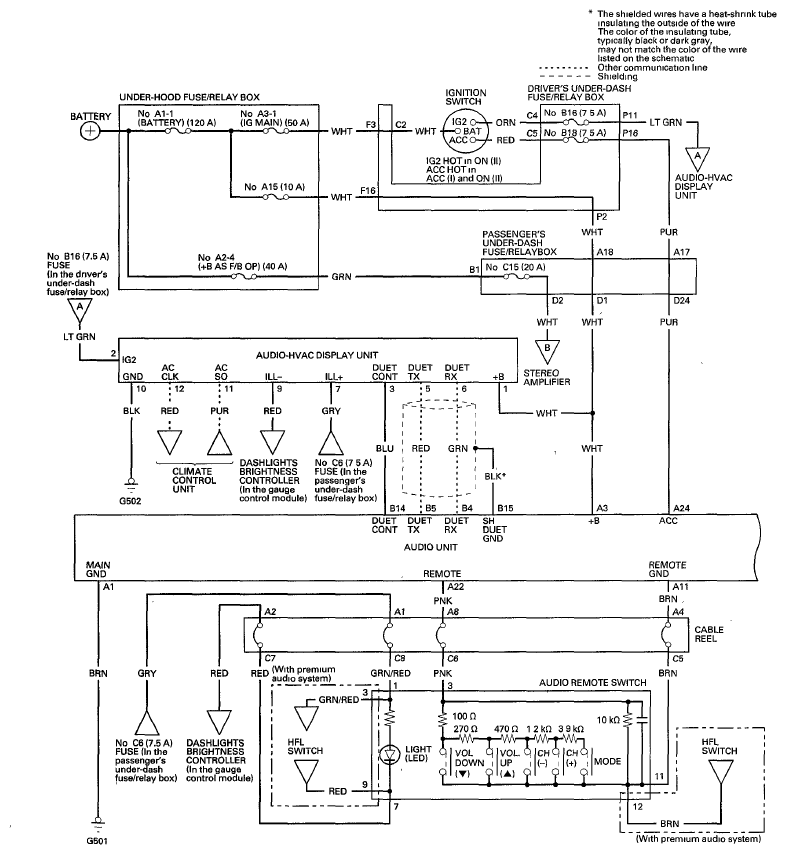

Fig 3: Audio System Circuit Diagram - Without Navigation System (3 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

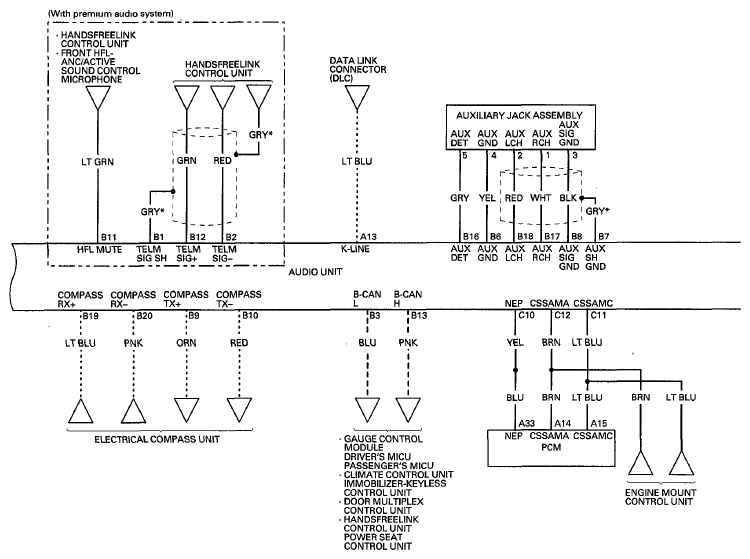

Fig 4: Audio System Circuit Diagram - Without Navigation System (4 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

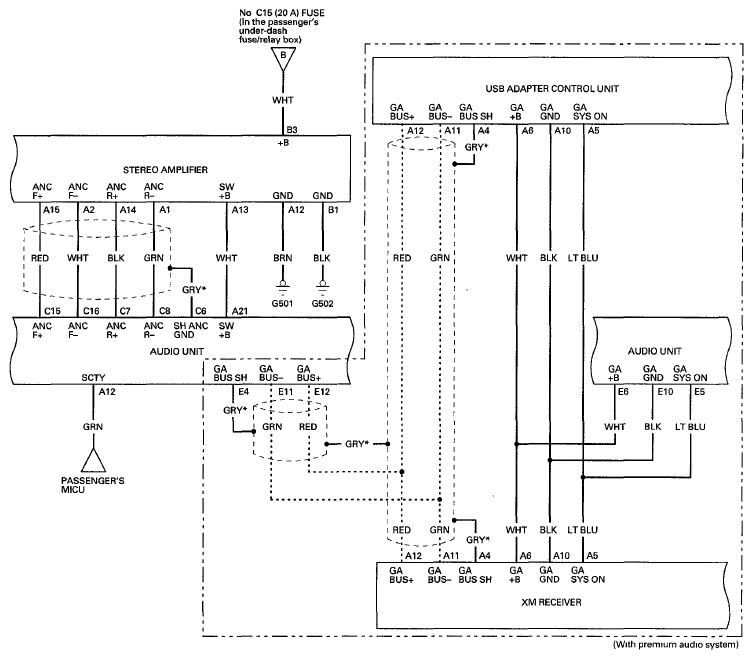

Fig 5: Audio System Circuit Diagram - Without Navigation System (5 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
