With Navigation System

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the dashboard and related parts.
  • Lay a shop towel under the parts when working on them to protect the face panel from scratches or other damage.
  • Eject all the discs before remove the audio disc changer to prevent damaging the audio disc changer load mechanism.
  1. Remove the center console panel (see CENTER CONSOLE PANEL REMOVAL/INSTALLATION ) and the center pocket (see CENTER POCKET REMOVAL/INSTALLATION ).
  2. Remove the bolts (A), then pull out the audio disc changer (B).

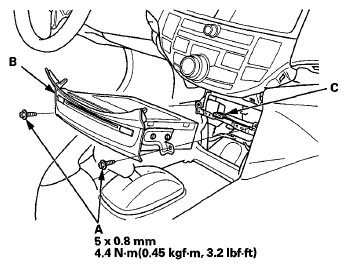

    Fig 1: Audio Disc Changer And Bolts With Torque Specifications
    G06424412Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the connector (C), then remove the audio disc changer.
  4. Remove the bolts (A) and brackets (B).
    Fig 2: Brackets And Bolts With Torque Specifications
    G06424413Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the audio disc changer in the reverse order of removal.
