Alternator Removal and Installation: Removal

Make sure you have the anti-theft code for the audio system.
Disconnect the negative cable from the battery.
Remove the drive belt (see DRIVE BELT REPLACEMENT ).
Remove the auto-tensioner (see DRIVE BELT AUTO-TENSIONER REPLACEMENT ).

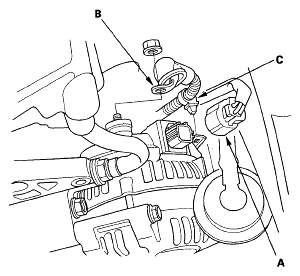

Disconnect the alternator connector (A), BLK wire (B), and harness clamp (C) from the alternator.

Fig 1: Identifying Alternator Connector, BLK Wire & Harness Clamp
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the positive crankcase ventilation (PCV) valve (see PCV VALVE REPLACEMENT ).
Remove the three bolts securing the alternator.

Fig 2: Identifying Alternator Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
