Circuit Diagram
>>
EX and SC Models Without Navigation
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
EX and SC Models Without Navigation

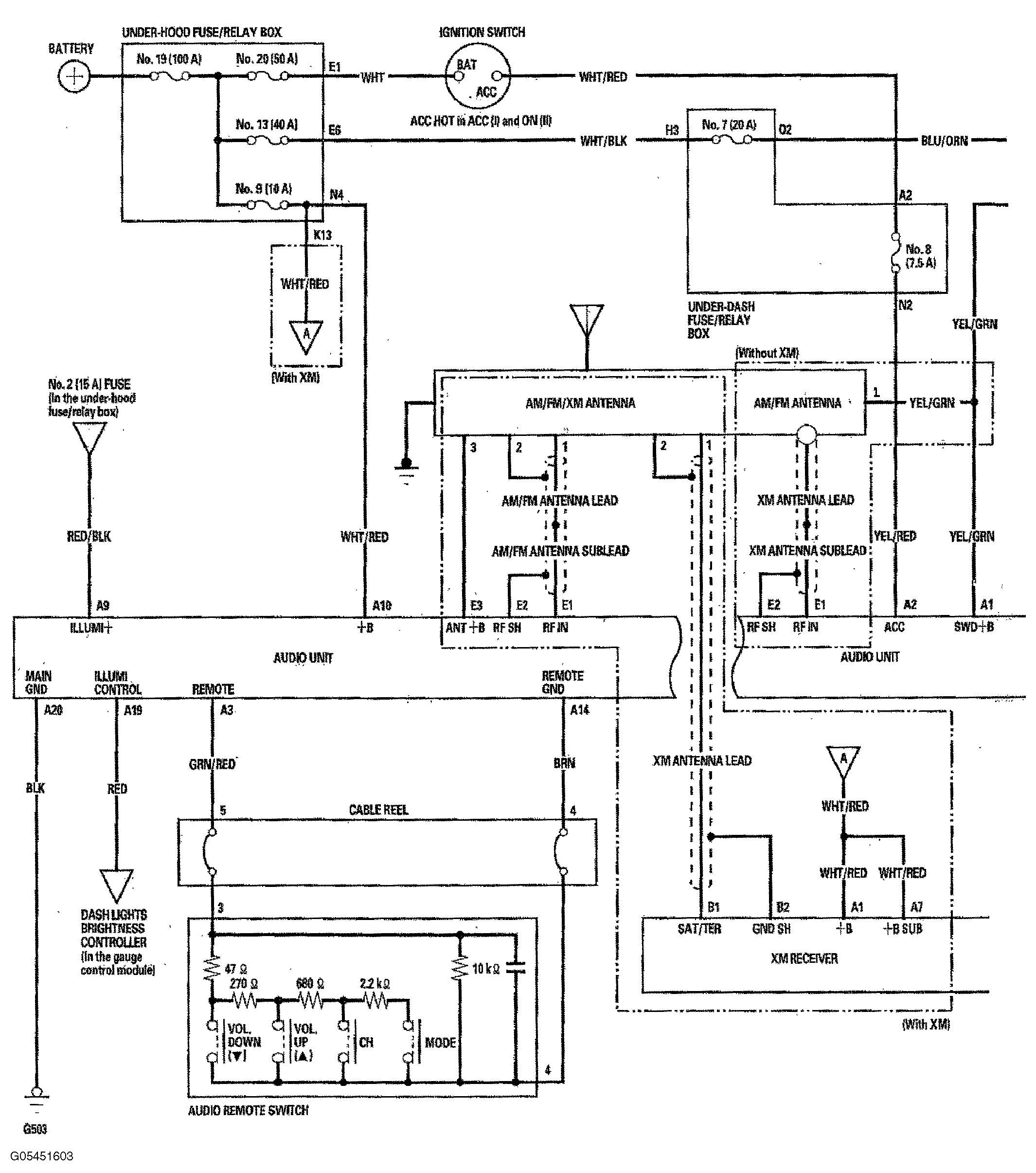

Fig 1: Identifying Audio System Circuit Diagram - EX & SC Models Without Navigation (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

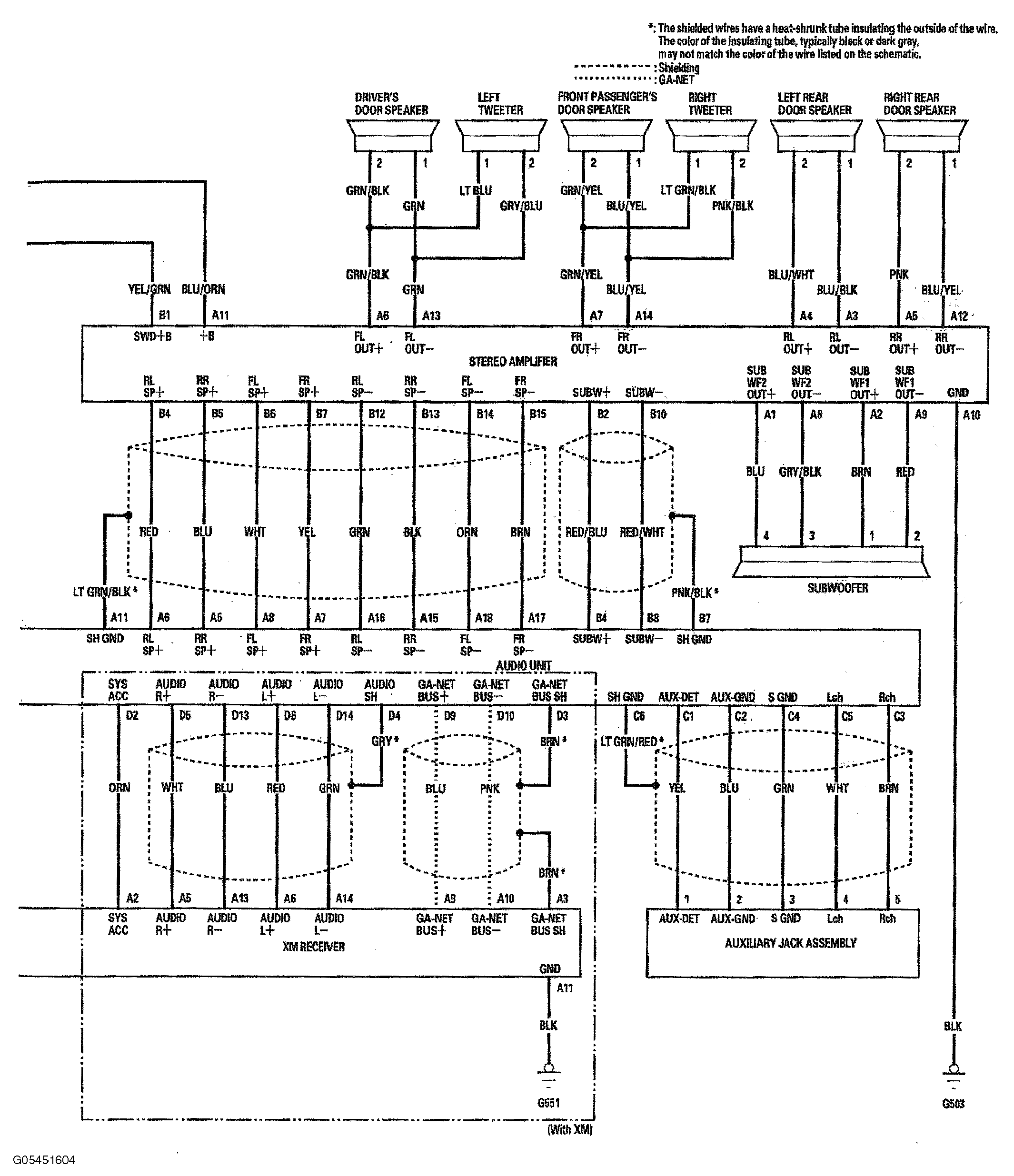

Fig 2: Identifying Audio System Circuit Diagram - EX & SC Models Without Navigation (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
