Power Window Switch: Locations

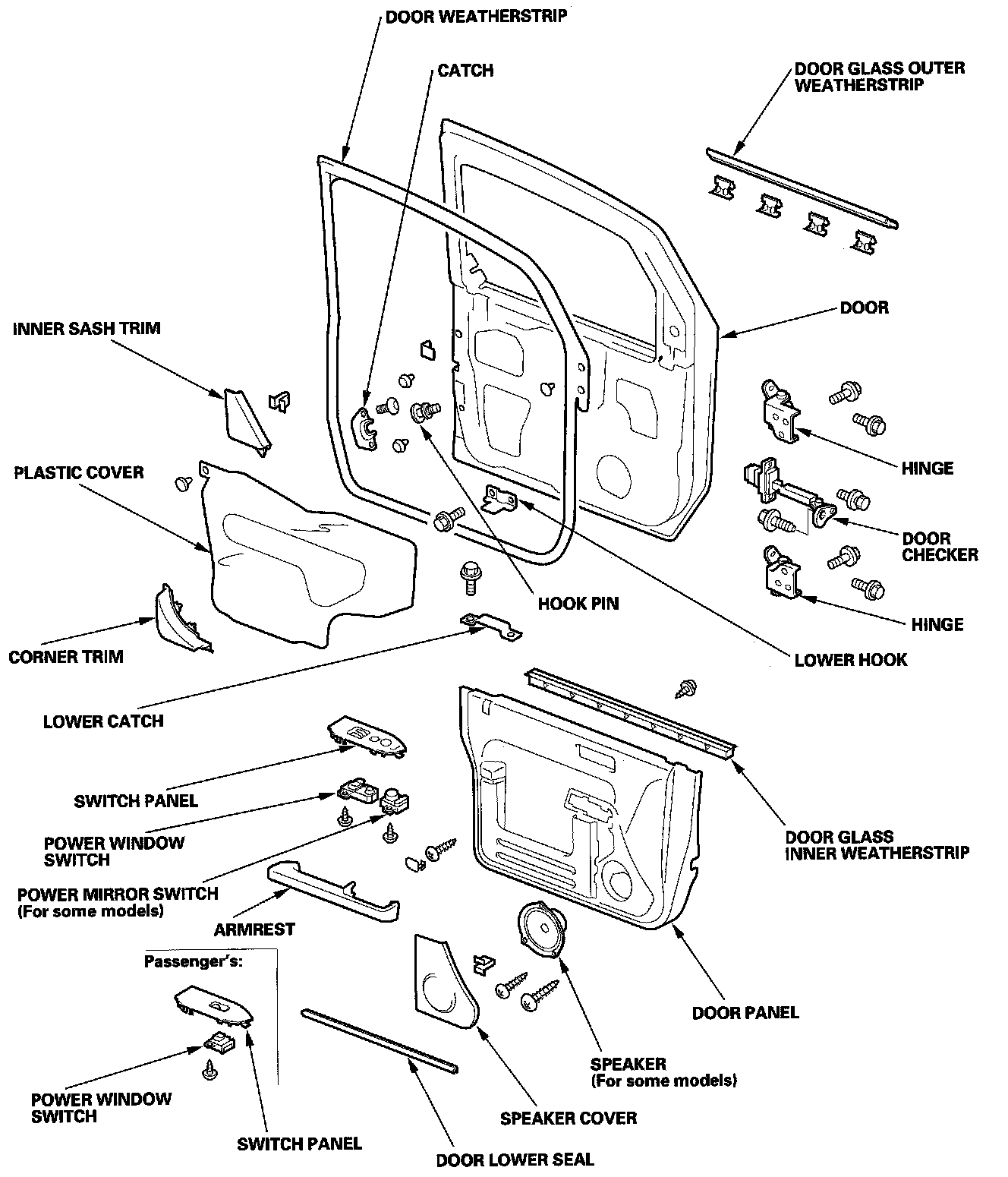

Front Door Component Location Index Part 1:

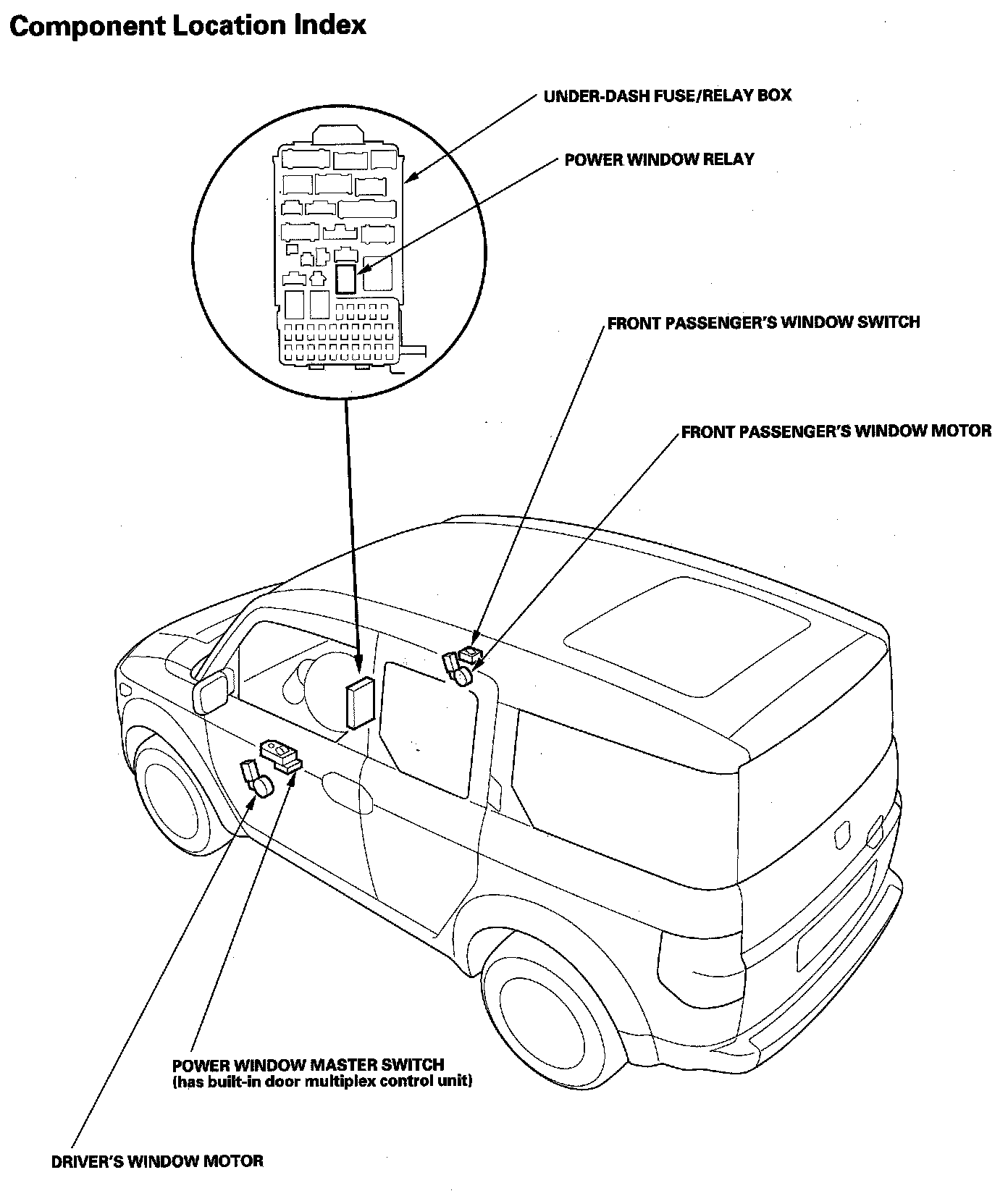

Power Windows Component Location Index:

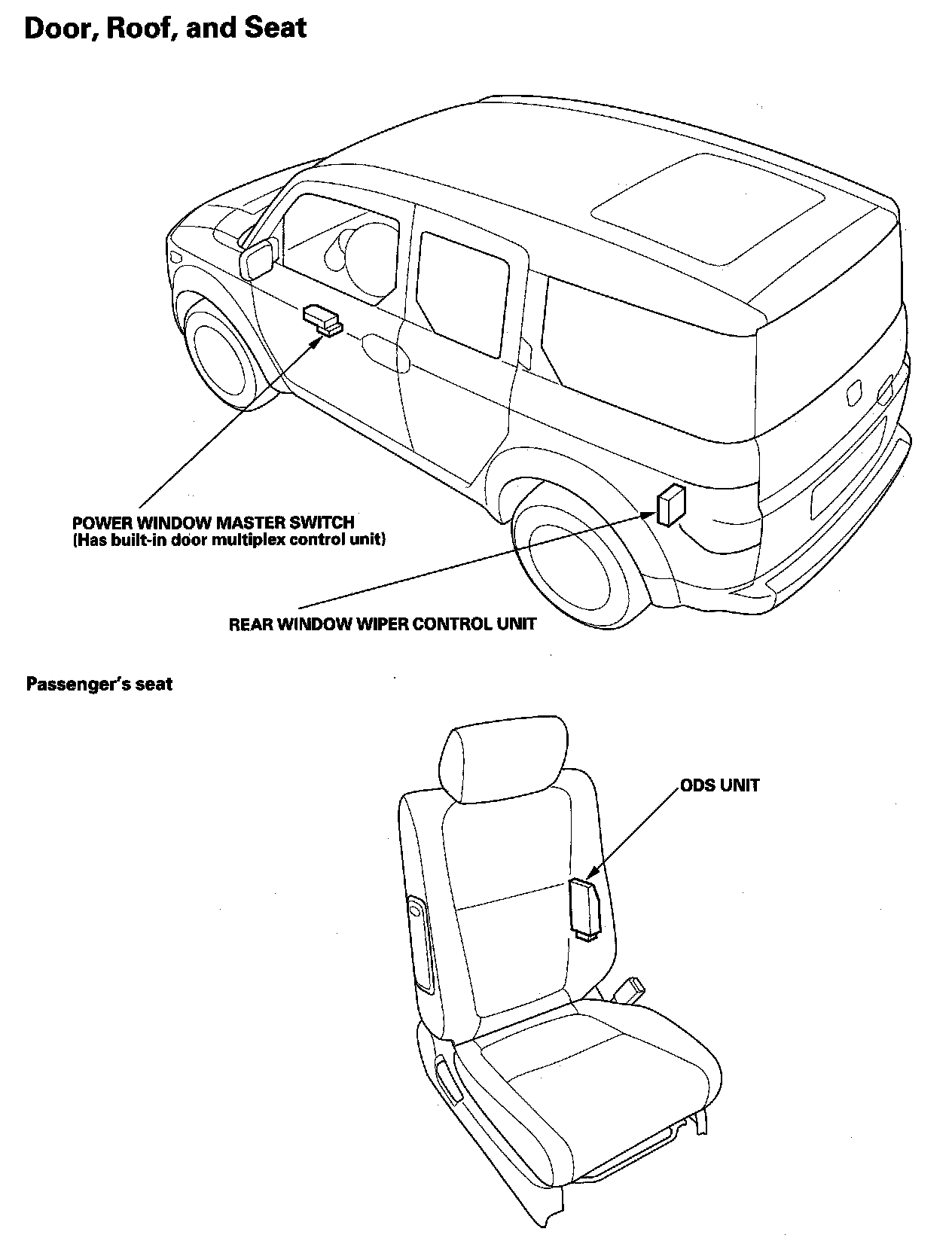

Relay And Control Unit Locations Door, Roof And Seat:

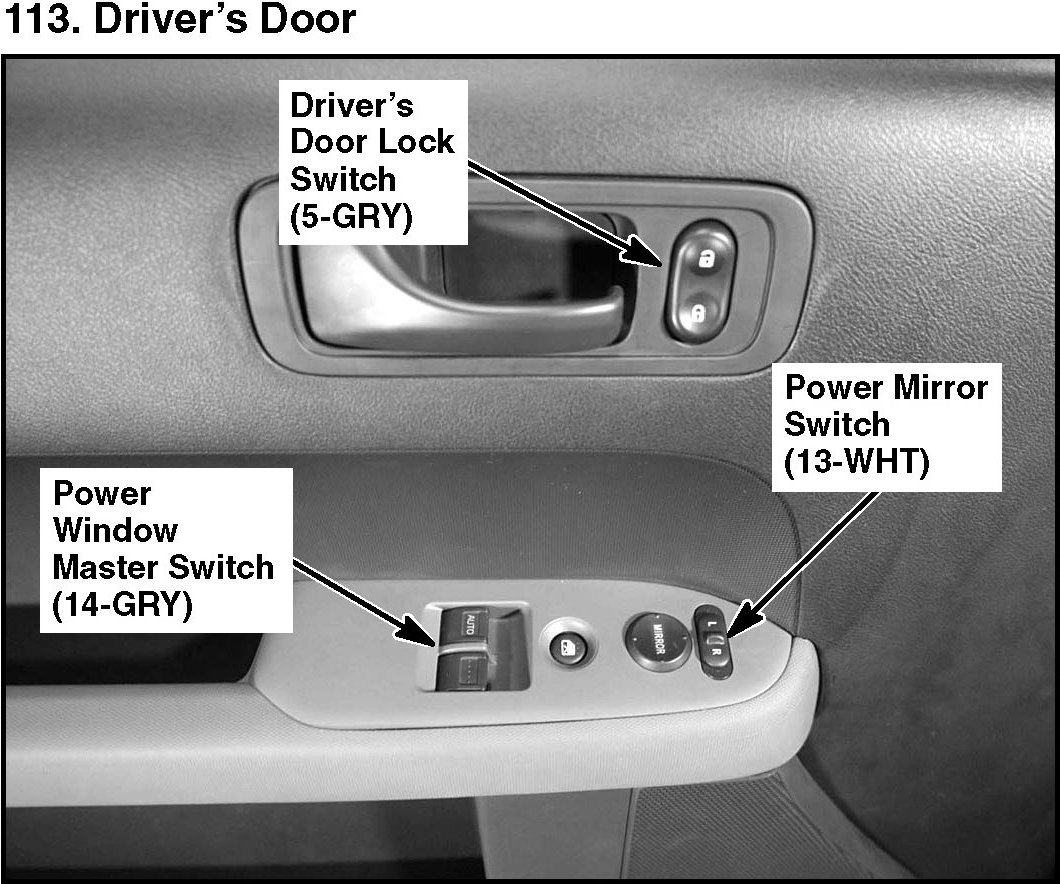

113. Driver's Door:

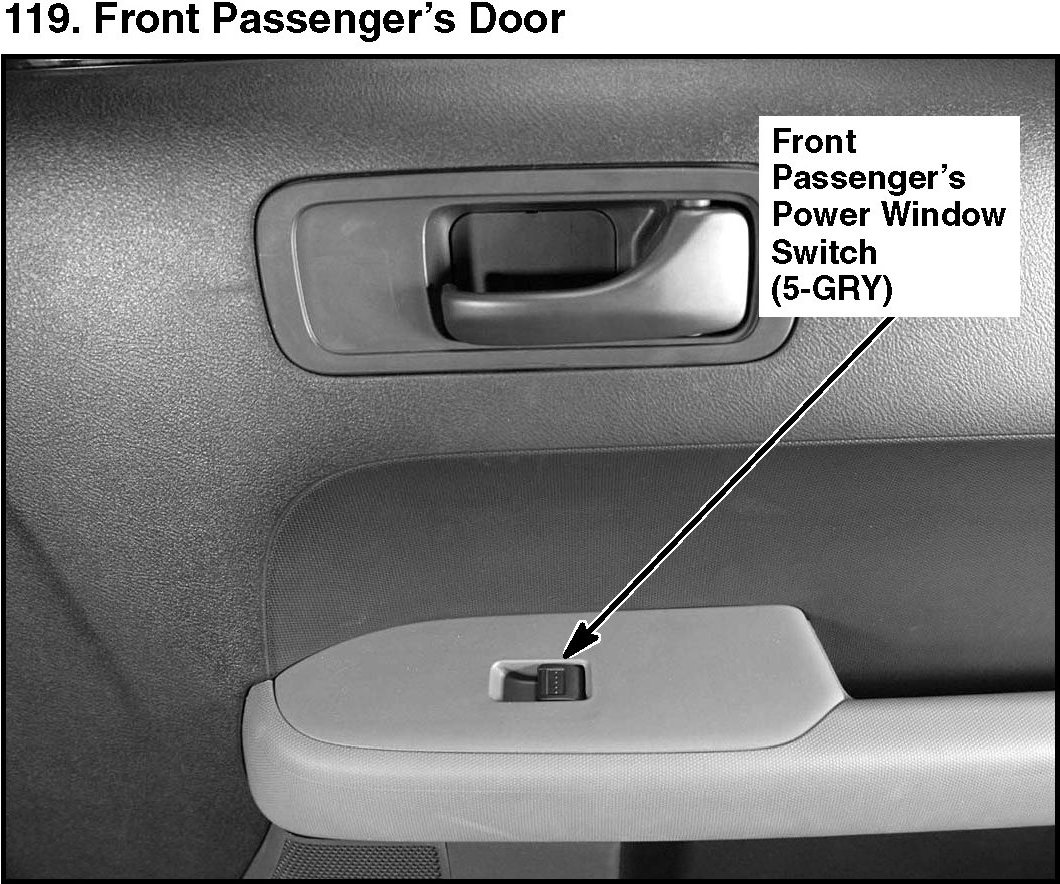

119. Front Passenger's Door:
