View 176-200: 185

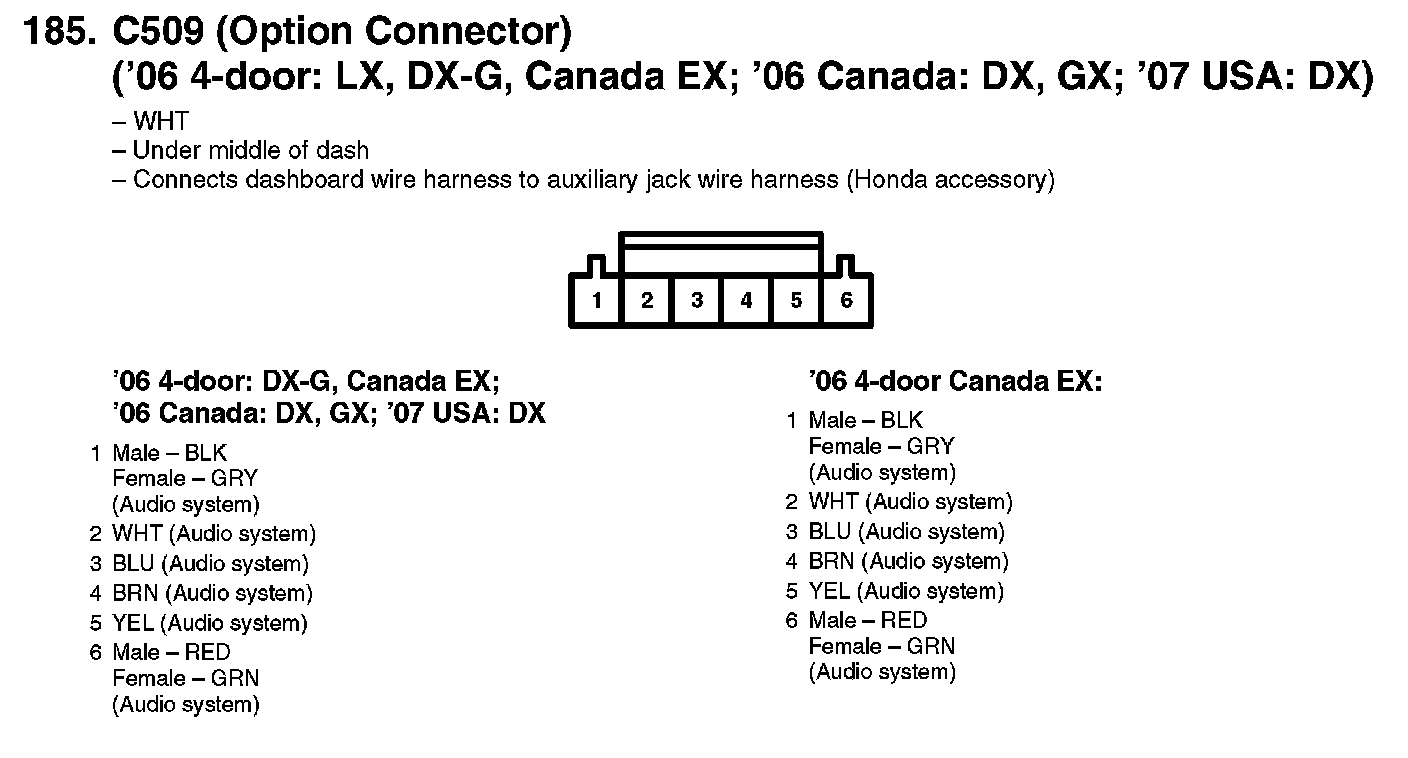

185. C509 (Option Connector) ('06 4-door: LX, DX-G, Canada EX; '06 Canada: DX, GX; '07 USA: DX):
