Power Window Switch

181. Power Window Switch, Front Passenger's:



182. Power Window Switch, Left Rear:



183. Power Window Switch, Right Rear:

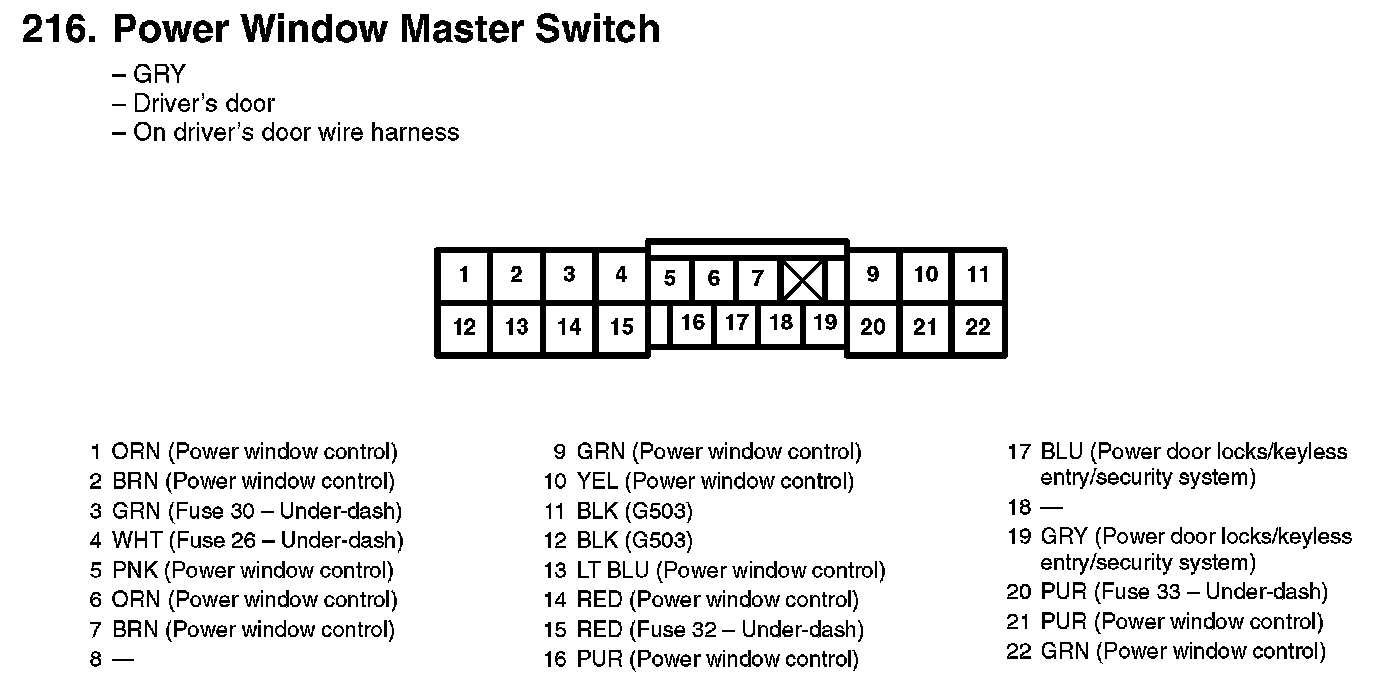

216. Power Window Master Switch:



181. Power Window Switch, Front Passenger's:



182. Power Window Switch, Left Rear:



183. Power Window Switch, Right Rear:



216. Power Window Master Switch:
