Gauge Control Module (Tach) Connector End View

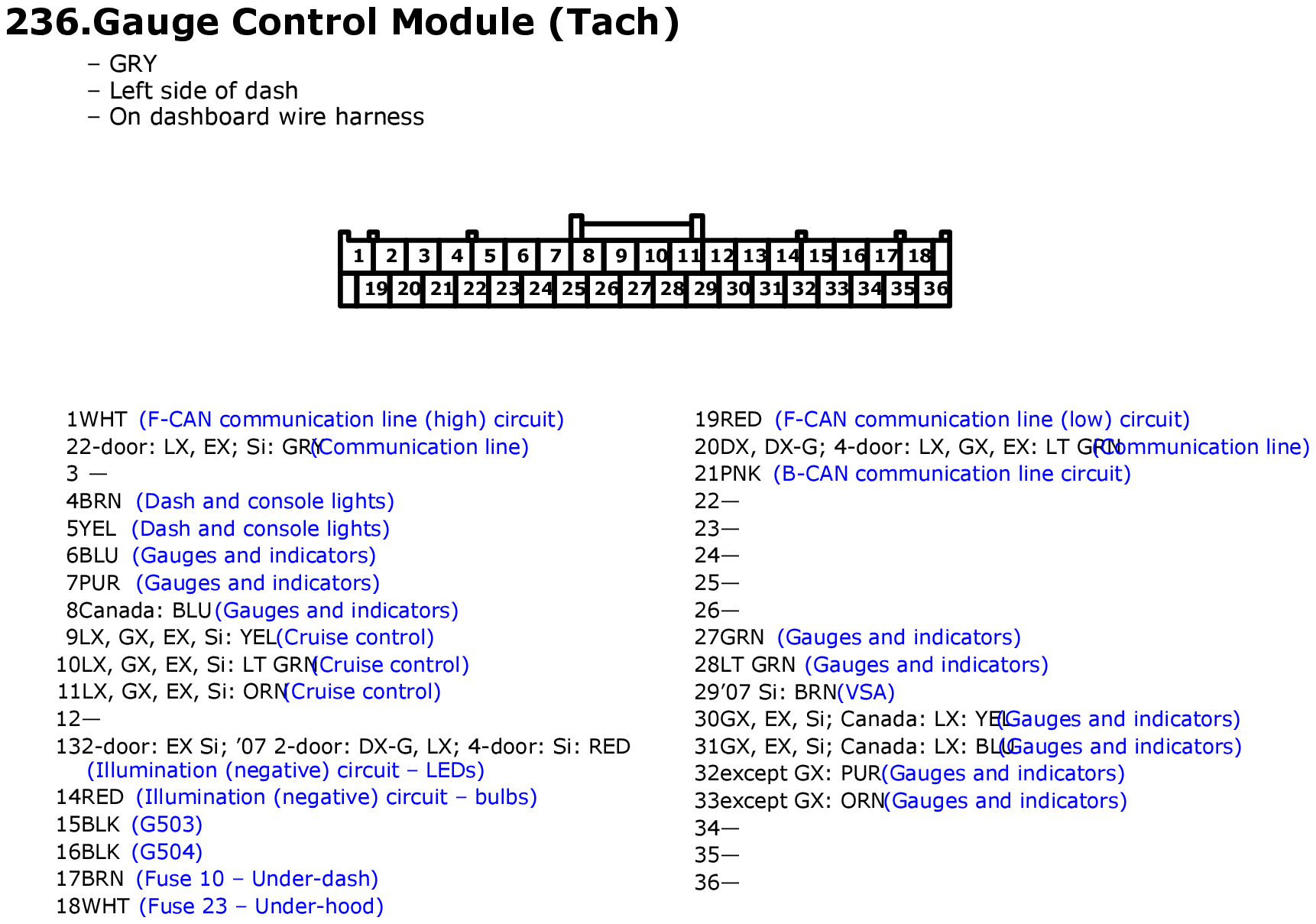

Fig 1: Gauge Control Module (Tach) Connector End View
GHHW1155Courtesy of AMERICAN HONDA MOTOR CO., INC.

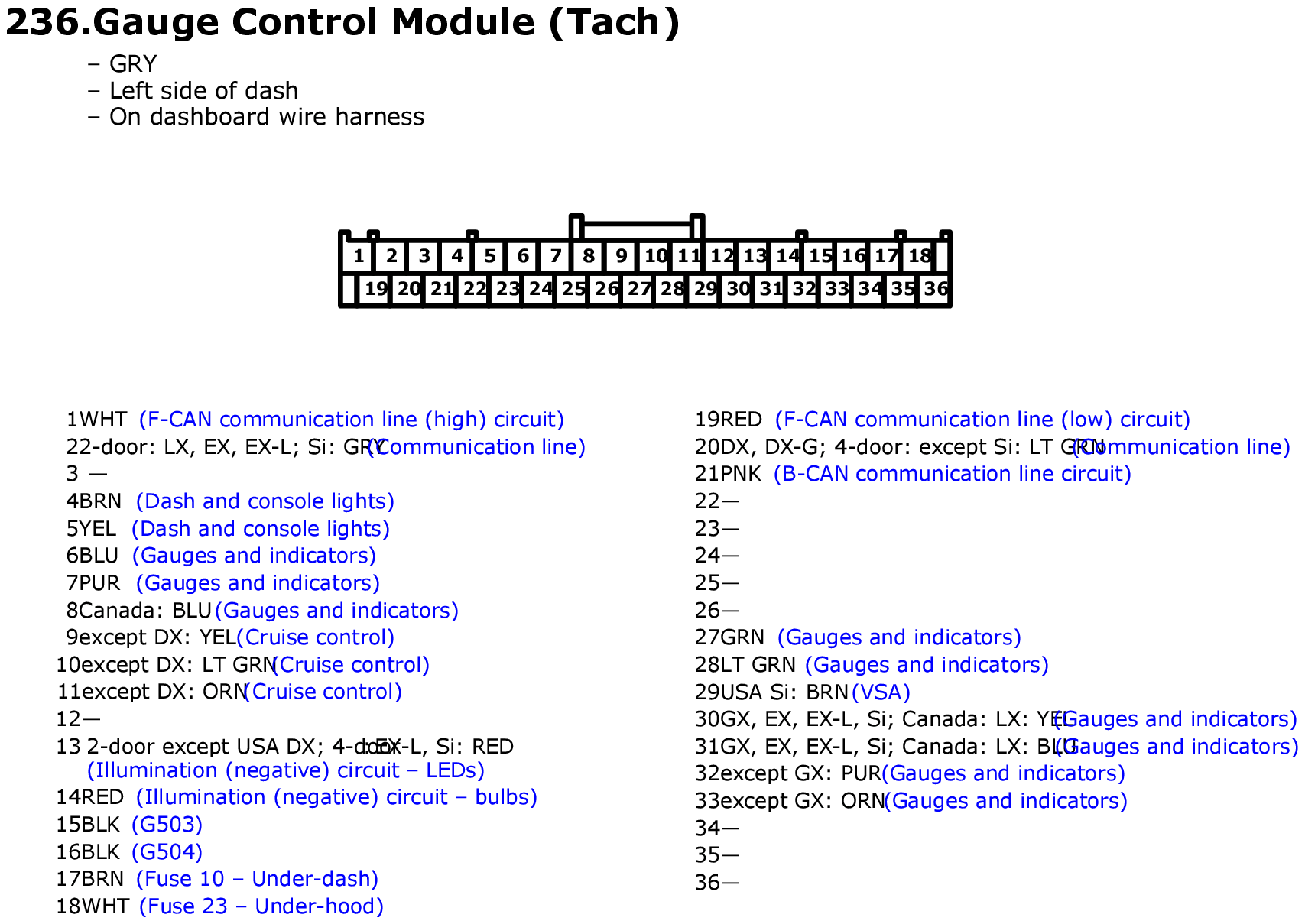

Fig 1: Gauge Control Module (Tach) Connector End View
GHHW1432Courtesy of AMERICAN HONDA MOTOR CO., INC.

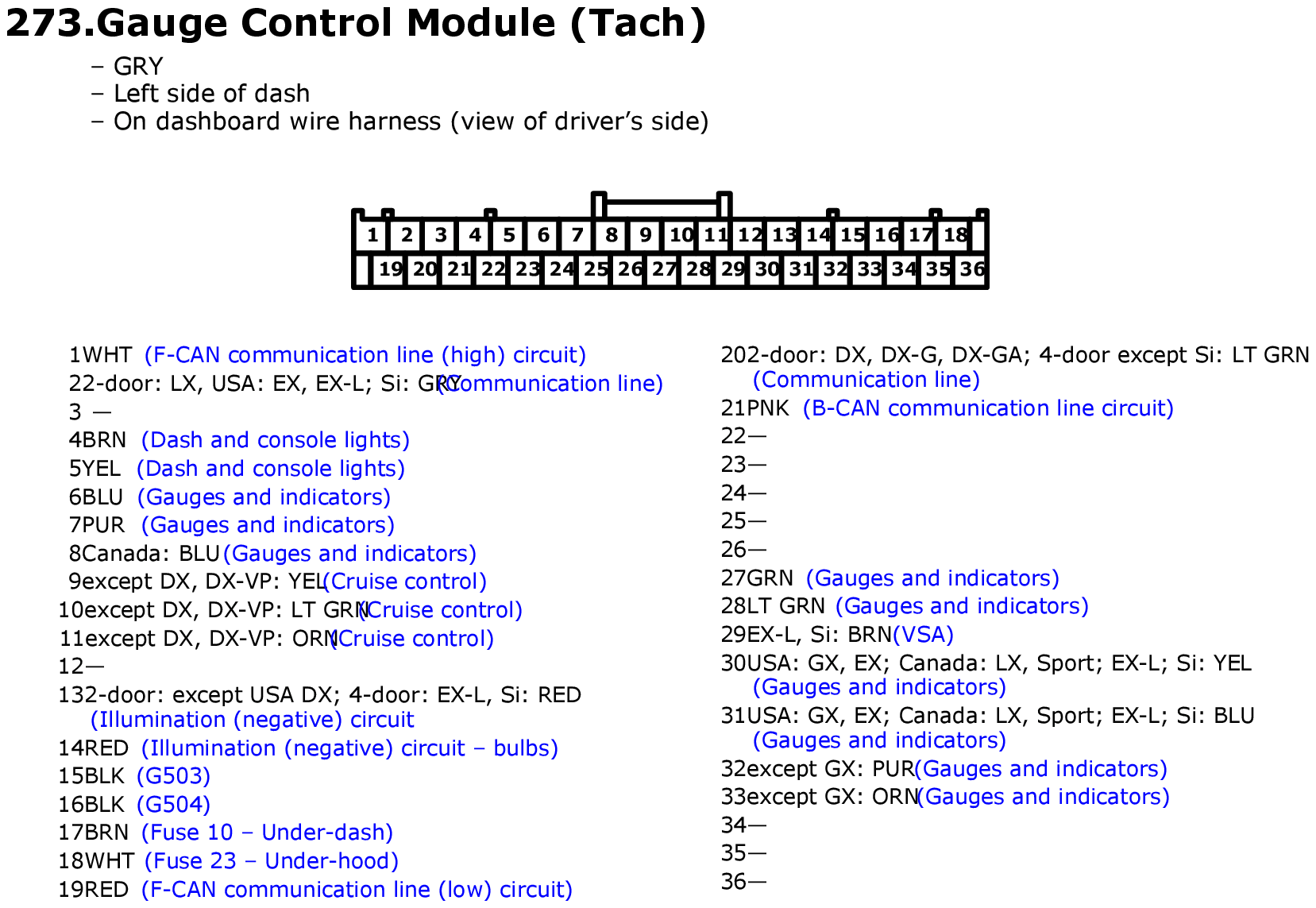

Fig 1: Gauge Control Module (Tach) Connector End View
GHHW1747Courtesy of AMERICAN HONDA MOTOR CO., INC.

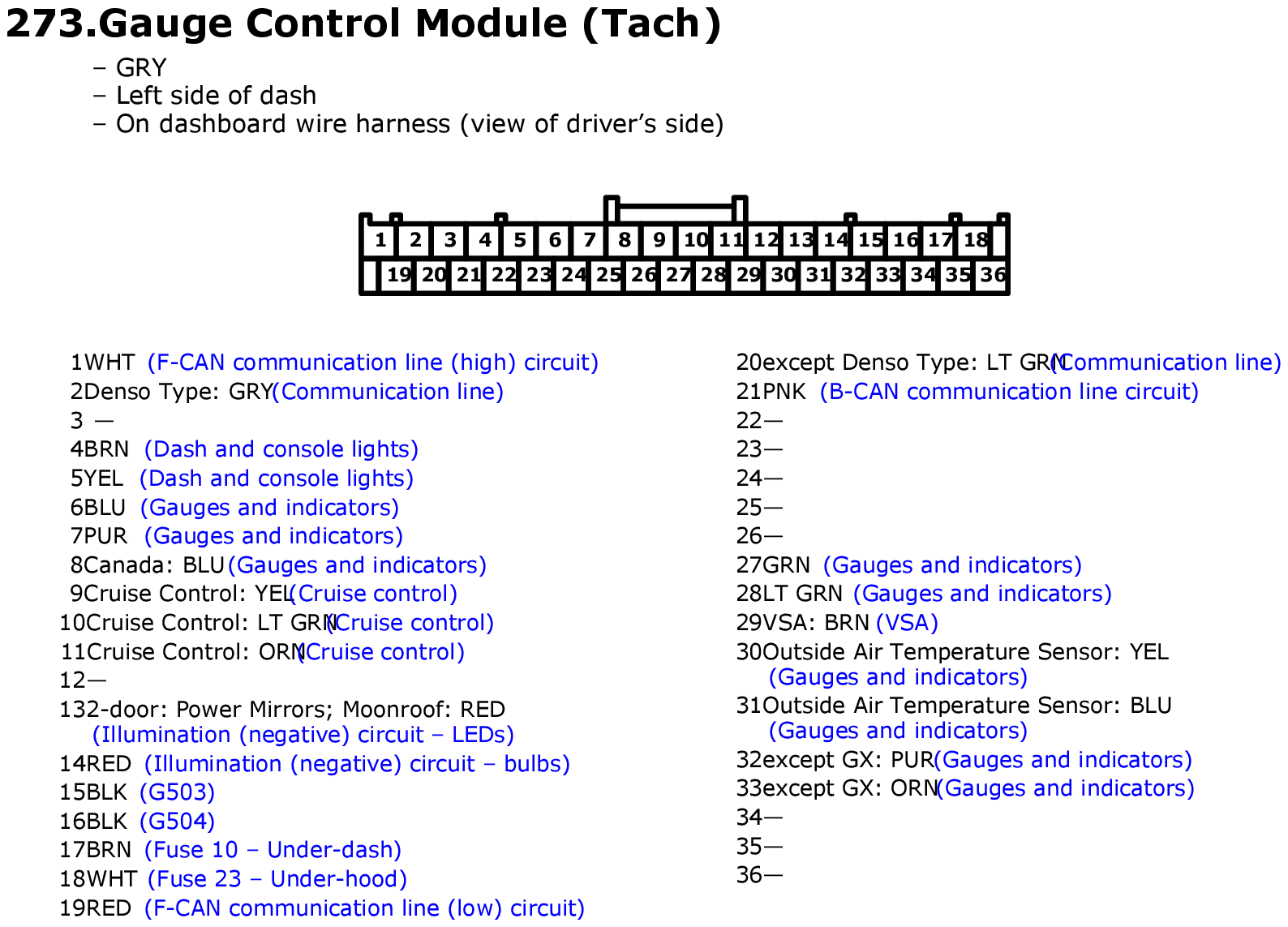

Fig 1: Gauge Control Module (Tach) Connector End View
GHHW2051Courtesy of AMERICAN HONDA MOTOR CO., INC.

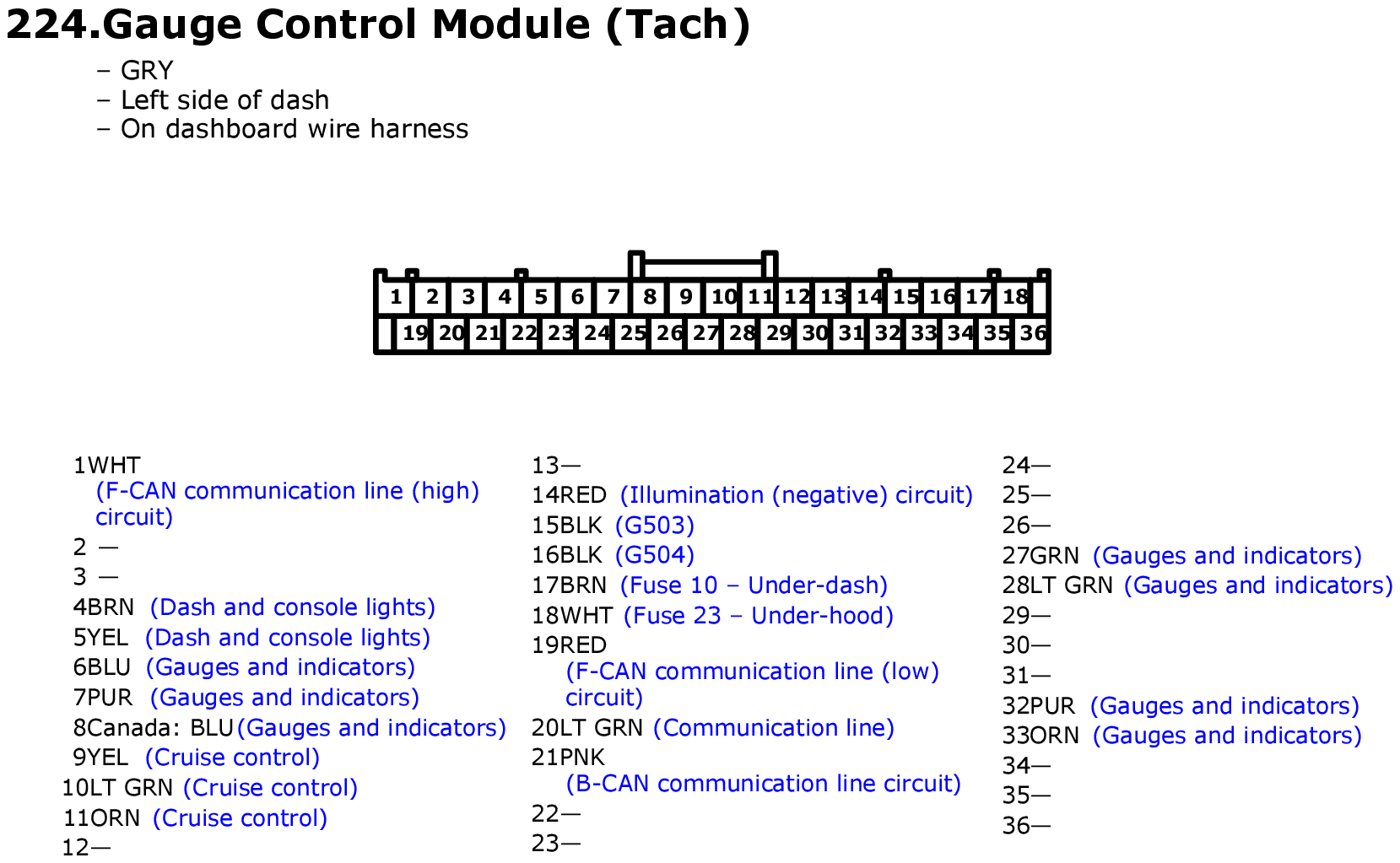

Fig 1: Gauge Control Module (Tach) Connector End View
GHHW2312Courtesy of AMERICAN HONDA MOTOR CO., INC.

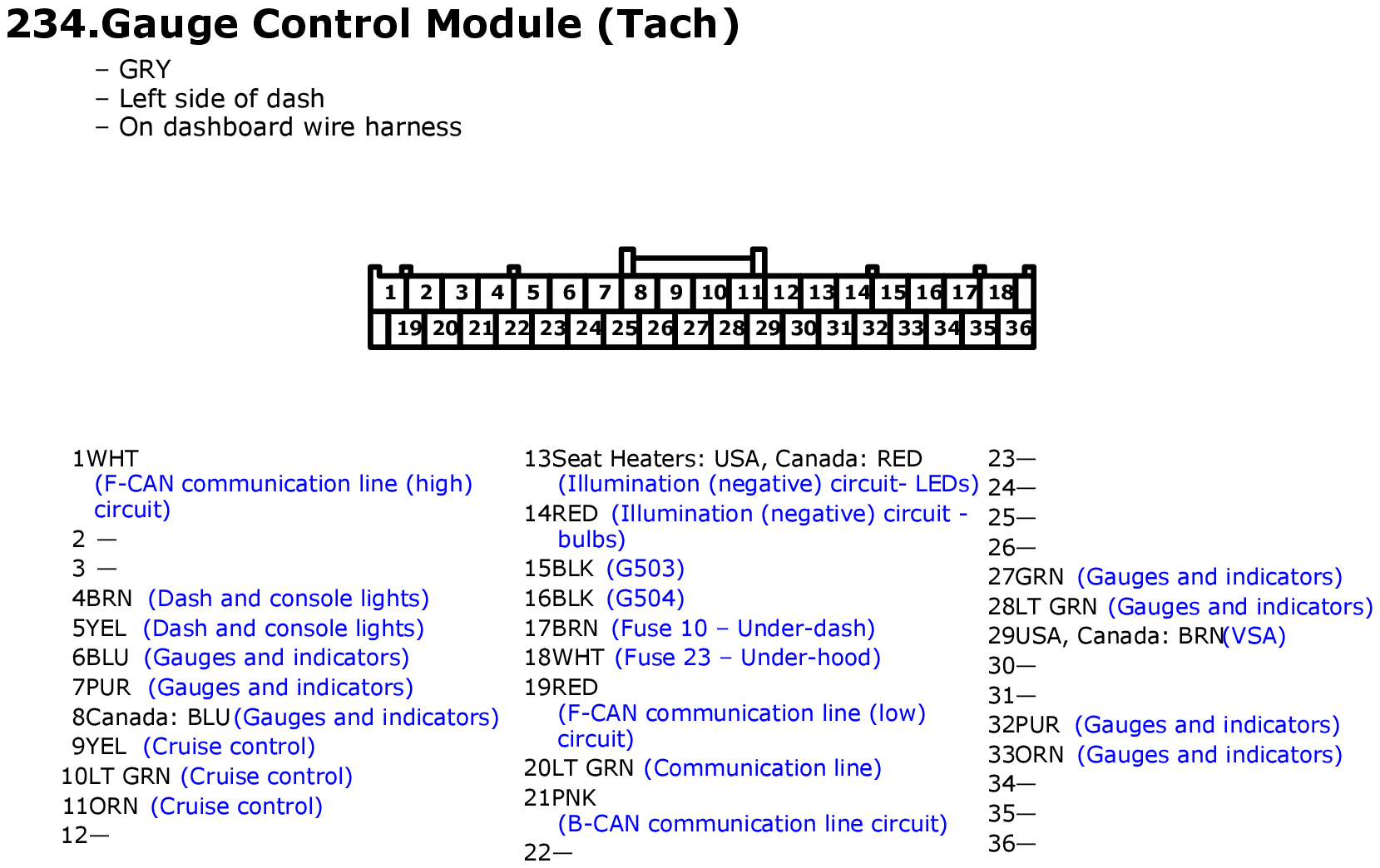

Fig 1: Gauge Control Module (Tach) Connector End View
GHHW2572Courtesy of AMERICAN HONDA MOTOR CO., INC.
