Climate Control Unit Connector End View

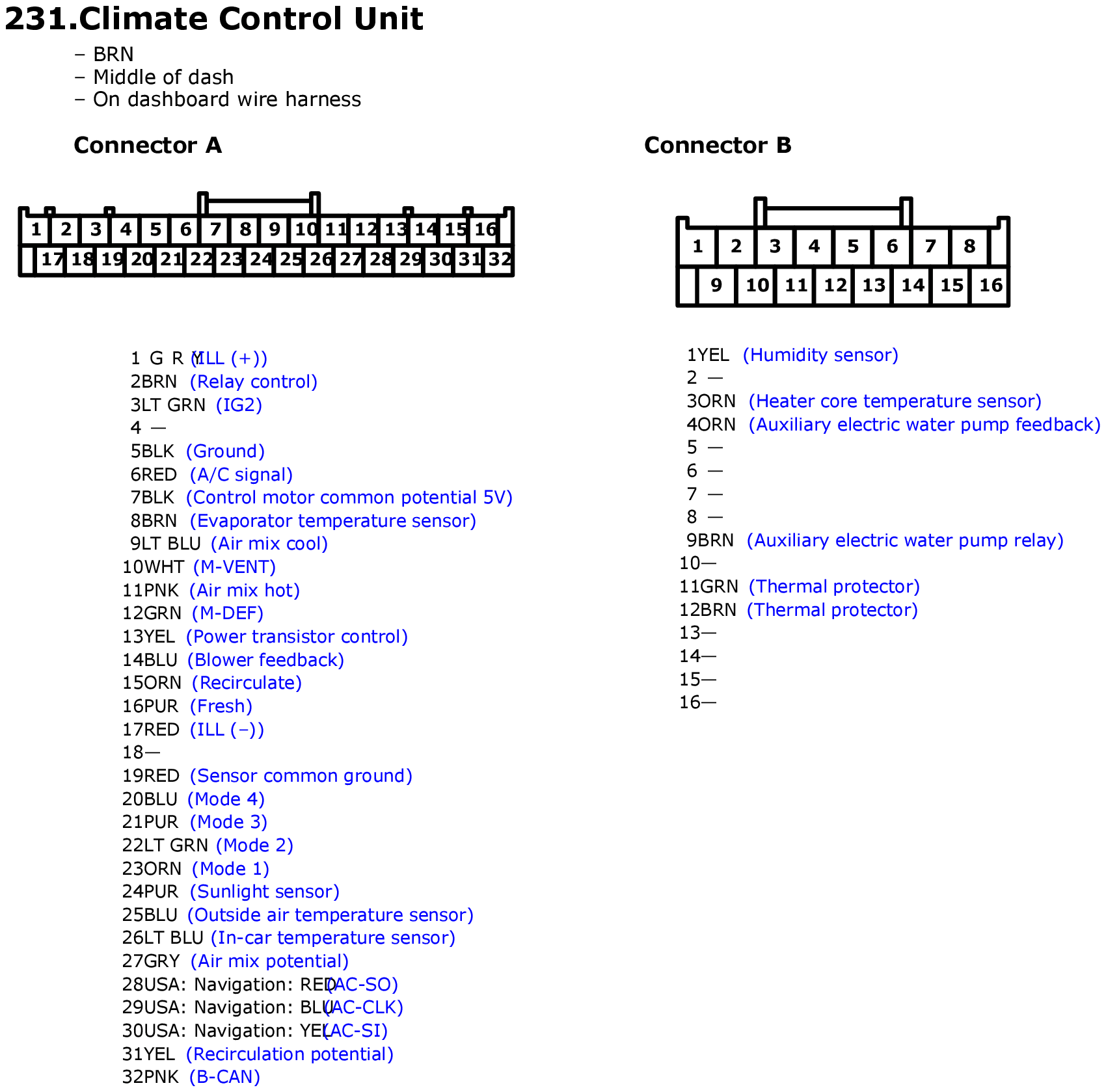

Fig 1: Climate Control Unit Connector End View
GHHW2319Courtesy of AMERICAN HONDA MOTOR CO., INC.

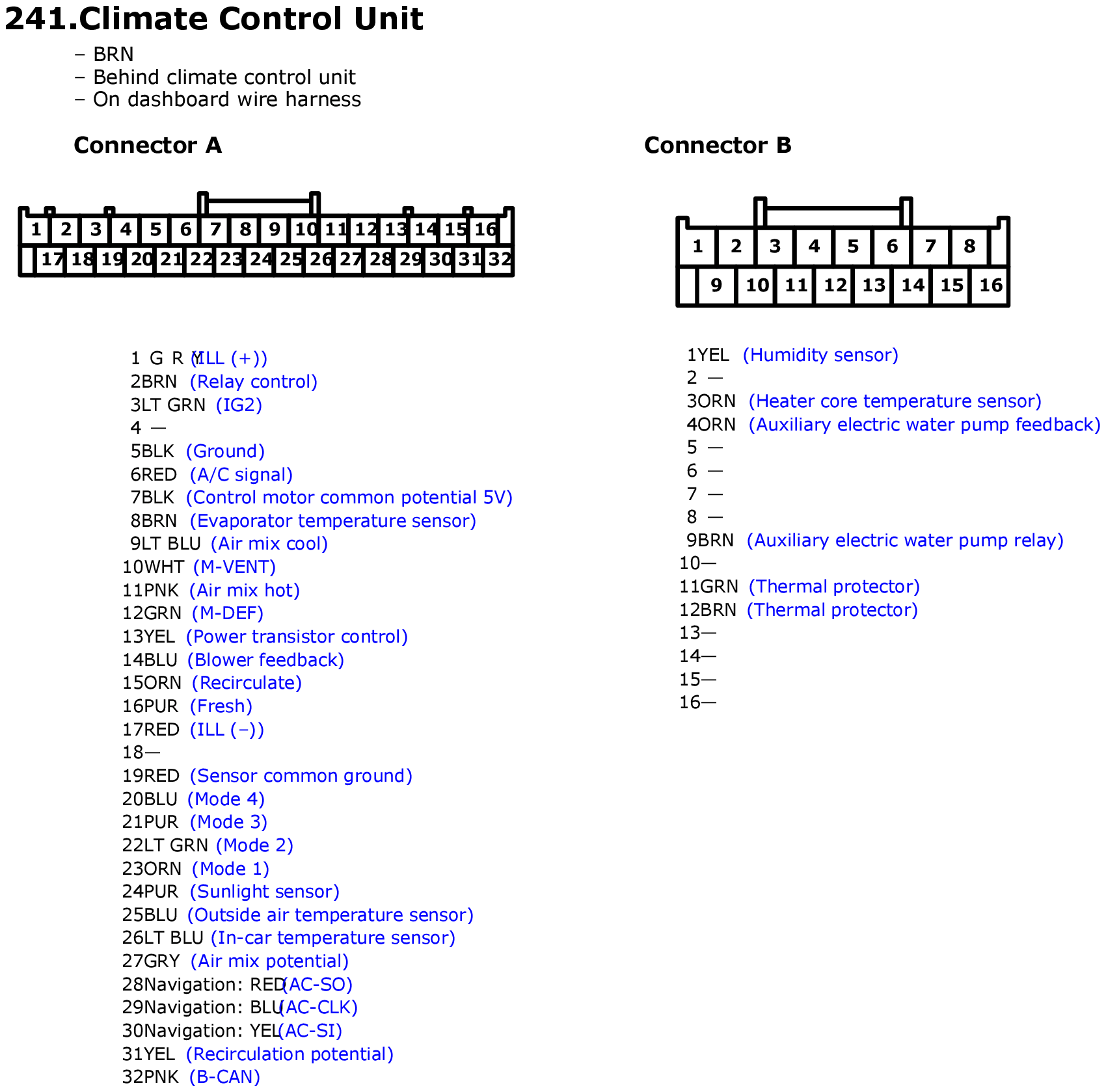

Fig 1: Climate Control Unit Connector End View
GHHW2579Courtesy of AMERICAN HONDA MOTOR CO., INC.
