Component Location Index

NOTE: Refer to the IDLE CONTROL SYSTEM (SUPPLEMENT) (GX) article for additional information for the GX model.

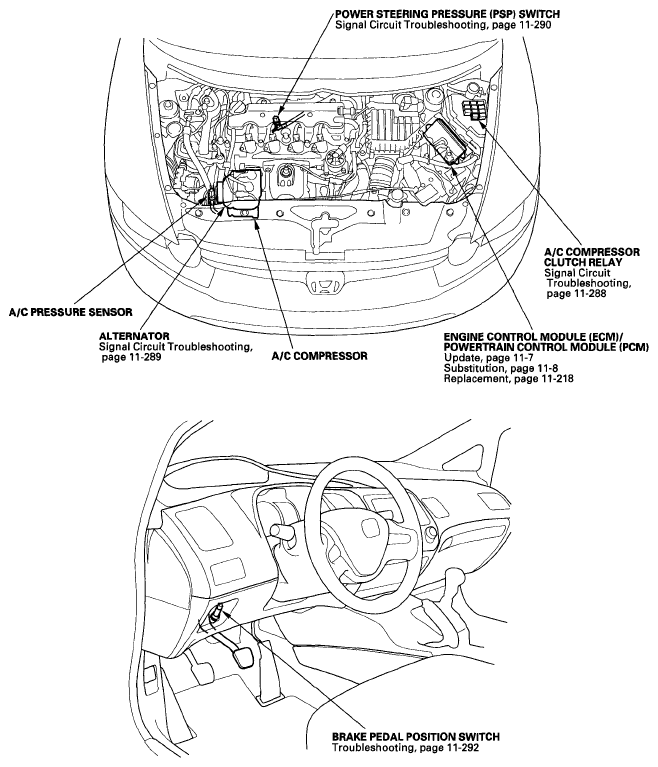

Fig 1: Identifying Idle Control System Component Location
G04665429Courtesy of AMERICAN HONDA MOTOR CO., INC.
