Intake Air Bypass Control Thermal Valve Replacement
- Remove the intake manifold cover (see step 5 under
REMOVAL
).
- Remove the air intake duct.

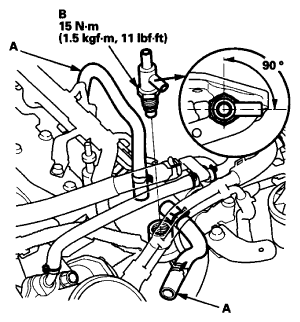

- Disconnect the hoses (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the intake air bypass control thermal valve (B).
- Install the parts in the reverse order of removal.
NOTE:
Position the valve as shown.
