Air Cleaner Removal/Installation

Do the battery removal procedure (see REMOVAL ).
Disconnect the MAF sensor/IAT sensor connector (A).

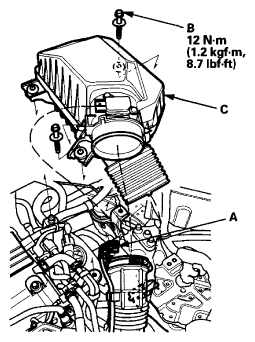

Fig 1: Maf Sensor/Iat Sensor Connector And Air Cleaner With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts (B).
Remove the air cleaner (C).
Install the parts in the reverse order of removal.
Do the battery installation procedure (see INSTALLATION ).
