Oil Pump Removal: Notes

Turn the crankshaft pulley so its top dead center (TDC) mark (A) lines up with the pointer (B).

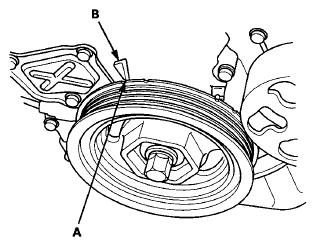

Fig 1: Identifying Crankshaft Pulley Pointer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the oil pan (see OIL PAN REMOVAL ).
Remove and discard the oil pump chain tensioner.

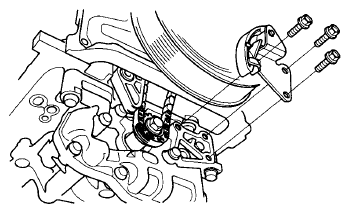

Fig 2: Identifying Oil Pump Chain Tensioner And Oil Pan
Courtesy of AMERICAN HONDA MOTOR CO., INC.
To hold the rear balancer shaft, insert a 6 mm pin driver (A) into the maintenance hole in the lower balancer shaft holder and through the rear balancer shaft.

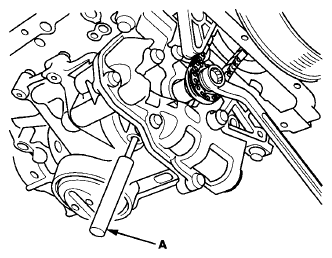

Fig 3: Holding Rear Balancer Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Loosen the oil pump sprocket mounting bolt.
Remove the oil pump sprocket (A), then remove the oil pump (B).

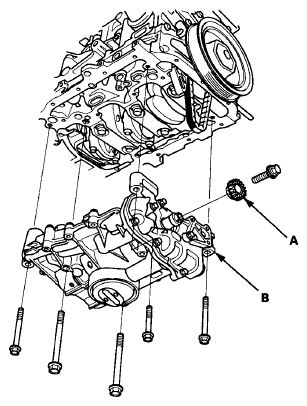

Fig 4: Identifying Oil Pump Sprocket
