Component Locations

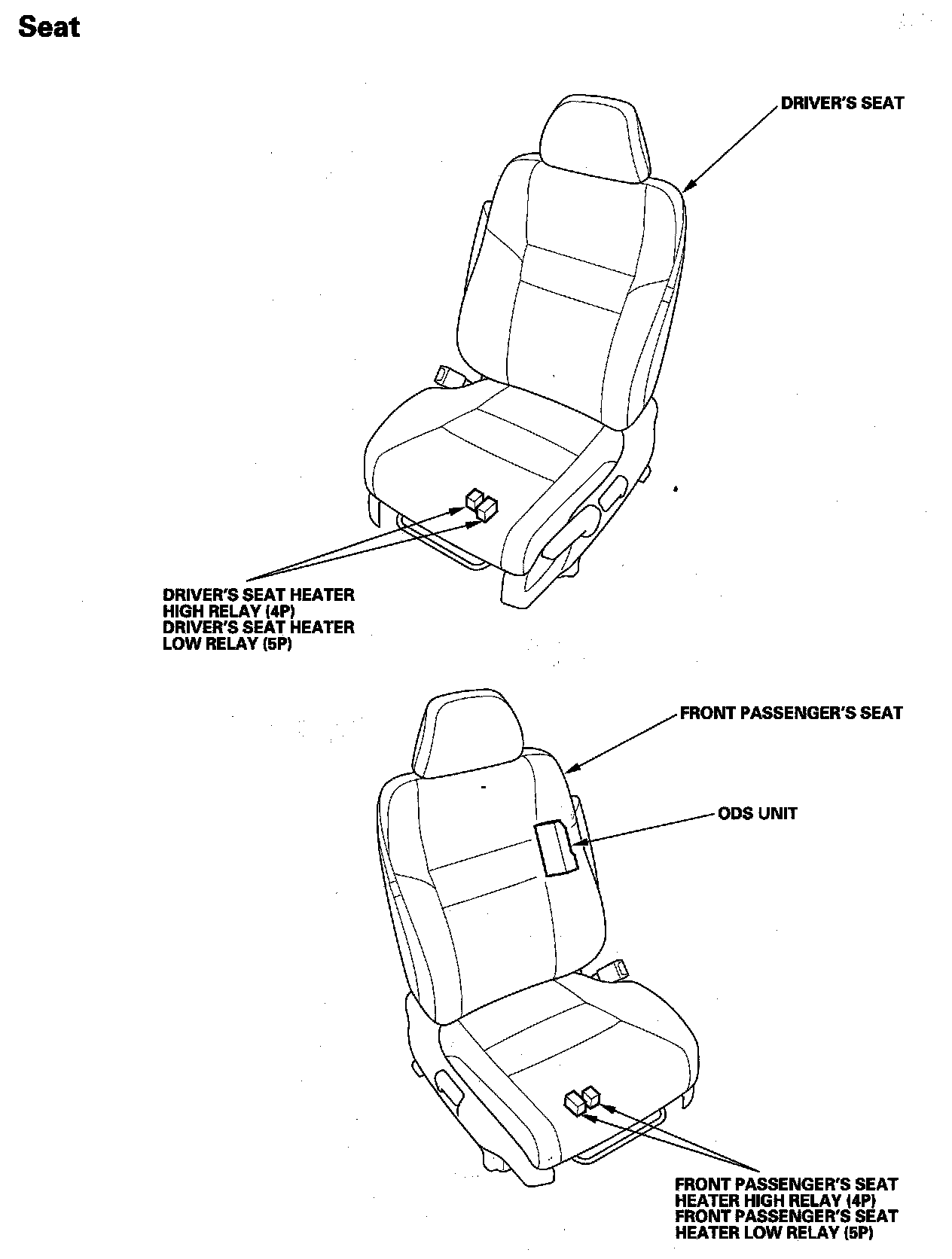

Relay And Control Unit Locations Seat:

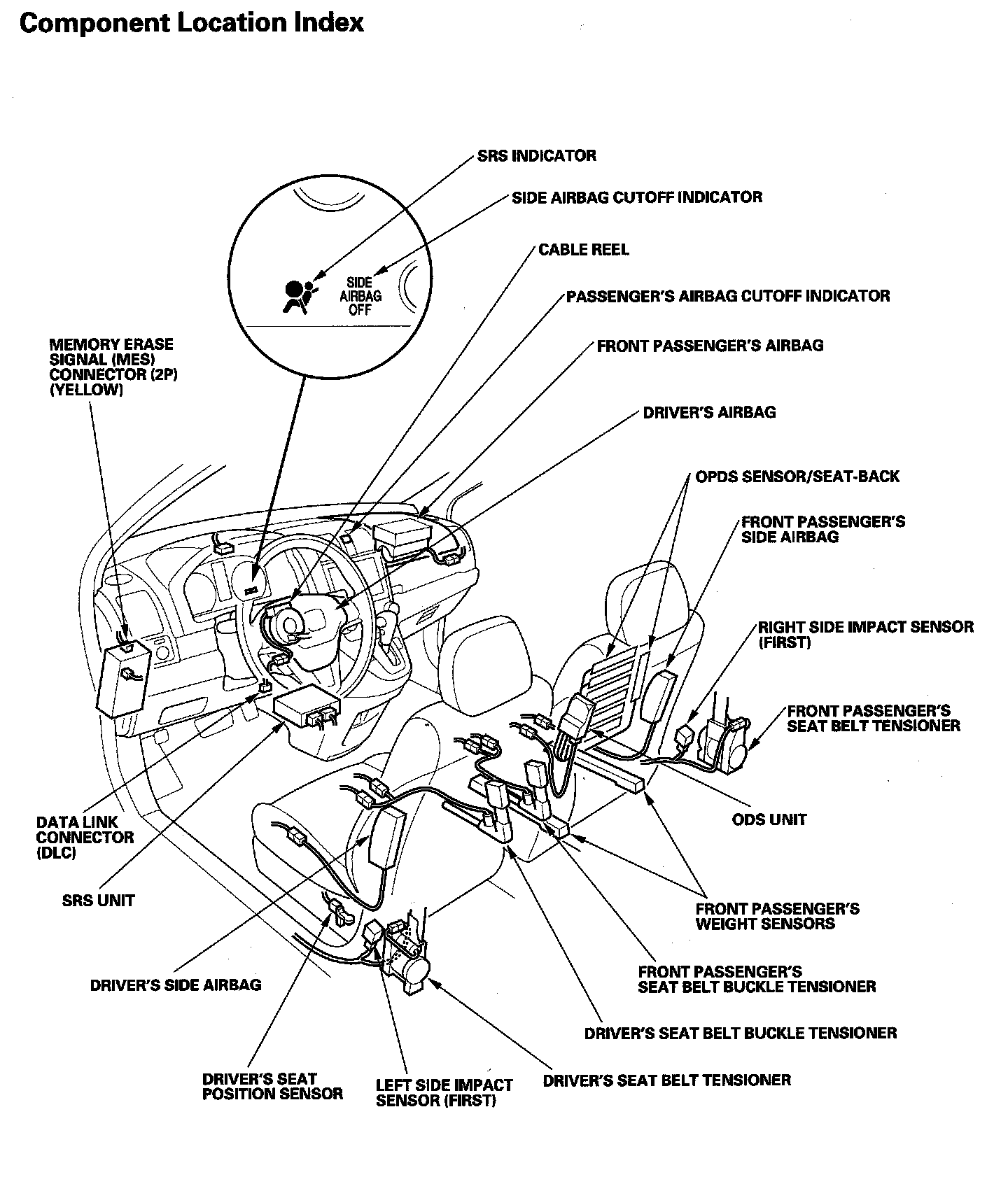

SRS Component Location Index:

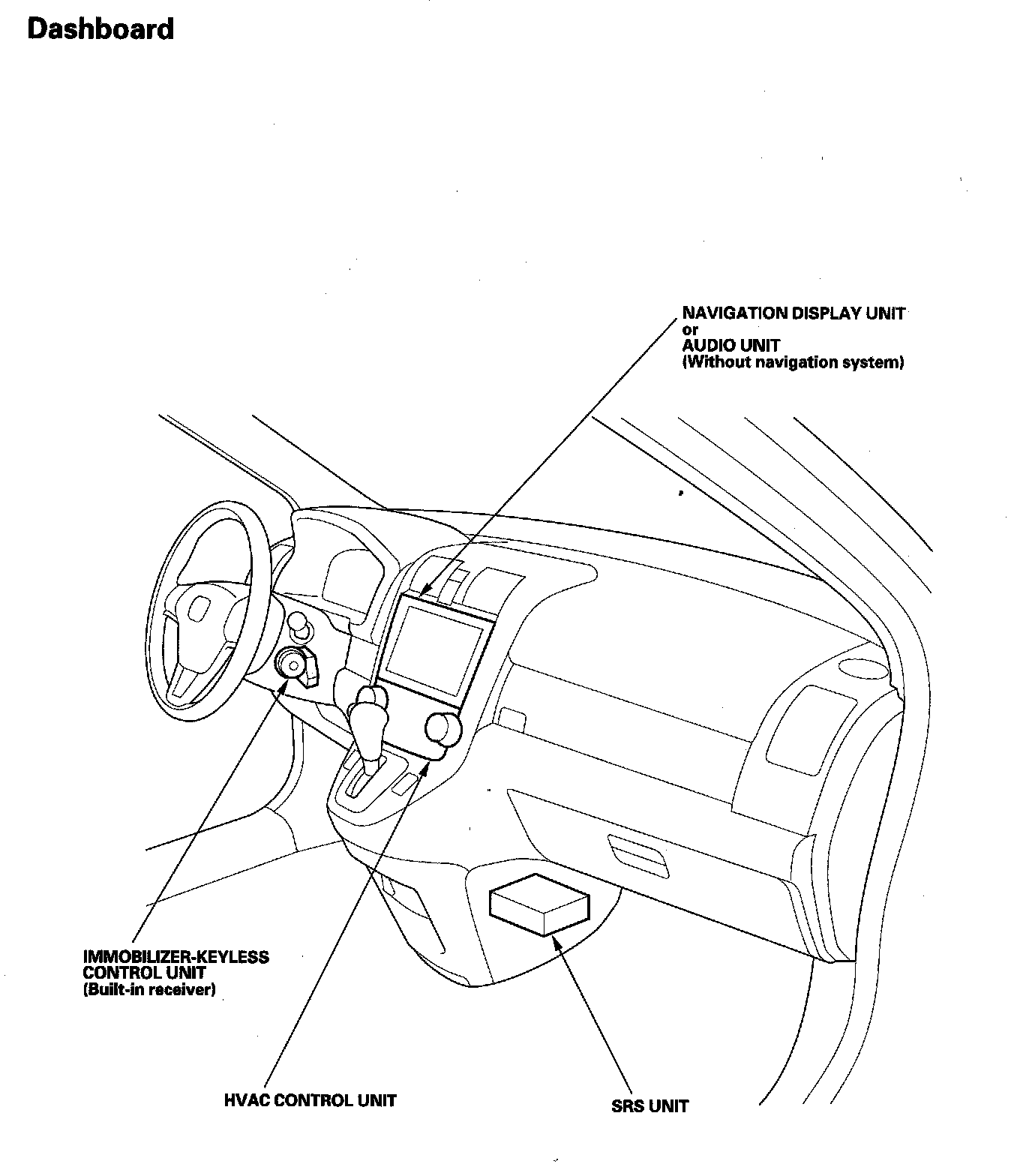

Relay And Control Unit Locations Dashboard:
