PCM A/T Control System

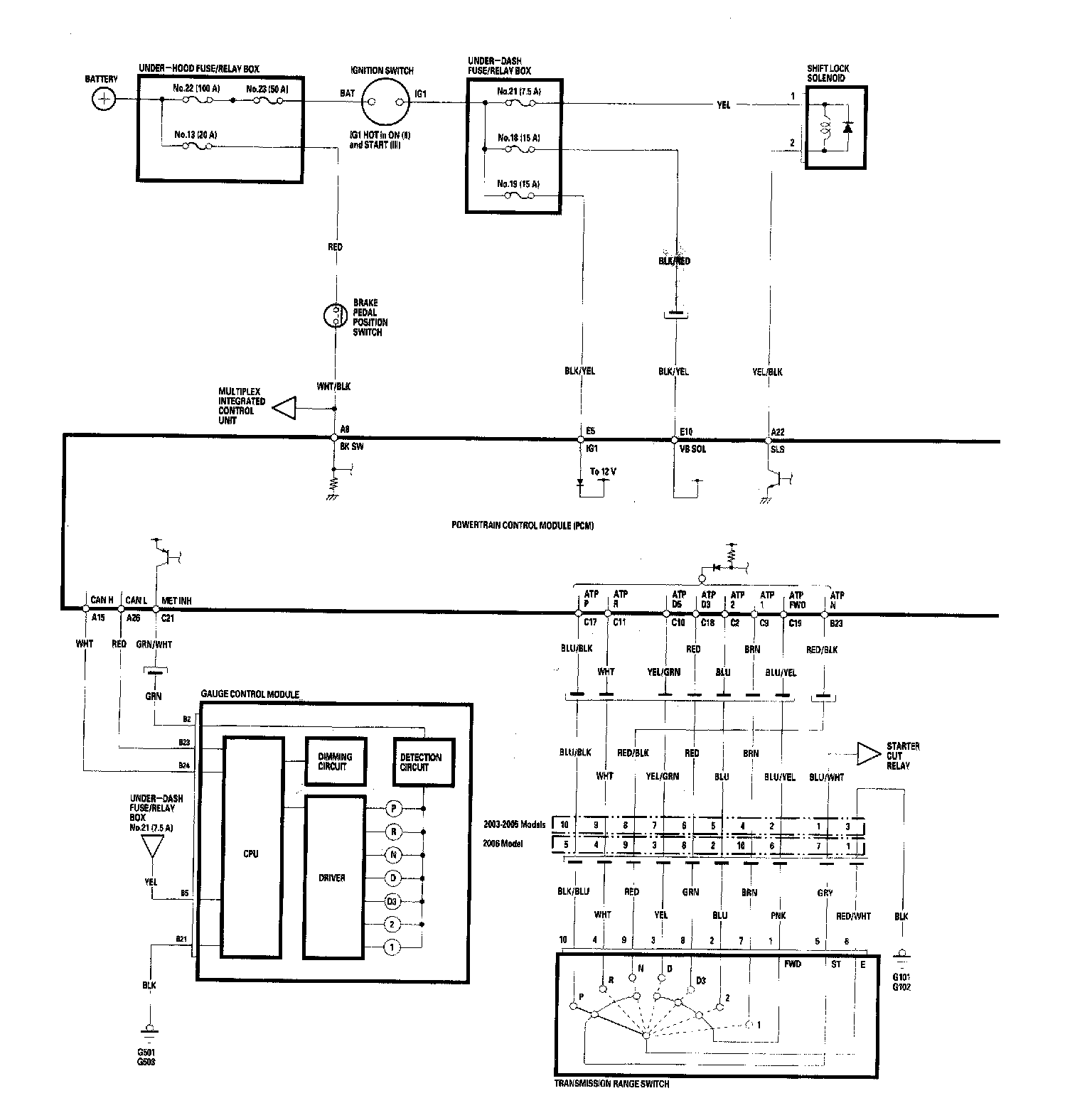

PCM A/T Control System Circuit Diagram:

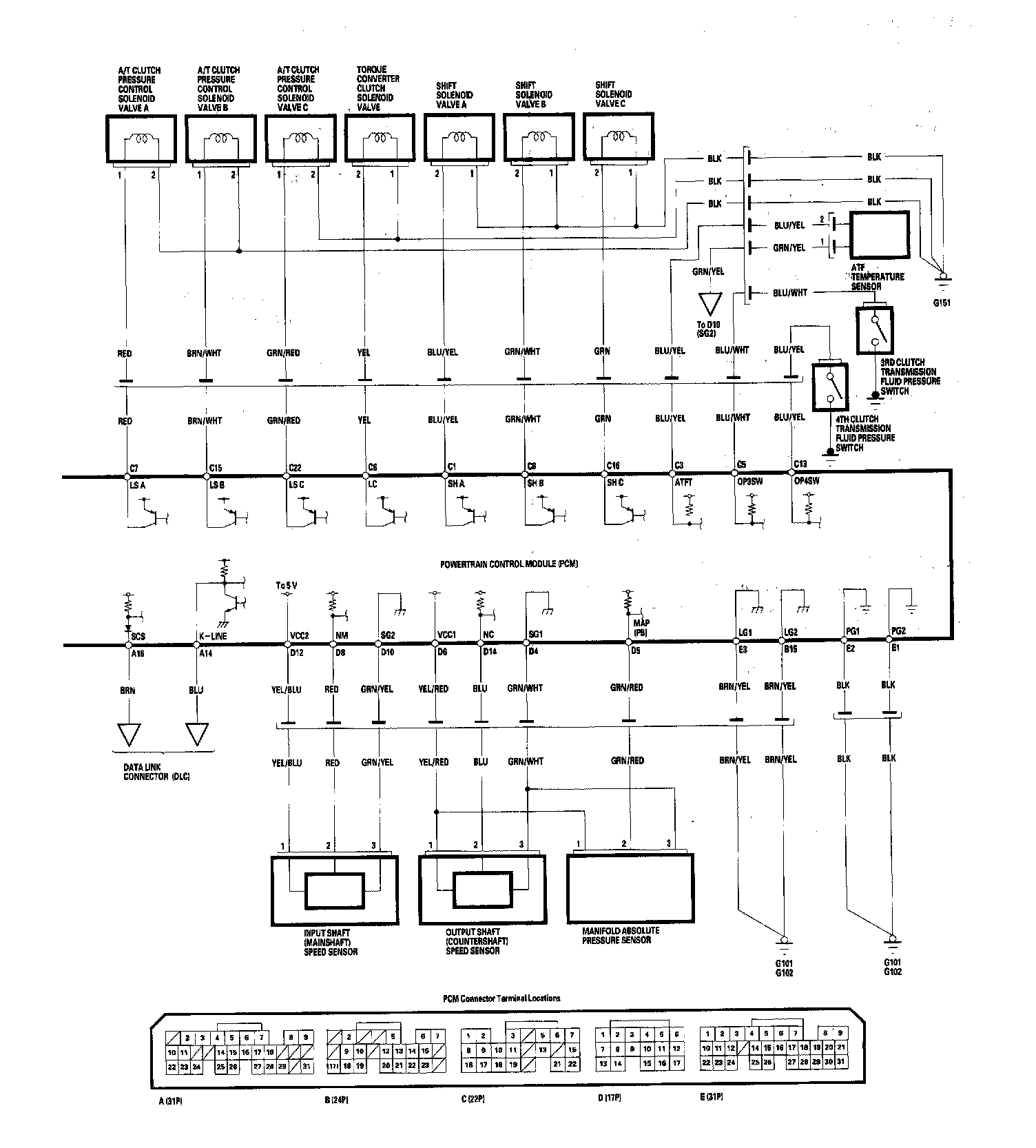

PCM A/T Control System Circuit Diagram:
