Multiple Junction Connector

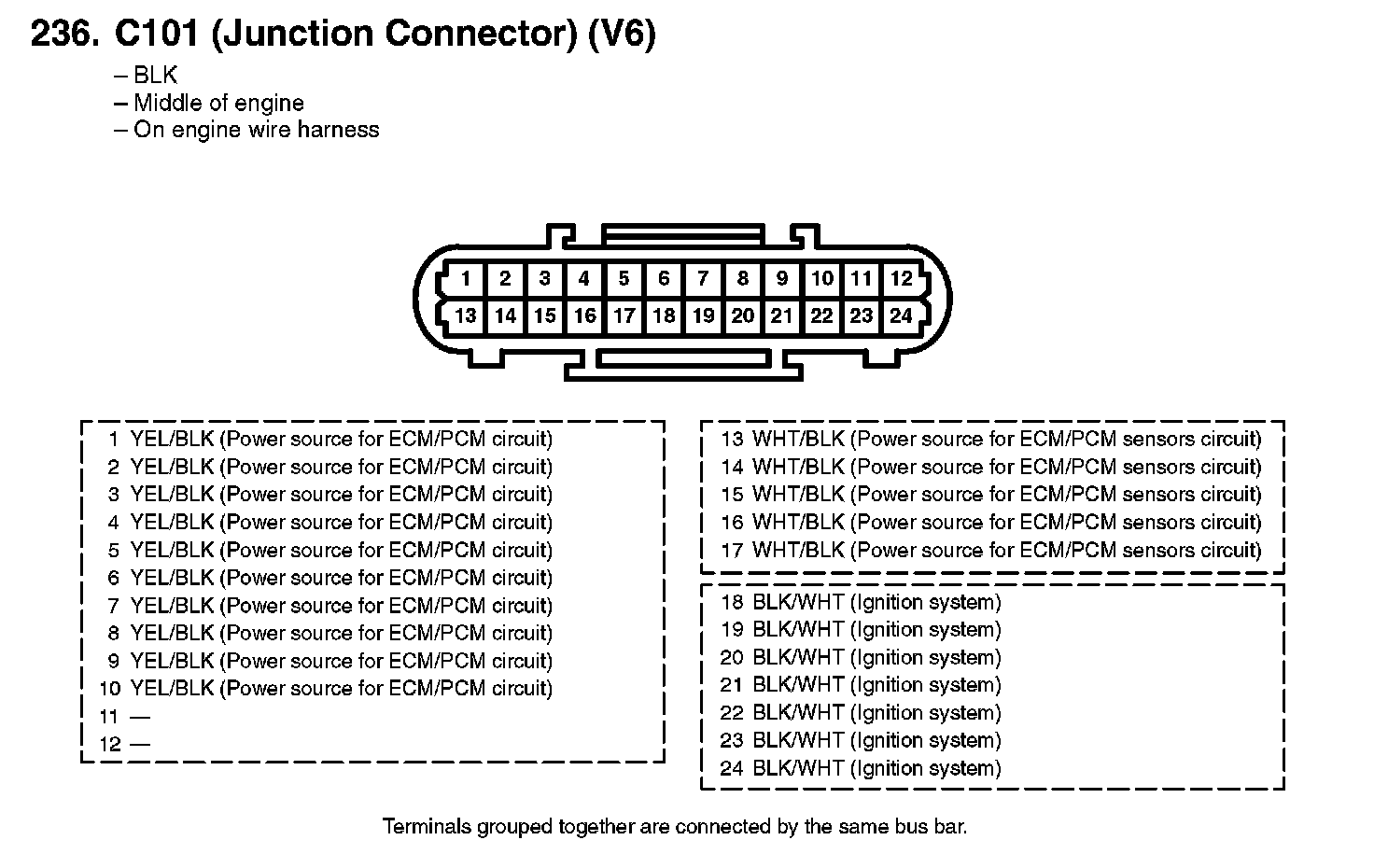

236. C101 (Junction Connector) (V6):

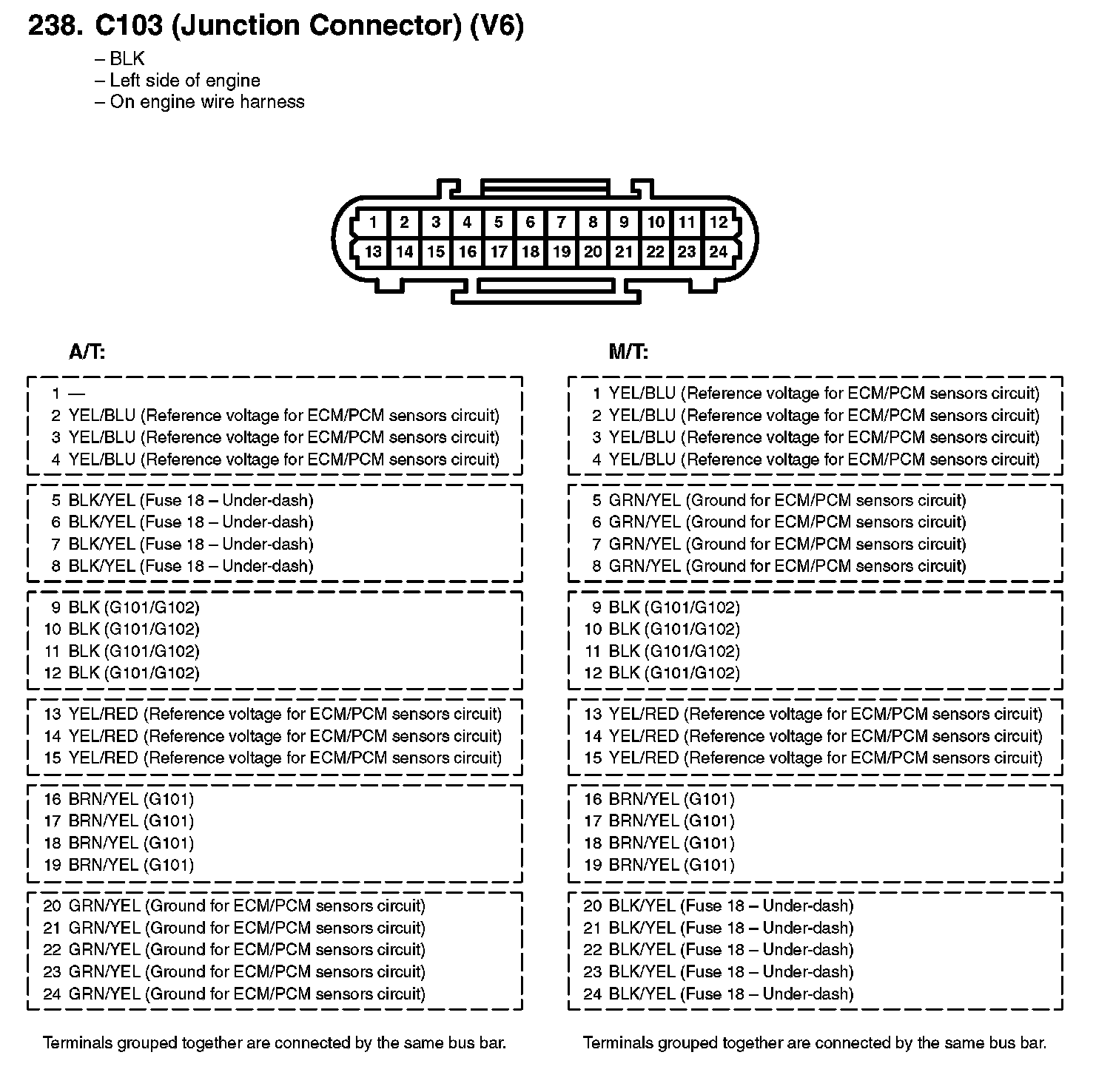

238. C103 (Junction Connector) (V6):



241. C404 (Junction Connector):



242. C405 (Junction Connector):



243. C406 (Junction Connector):



244. C554 (Junction Connector):



245. C555 (Junction Connector):



246. C556 (Junction Connector):



247. C557 (Junction Connector):
