Engine Control Module: Locations

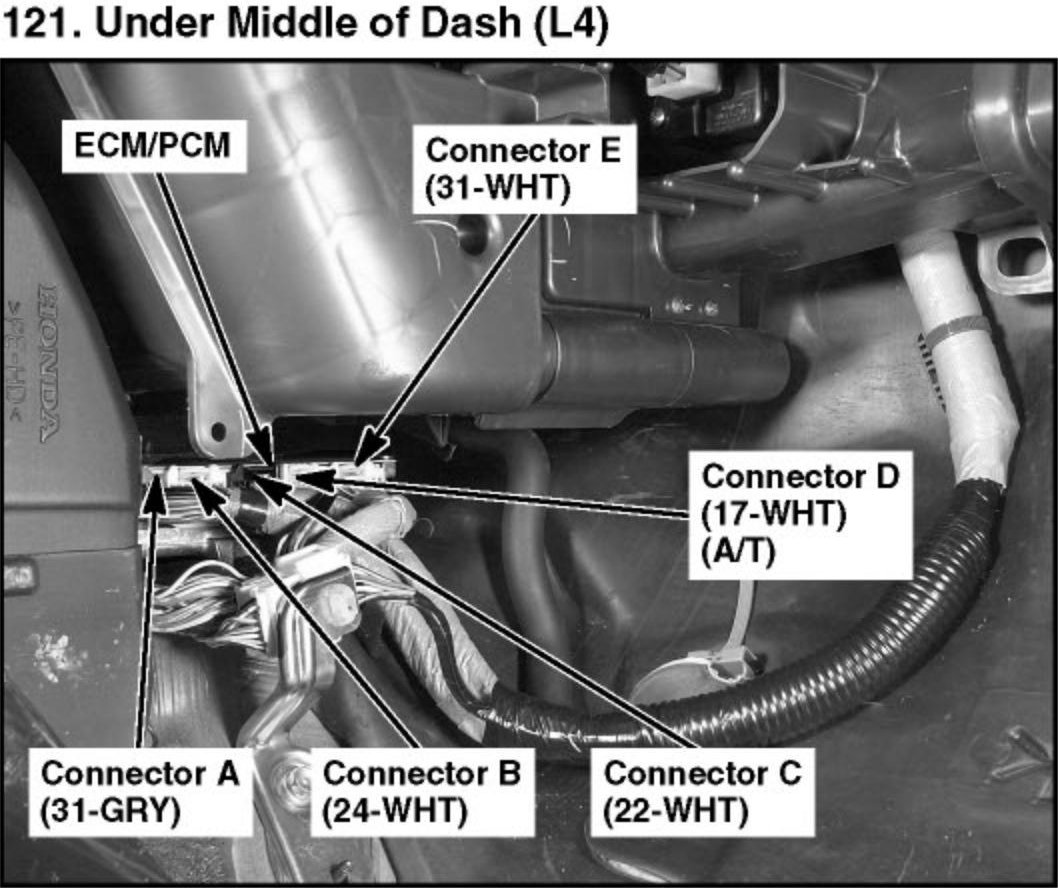

121. Under Middle of Dash (L4):

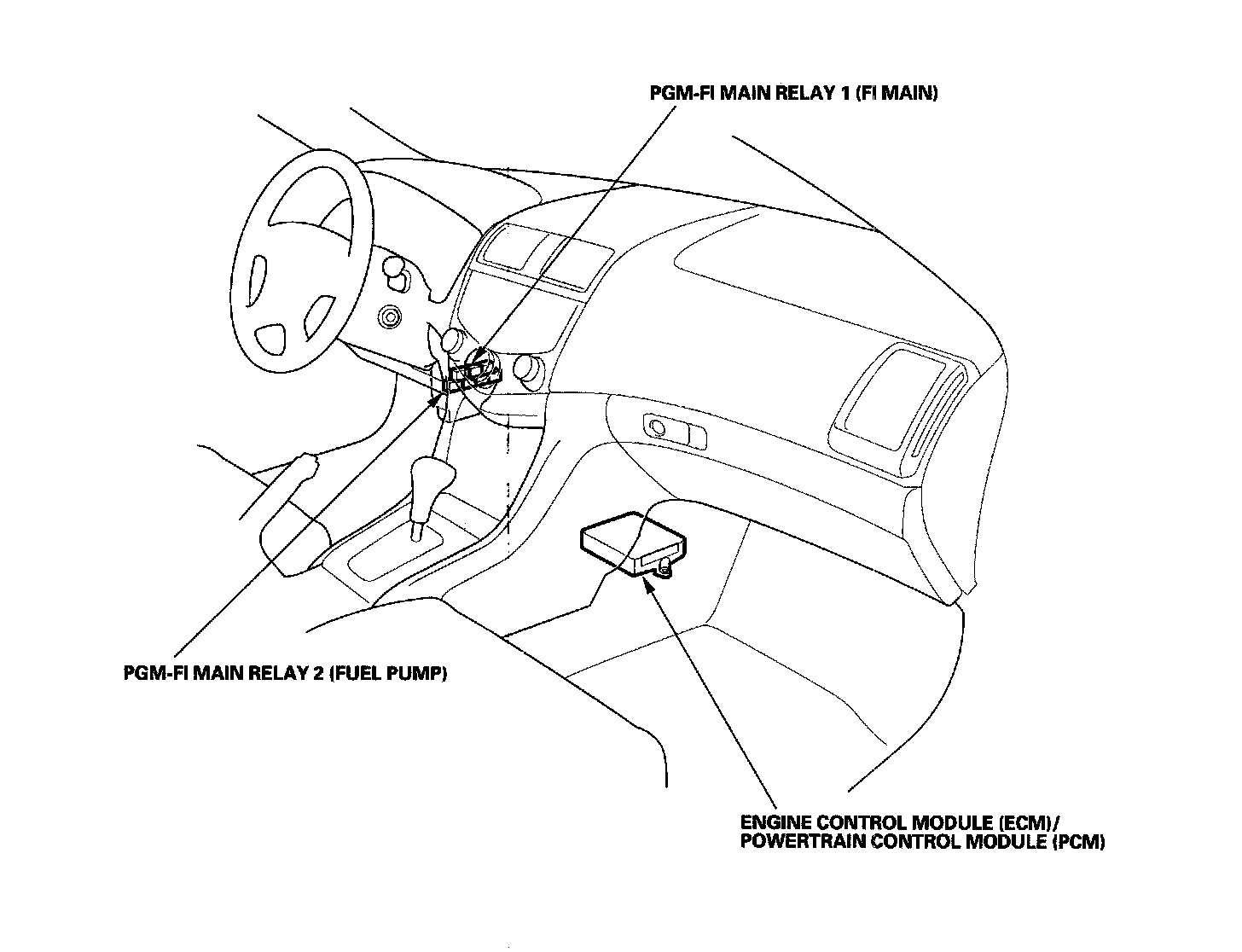

PGM-FI System Component Location Index:



Fuel Supply System Component Location Index:

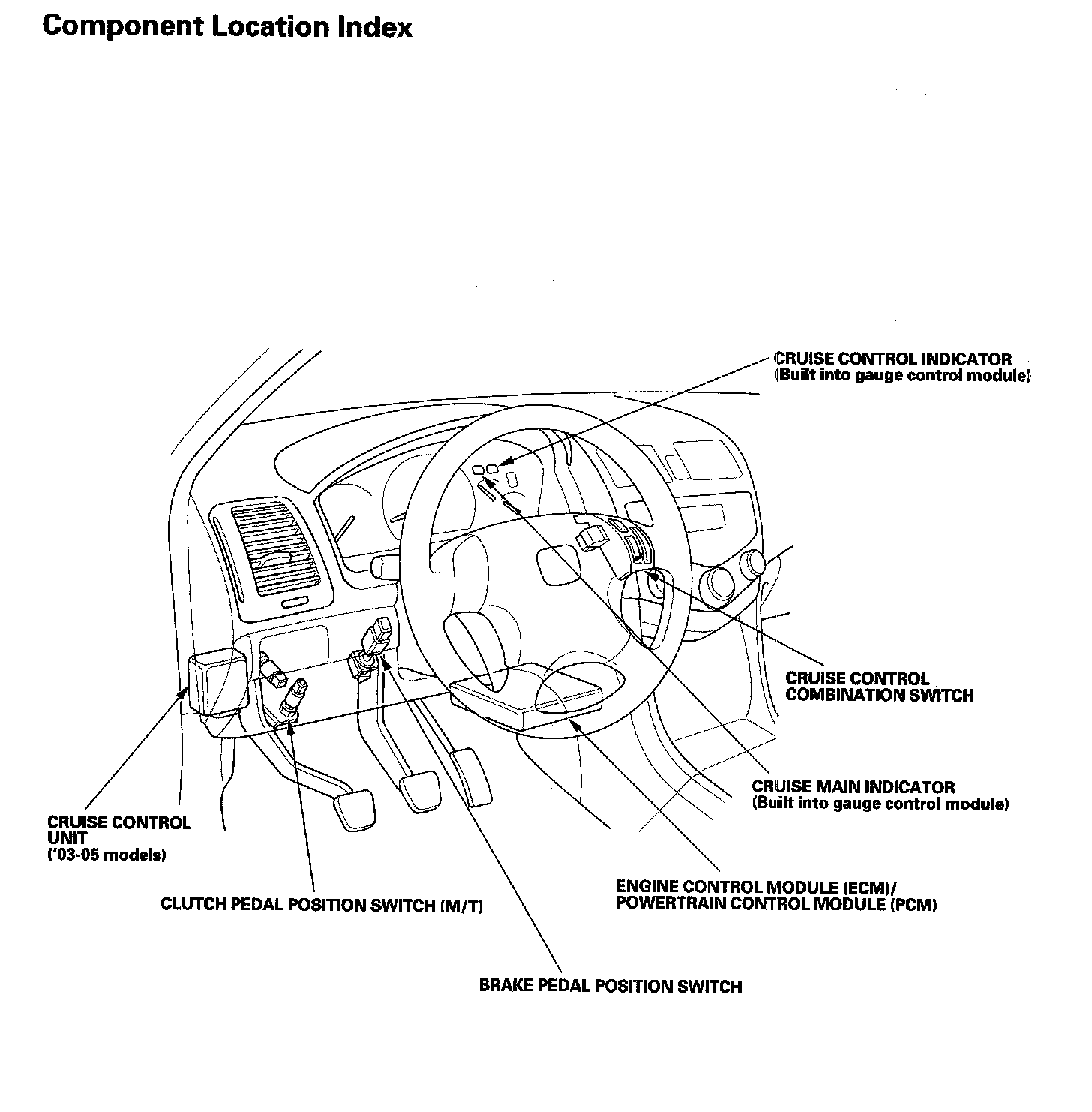

Cruise Control Component Location Index:

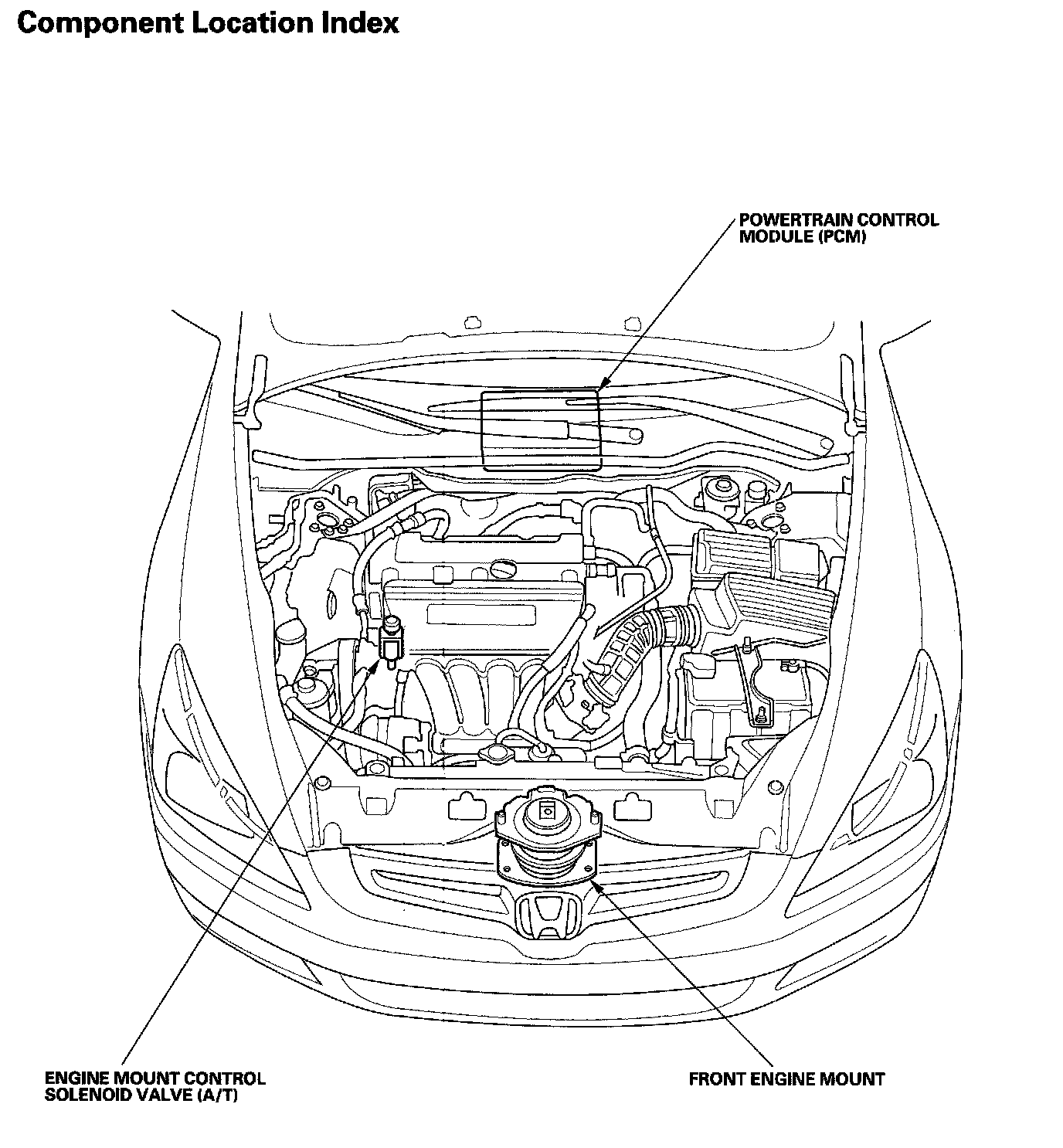

Engine Mount Control System Component Location Index:

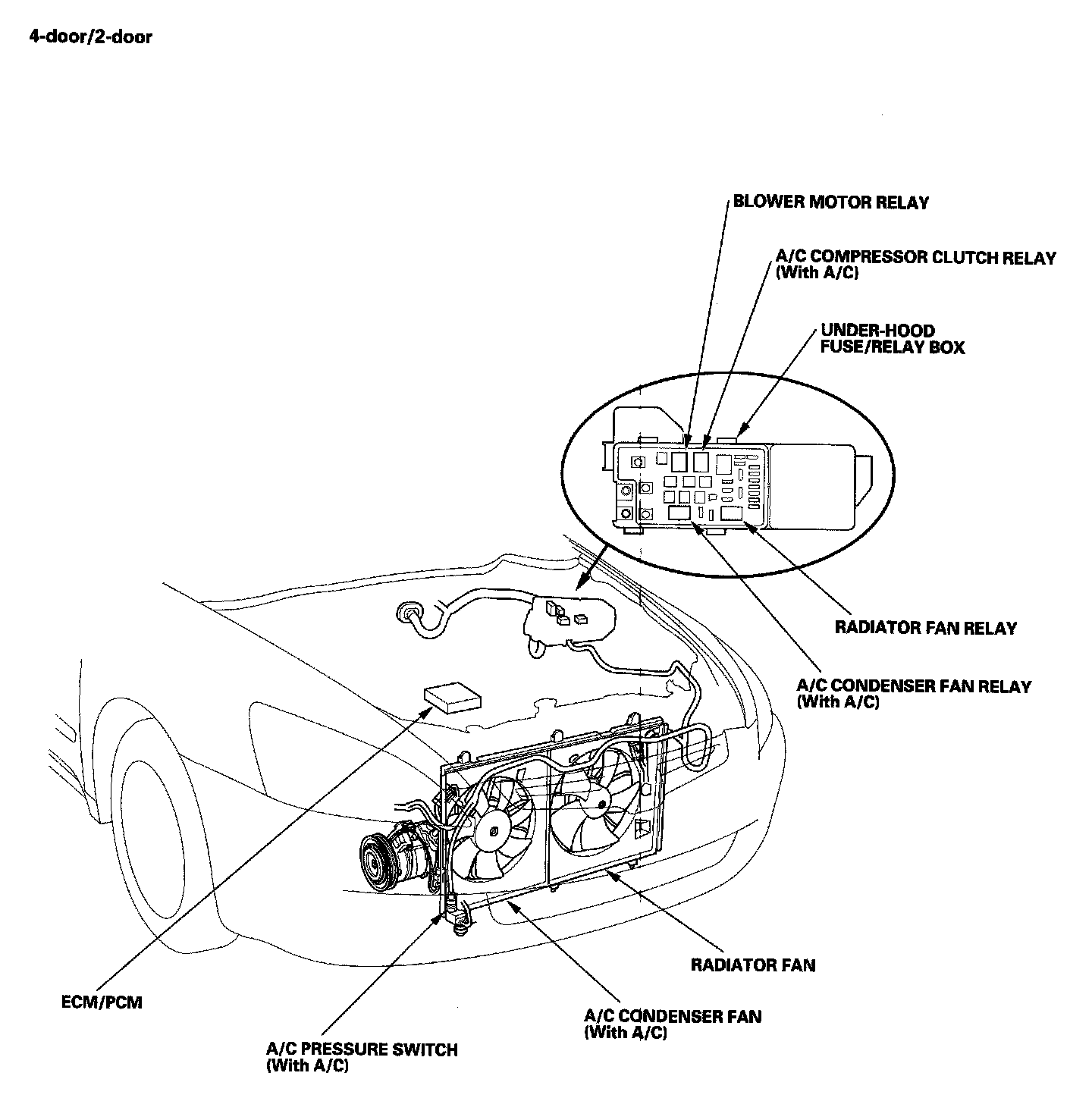

Heating/Air Conditioning Component Location Index:



Relay And Control Unit Locations Dashboard:

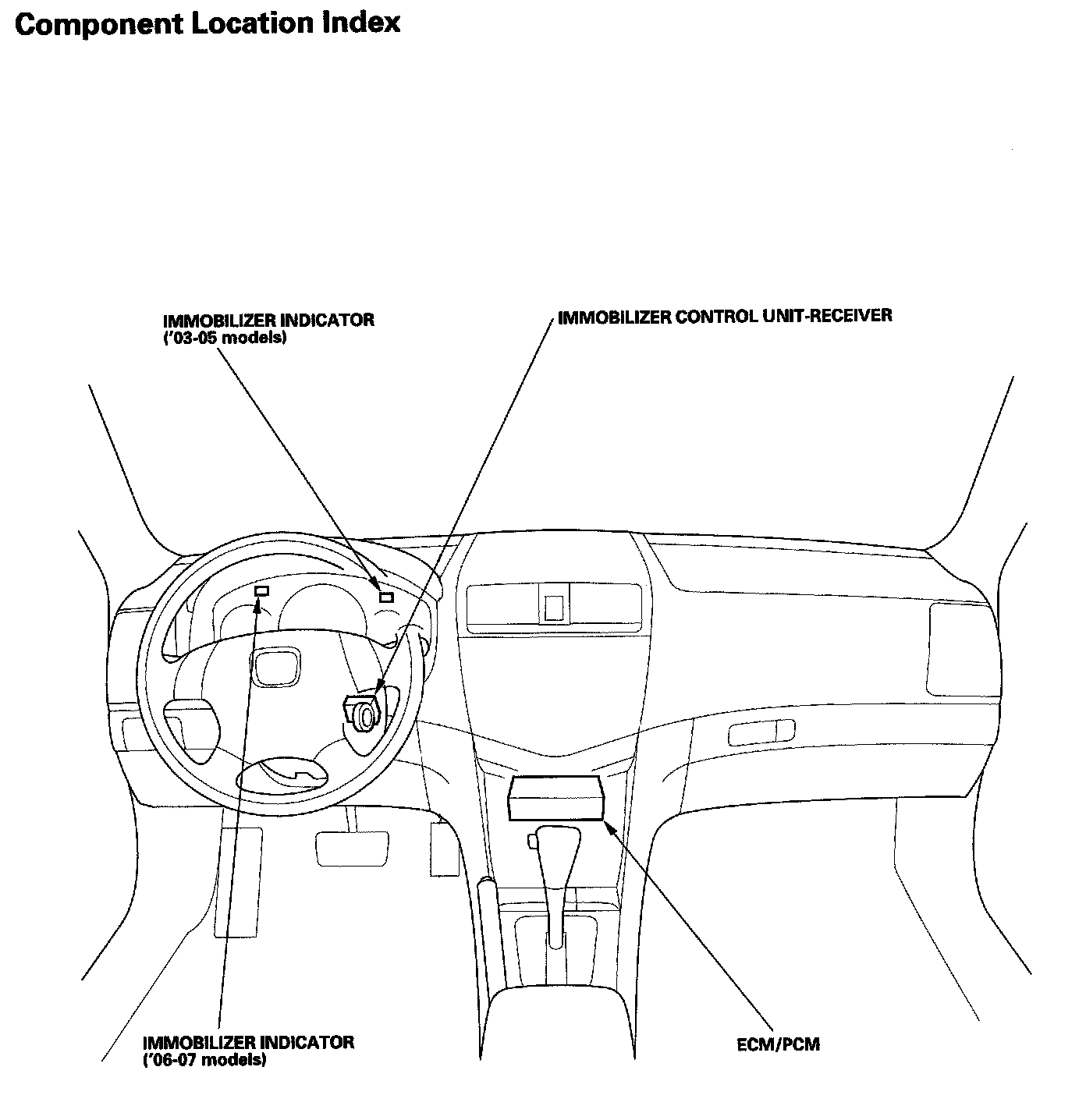

Immobilizer System Component Location Index:

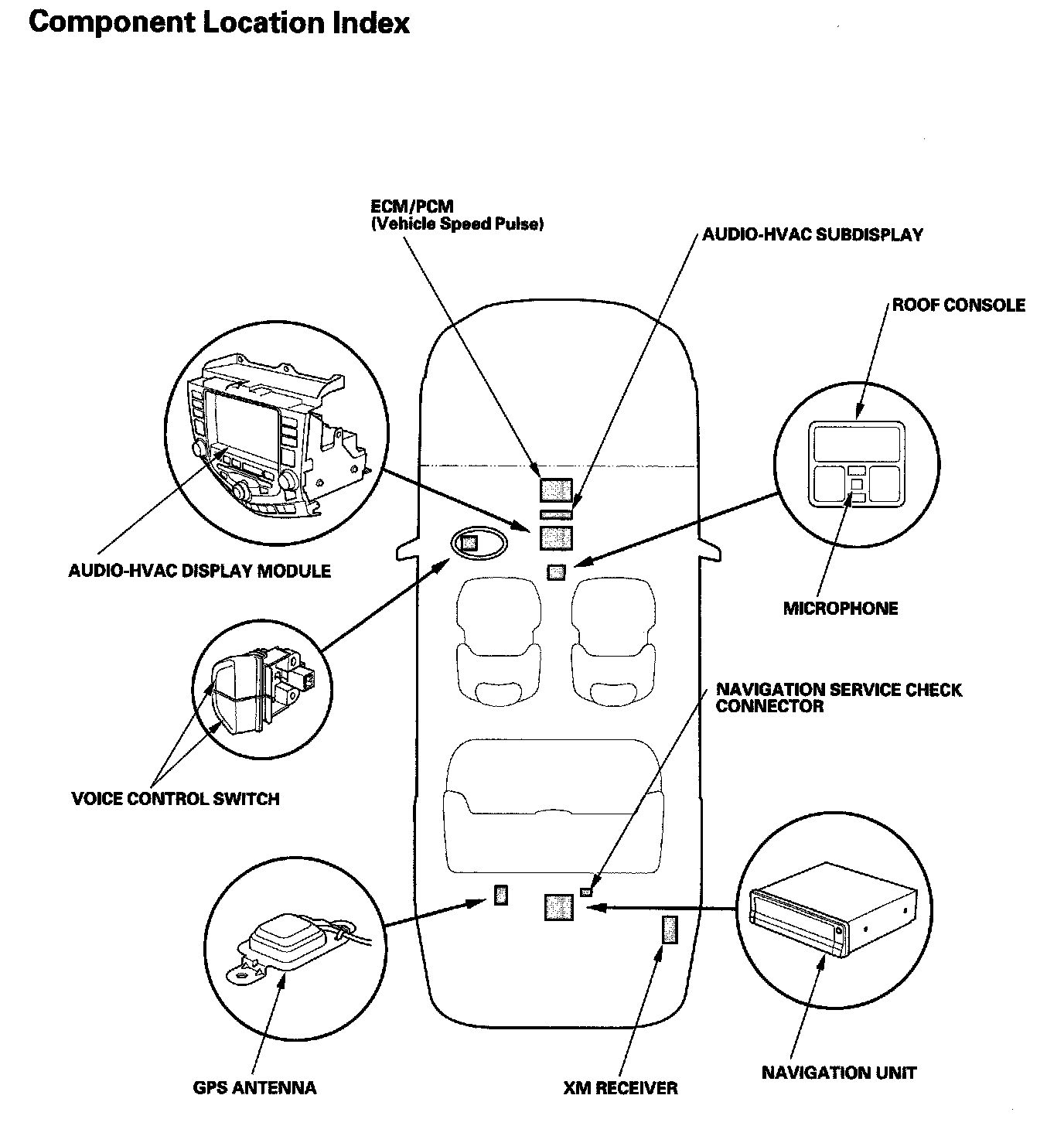

Navigation System Component Location Index:
