Evaporator Temperature Sensor / Switch: Service and Repair

Evaporator Temperature Sensor Replacement

1. Open the glove box. Remove the damper from the glow box, then let the glove box hang down.

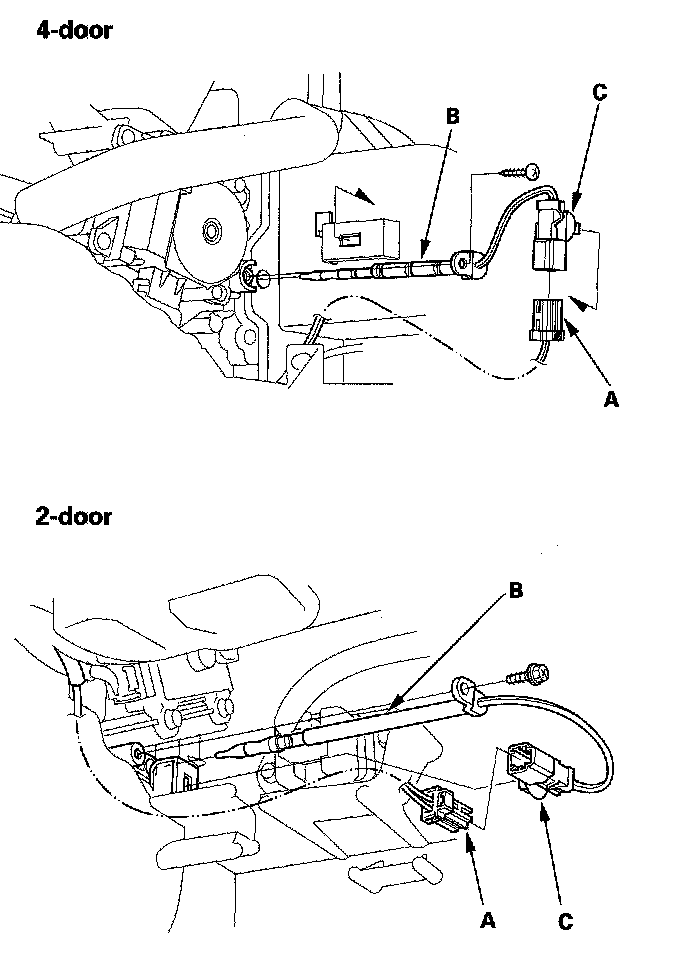

2. Disconnect the 2P connector (A) from the evaporator temperature sensor (B),then remove the connector clip (C). Remove the self-tapping screw, and carefully pull out the evaporator temperature sensor.
3. Install the sensor in the reverse order of removal.
