G301

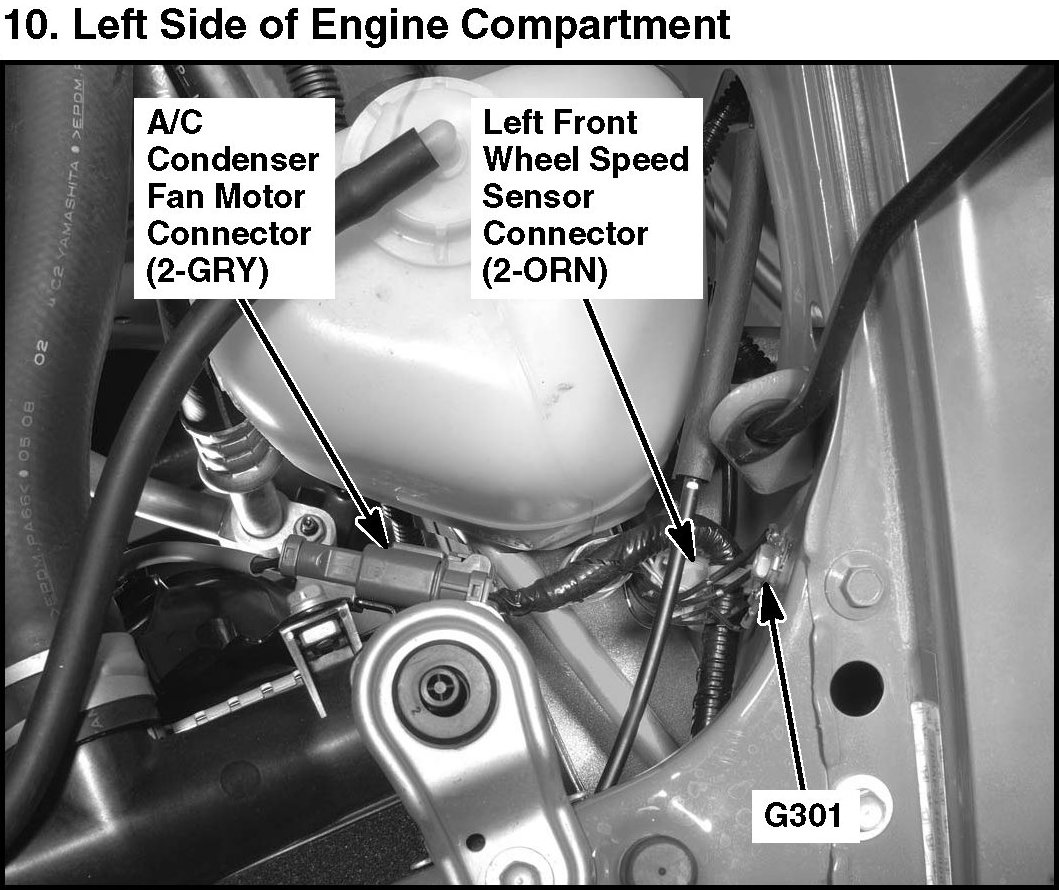

10. Left Side Of Engine Compartment:

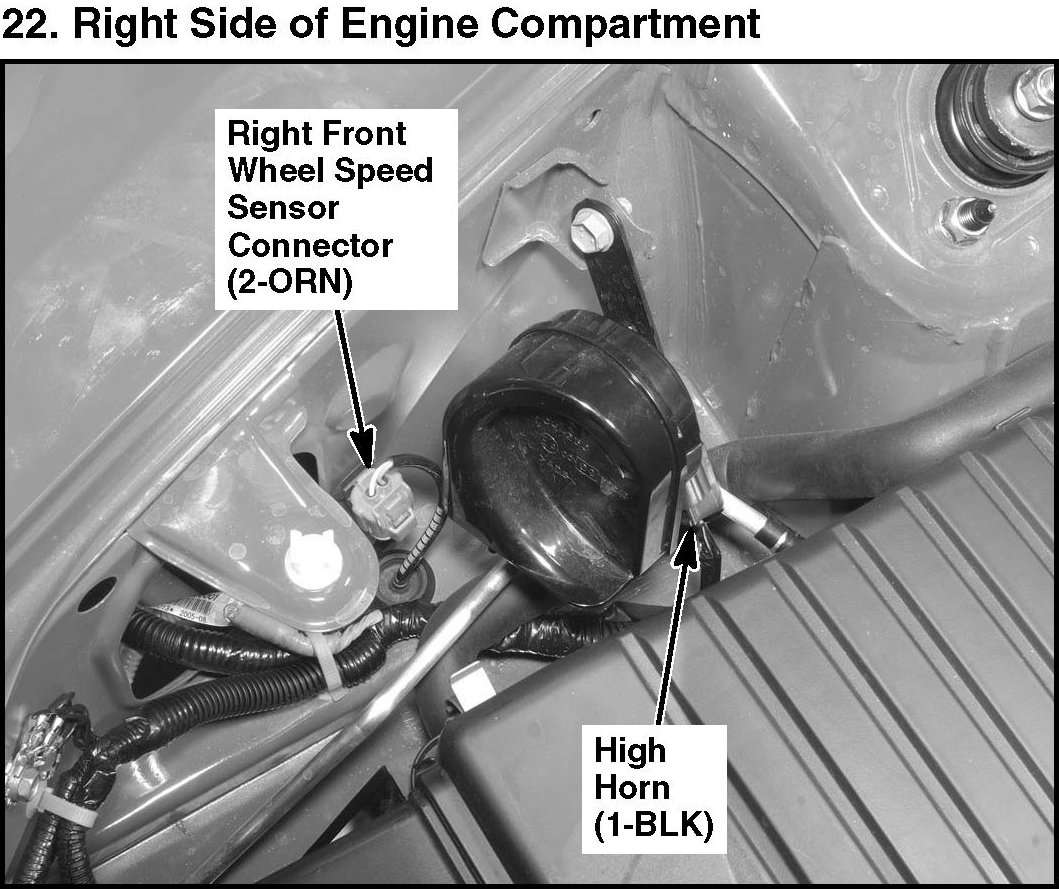

22. Right Side Of Engine Compartment:

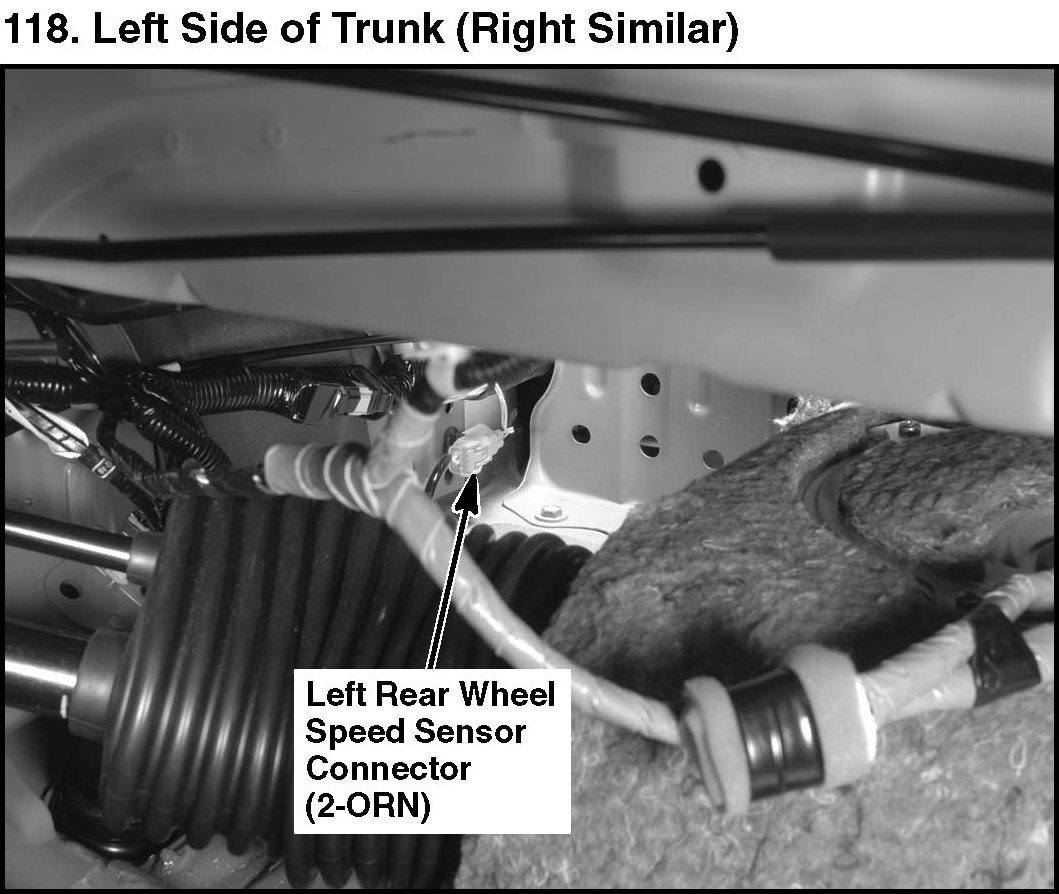

118. Left Side Of Trunk (Right Similar):
