Component Locations

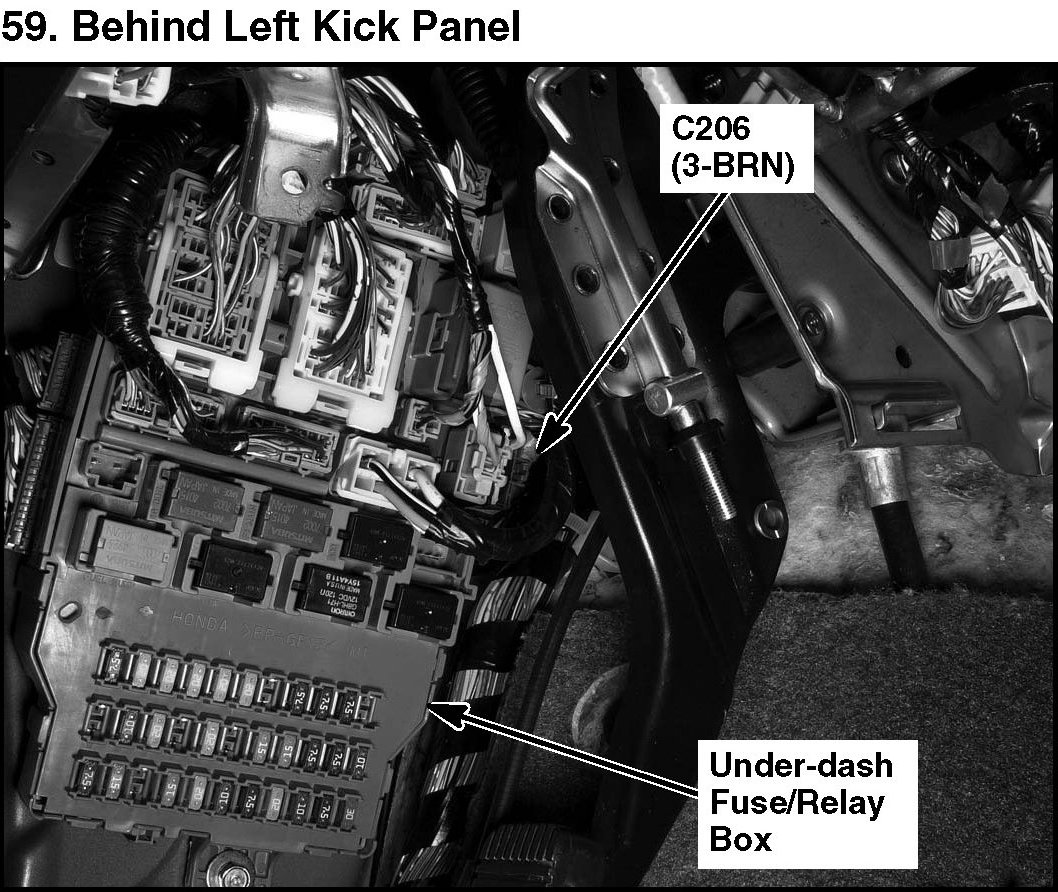

59. Behind Left Kick Panel:

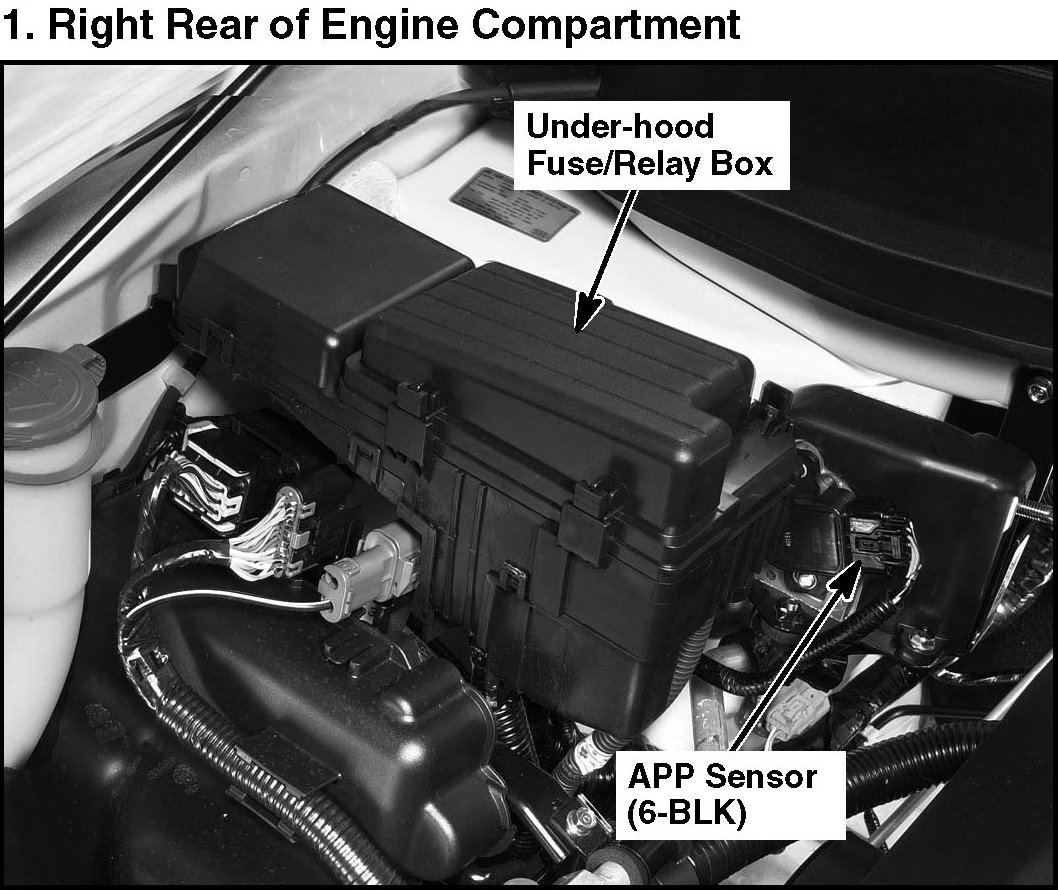

1. Right Rear Of Engine Compartment:

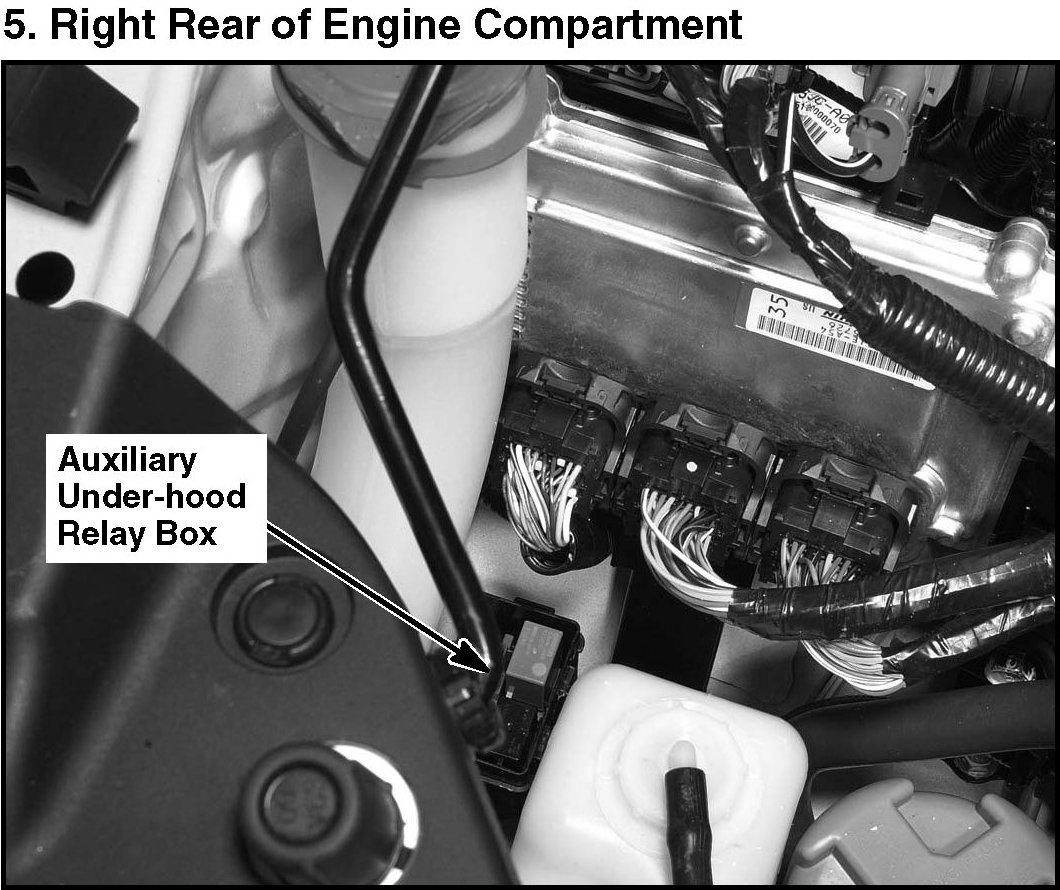

5. Right Rear Of Engine Compartment:

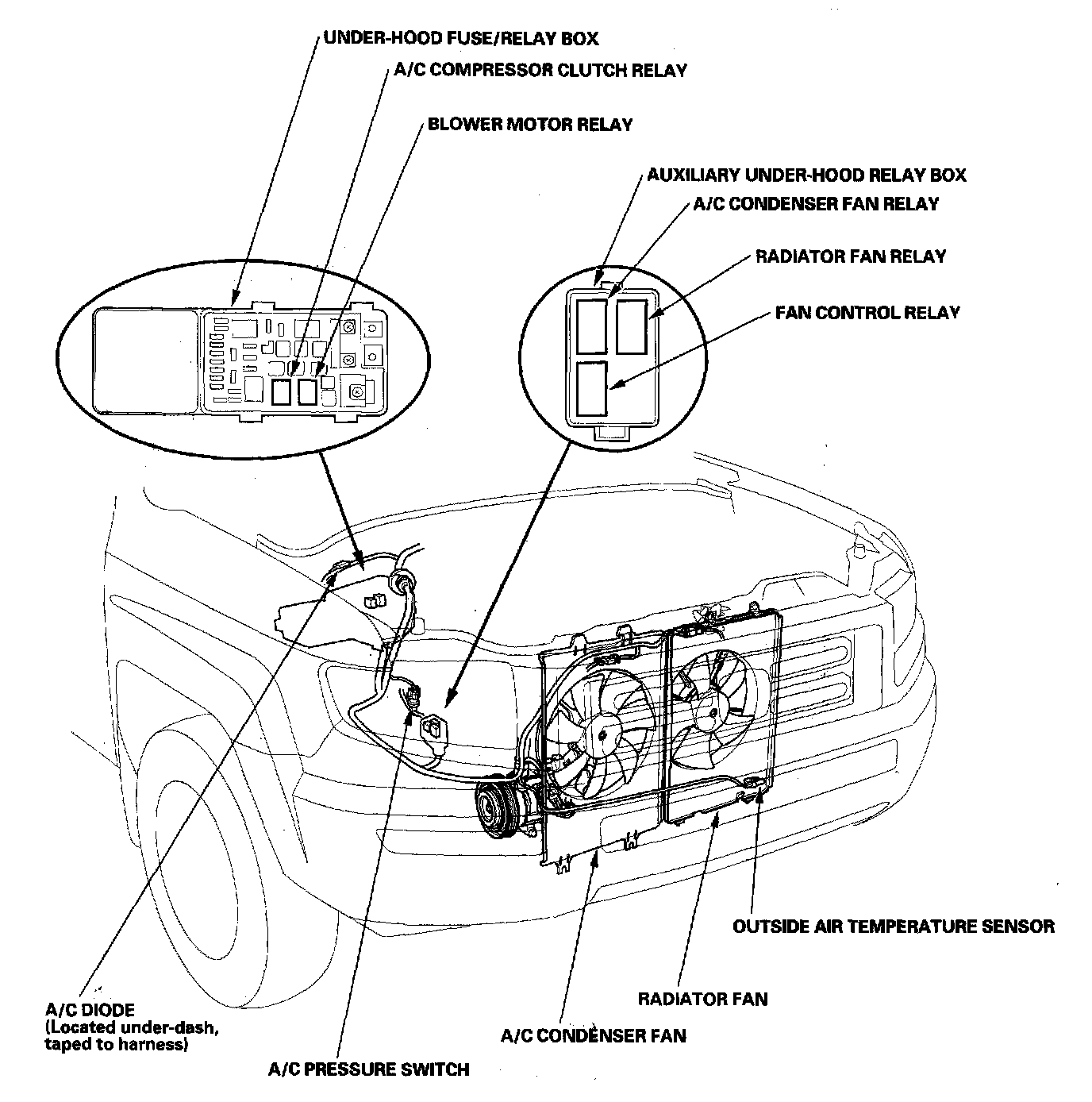

Fan Controls Component Location Index:



Climate Control - Component Location Index:



Relay And Control Unit Locations - Engine Compartment:



Relay And Control Unit Locations - Dashboard:

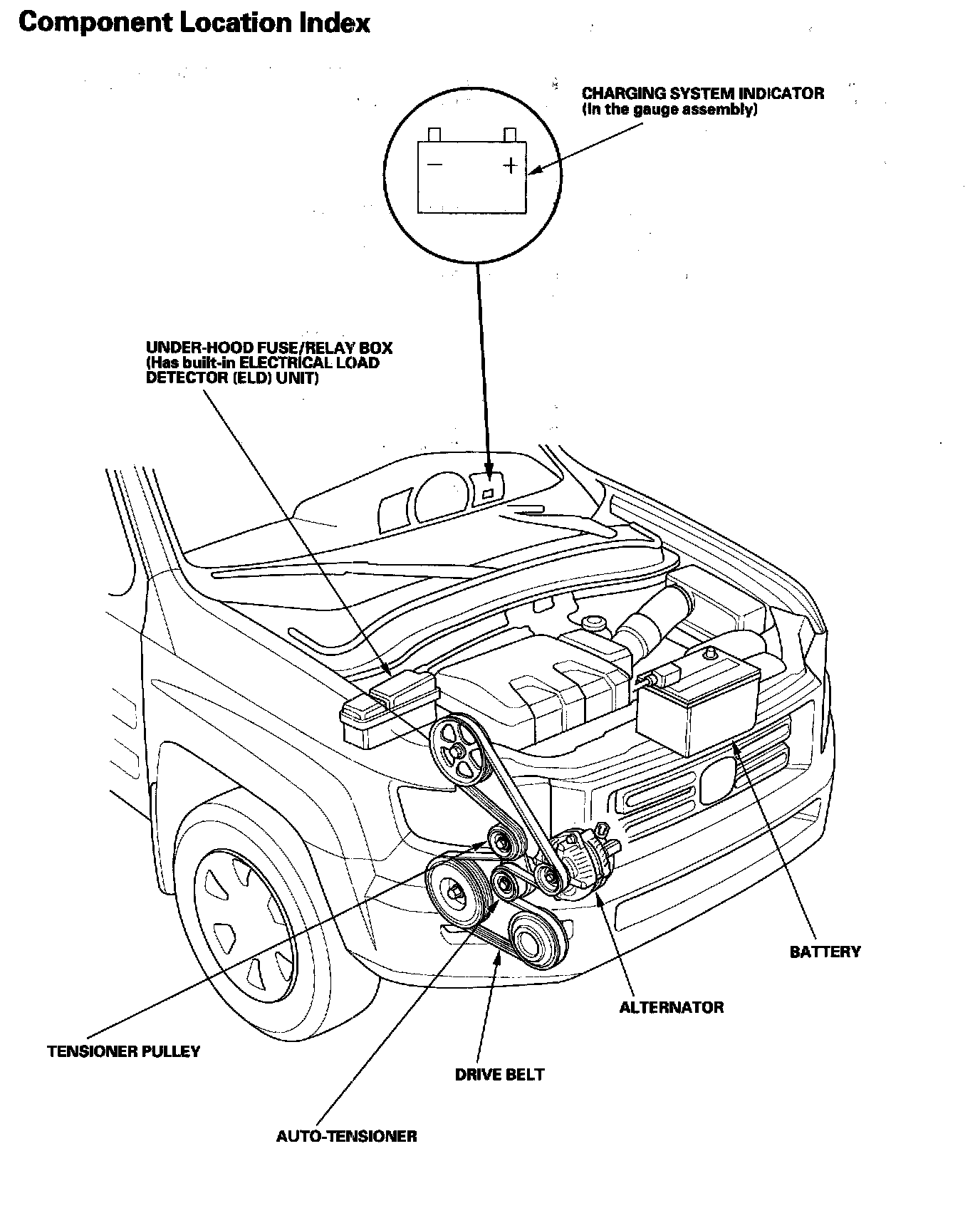

charging System - Component Location Index:
