Home >> Honda >> 2006 >> Pilot 2WD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 301-325 >> 317

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

View 301-325: 317

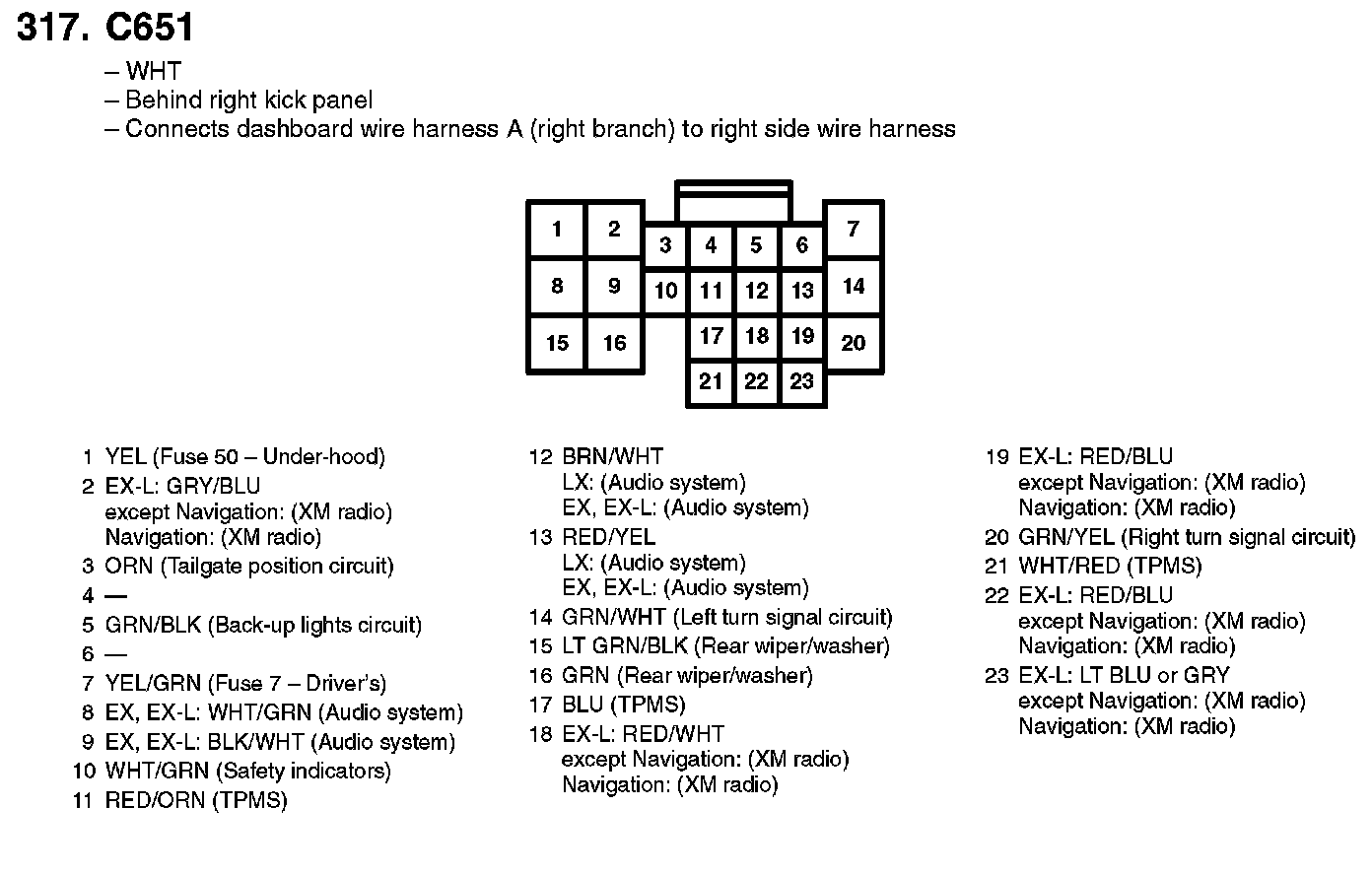

317. C651:
