Home >> Honda >> 2006 >> Element 4WD L4-2.4L >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Control Module >> Locations
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

Wiper Control Module: Locations

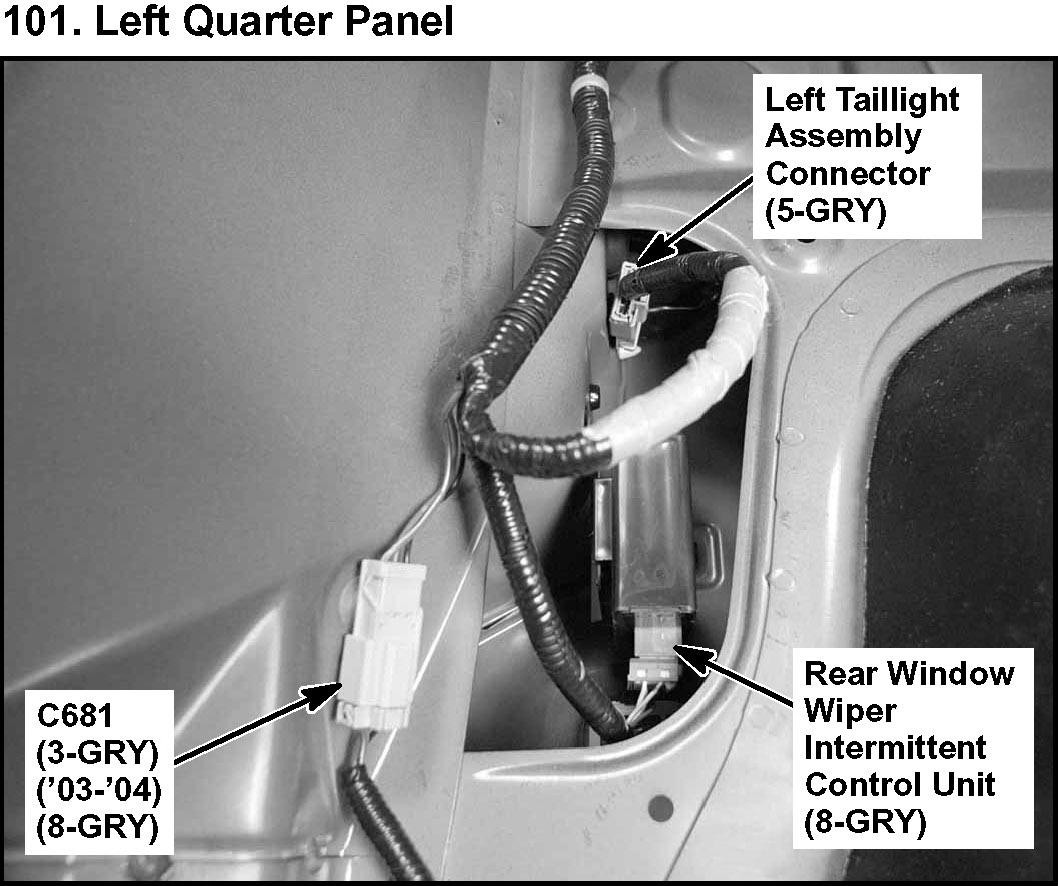

101. Left Quarter Panel:

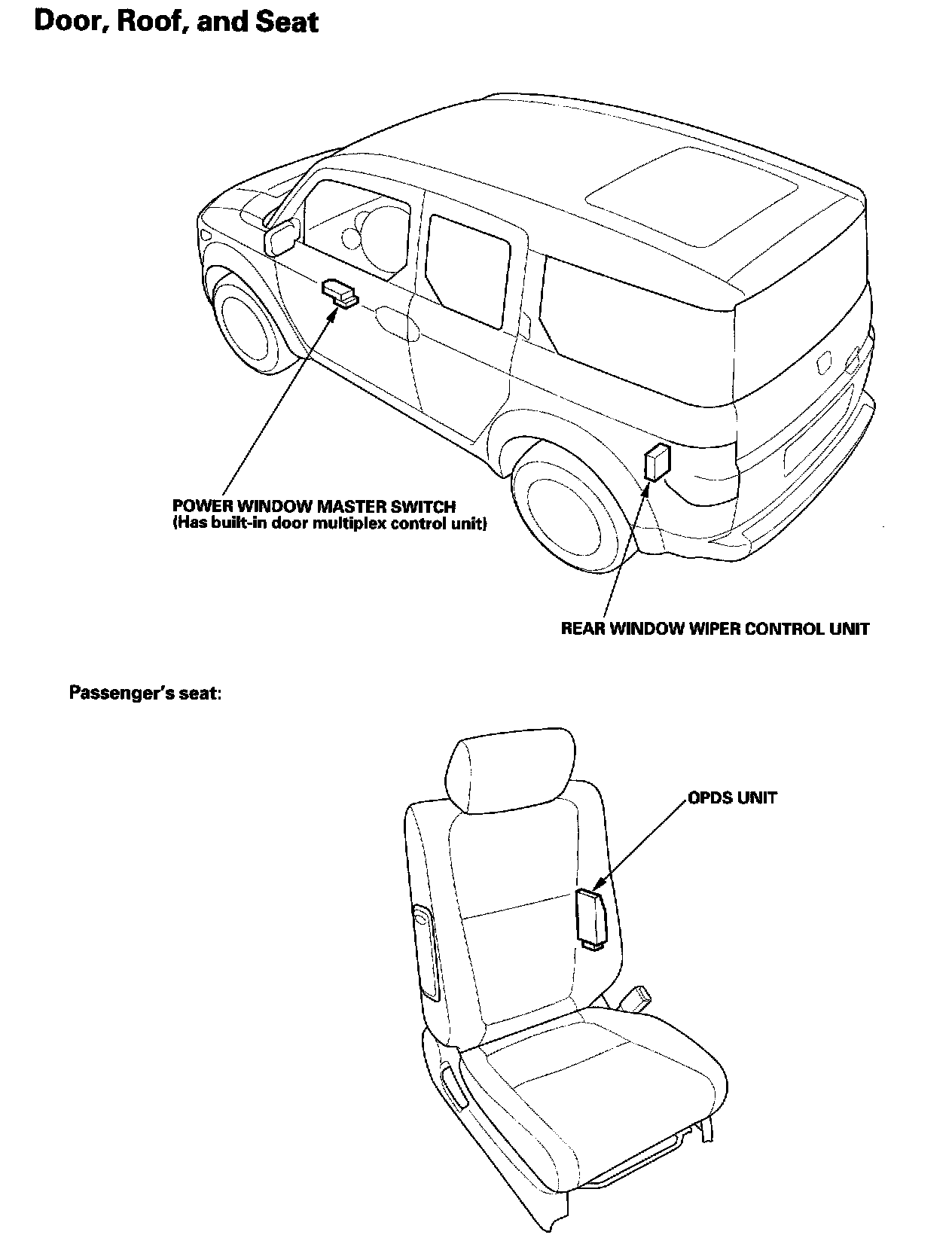

Relay And Control Unit Locations - Door,Roof And Seat:
