Keyless/Power Door Lock System Circuit Diagram

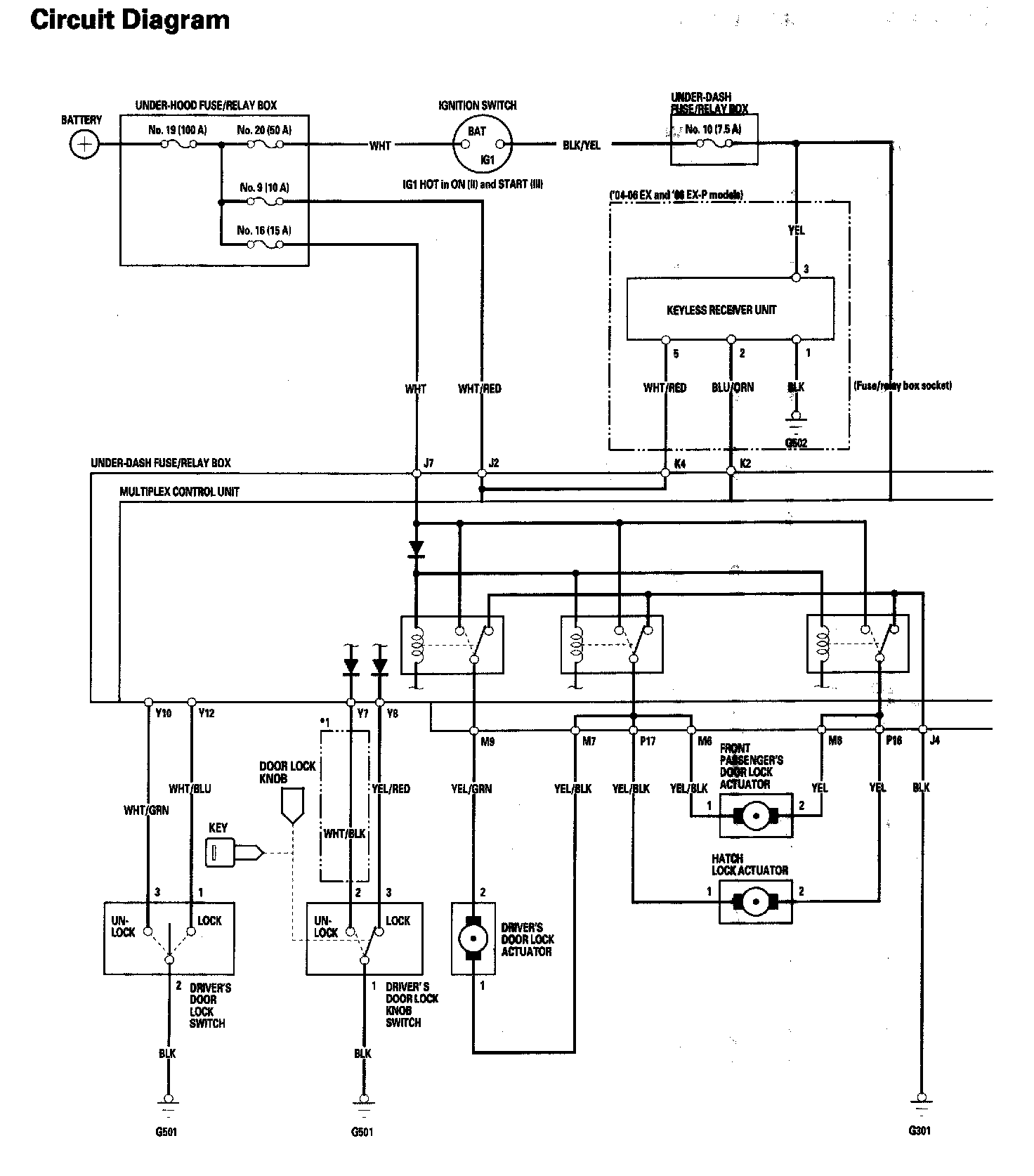

Keyless/Power Door Lock System - Circuit Diagram Part 1:

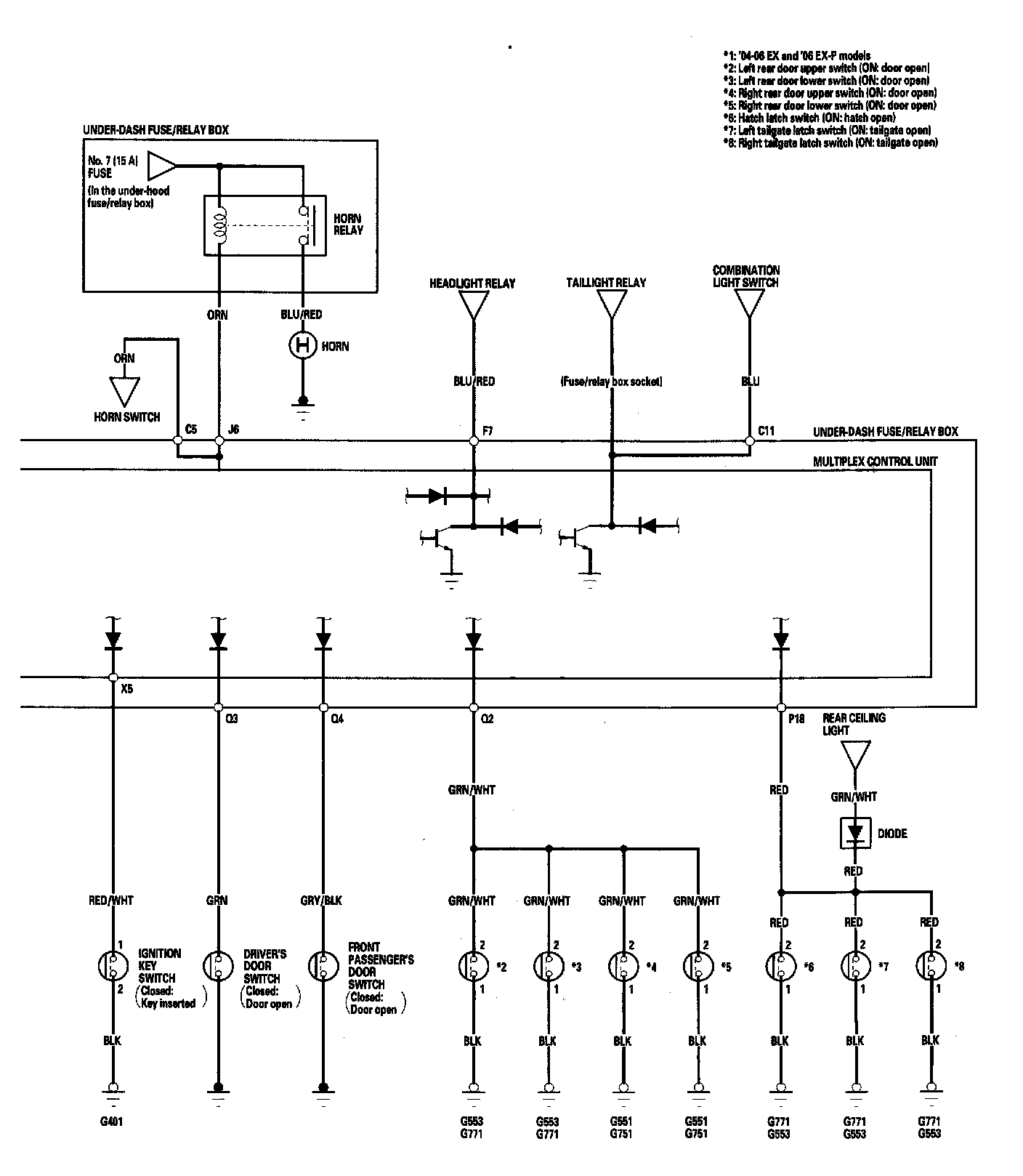

Keyless/Power Door Lock System - Circuit Diagram Part 2:
