Windshield Washer Switch: Service and Repair

Wiper/Washer Switch Replacement

1. Remove the dashboard lower cover.
2. Remove the steering column covers.

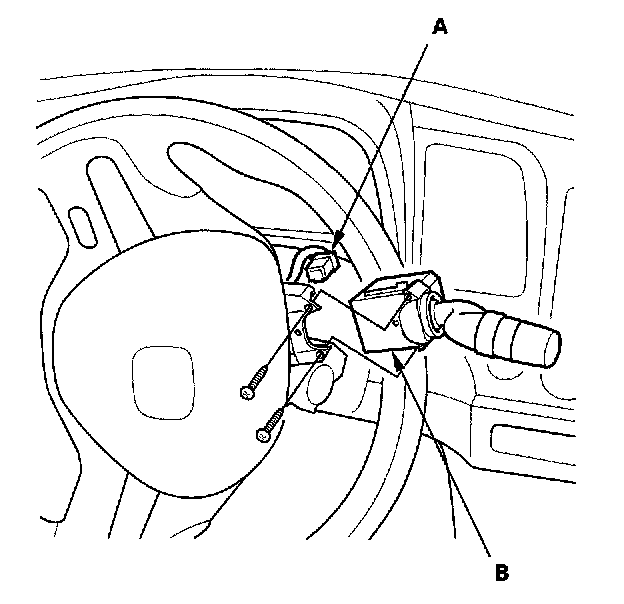

3. Disconnect the dashboard wire harness 8P connector (A) from the wiper/washer switch (B).
4. Remove the two screws, then slide out the wiper/washer switch.
5. Install the switch in the reverse order of removal.
