Computers and Control Systems: Locations

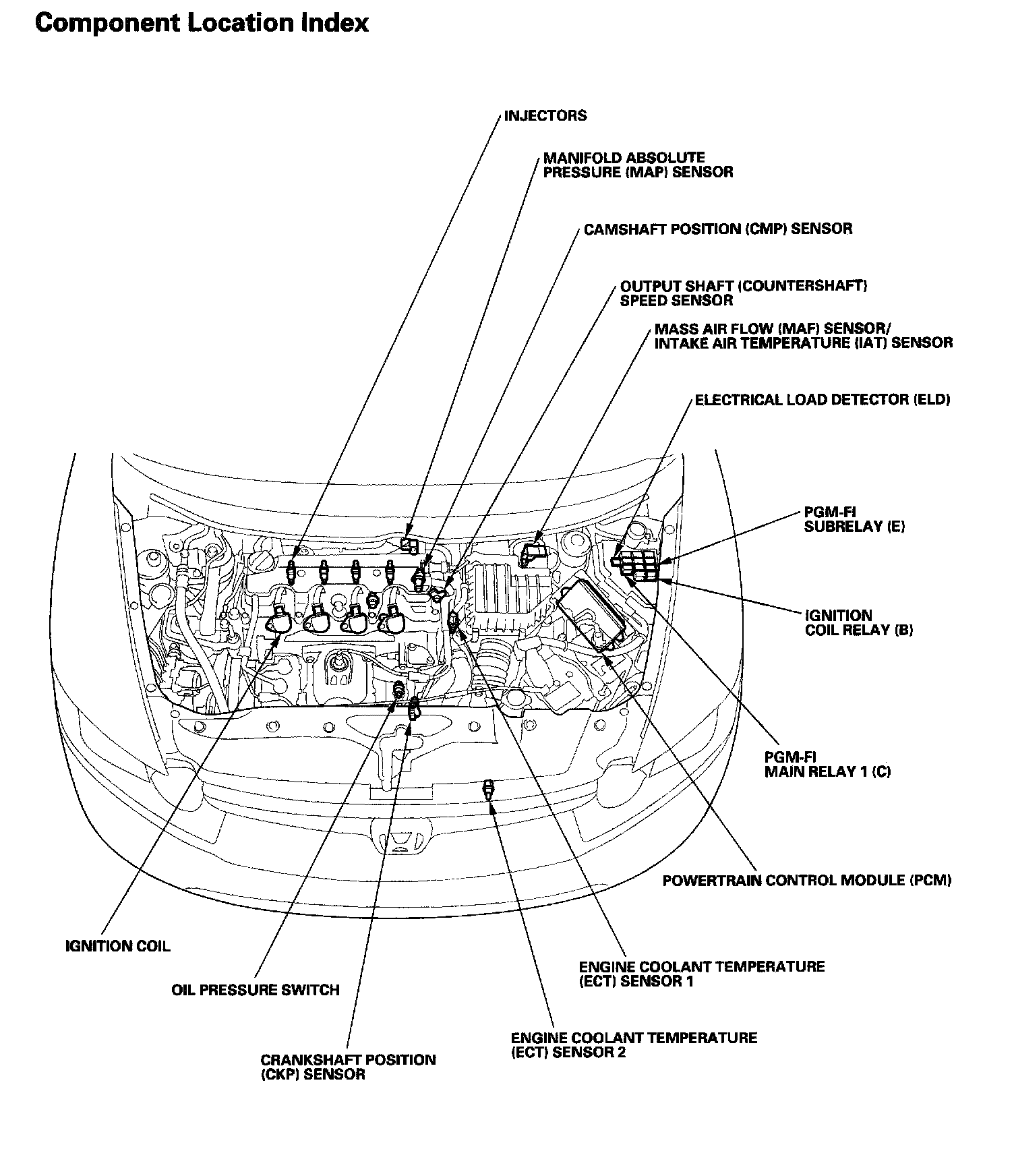

PGM-FI System - Component Location Index:

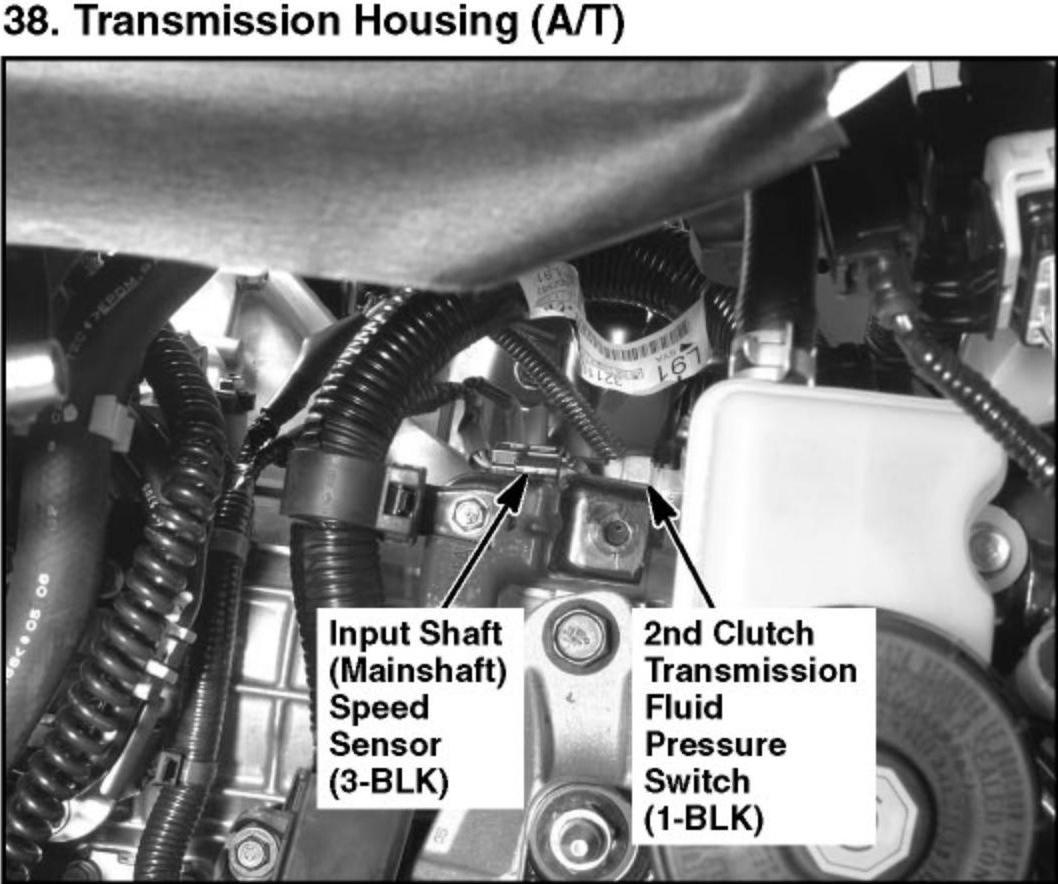

38. Transmission Housing (A/T):

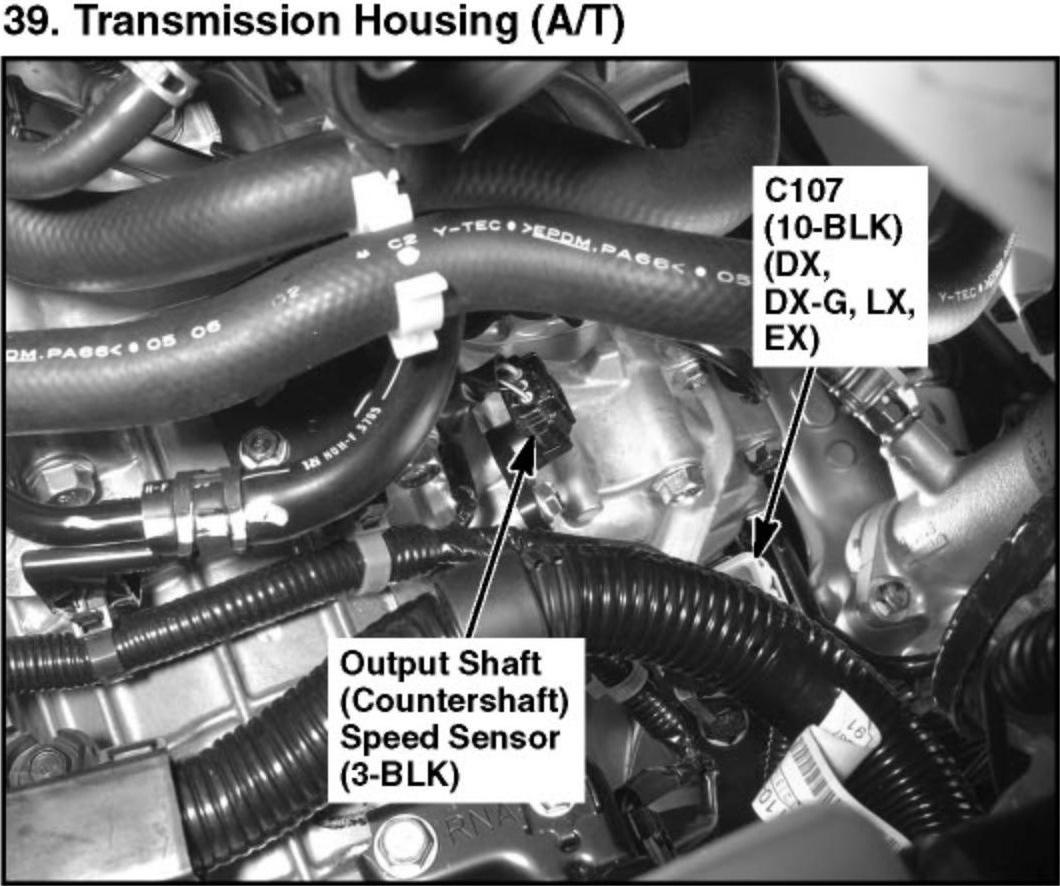

39. Transmission Housing (A/T):
