Door Switch

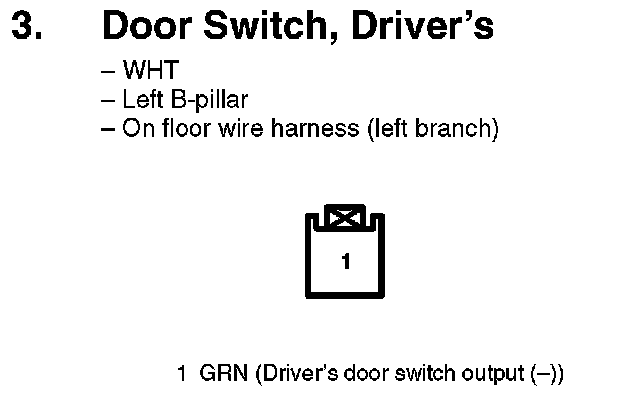

3. Door Switch, Driver's:

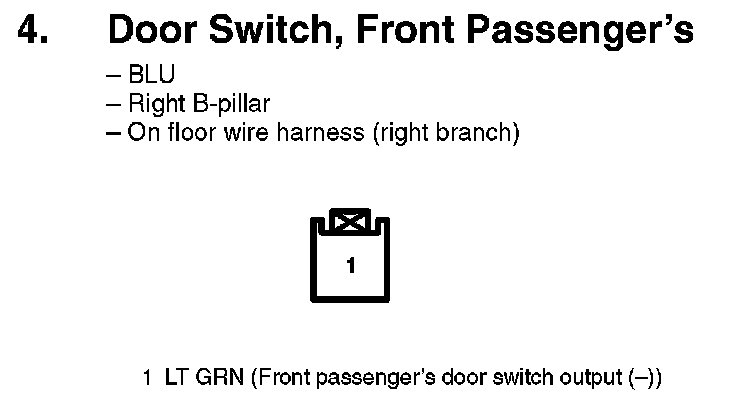

4. Door Switch, Front Passenger's:

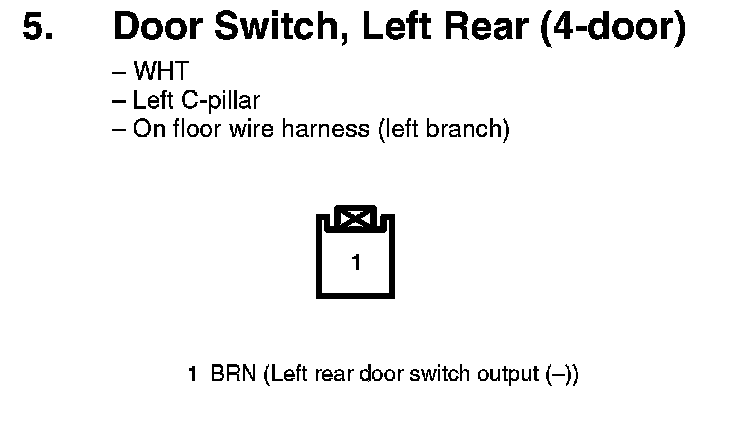

5. Door Switch, Left Rear (4-door):

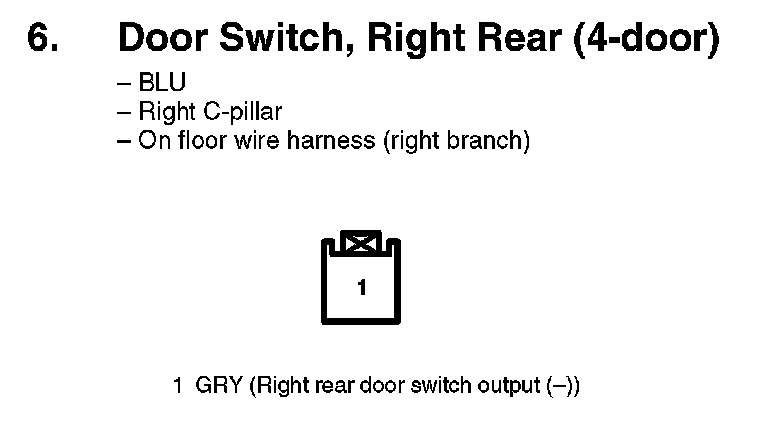

6. Door Switch, Right Rear (4-door):
