Intake Manifold Tuning (IMT) Valve Position Sensor

The IMT position sensor is a potentiometer connected to the IMT valve shaft. As the IMT valve position changes, the sensor varies the signal voltage to the ECM/PCM.

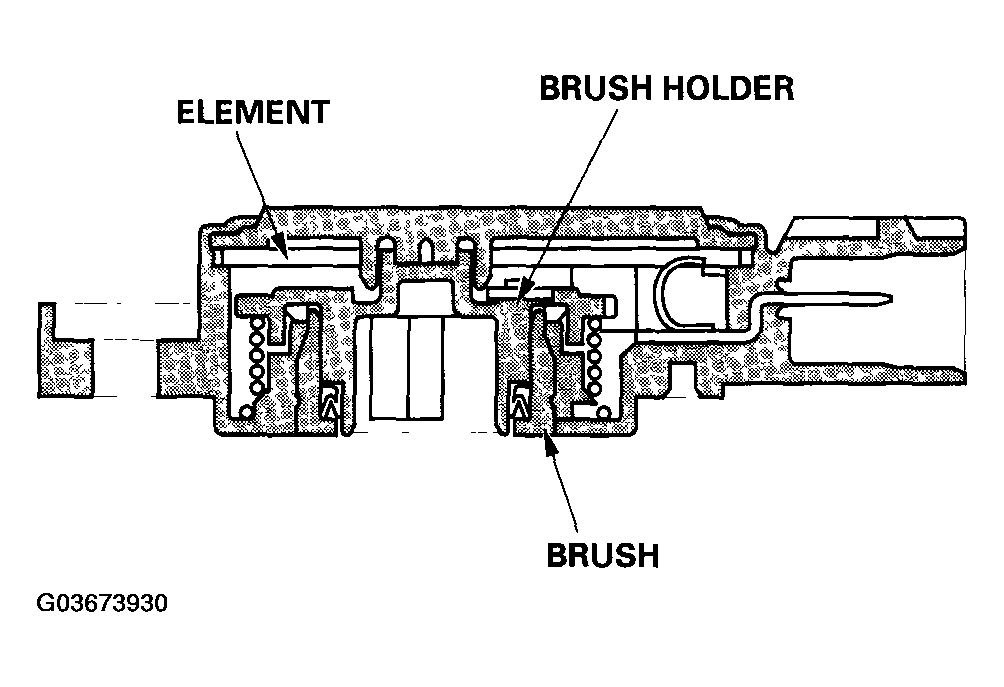

Fig 1: Identifying Intake Manifold Tuning (IMT) Valve Position Sensor

Courtesy of AMERICAN HONDA MOTOR CO., INC.
