Radiator Fan Switch Replacement

  1. Drain the engine coolant (see COOLANT CHECK ).
  2. Disconnect the radiator fan switch connector, then remove the radiator fan switch (A).

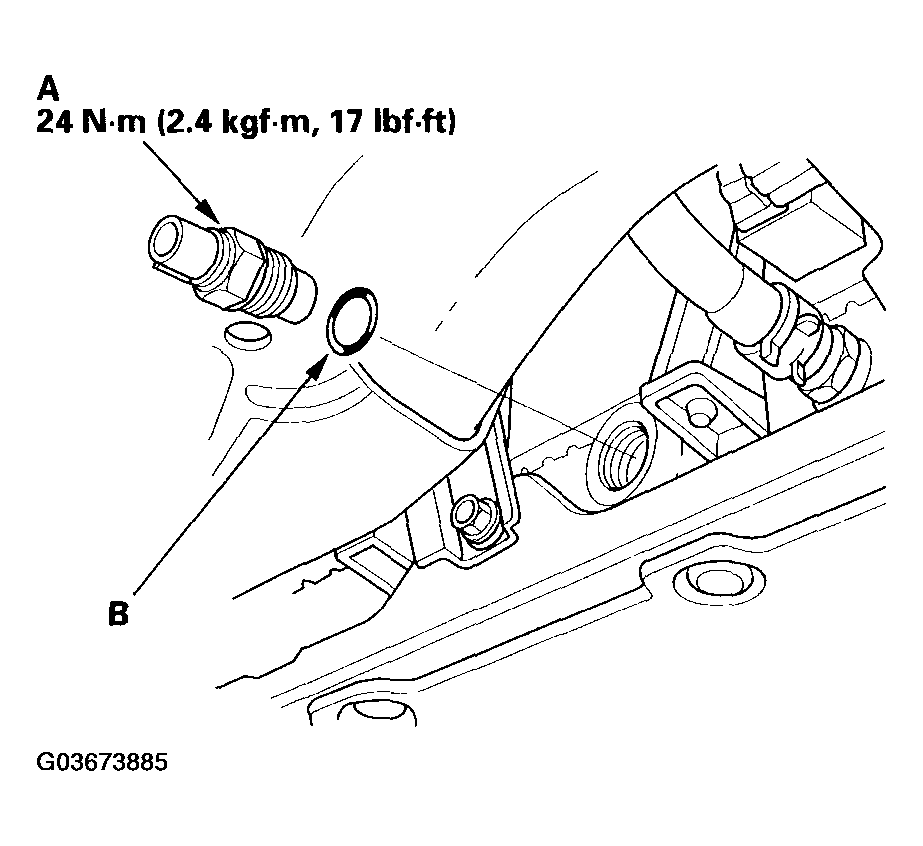

    Fig 1: Disconnecting Radiator Fan Switch Connector With Torque Specifications
    G03673885Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the radiator fan switch with a new O-ring (B).
  4. Fill the reserve tank and radiator with engine coolant, and bleed the air from the cooling system with the heater valve open (see step 8 on COOLANT REPLACEMENT ).
