Data Link Connector: Locations

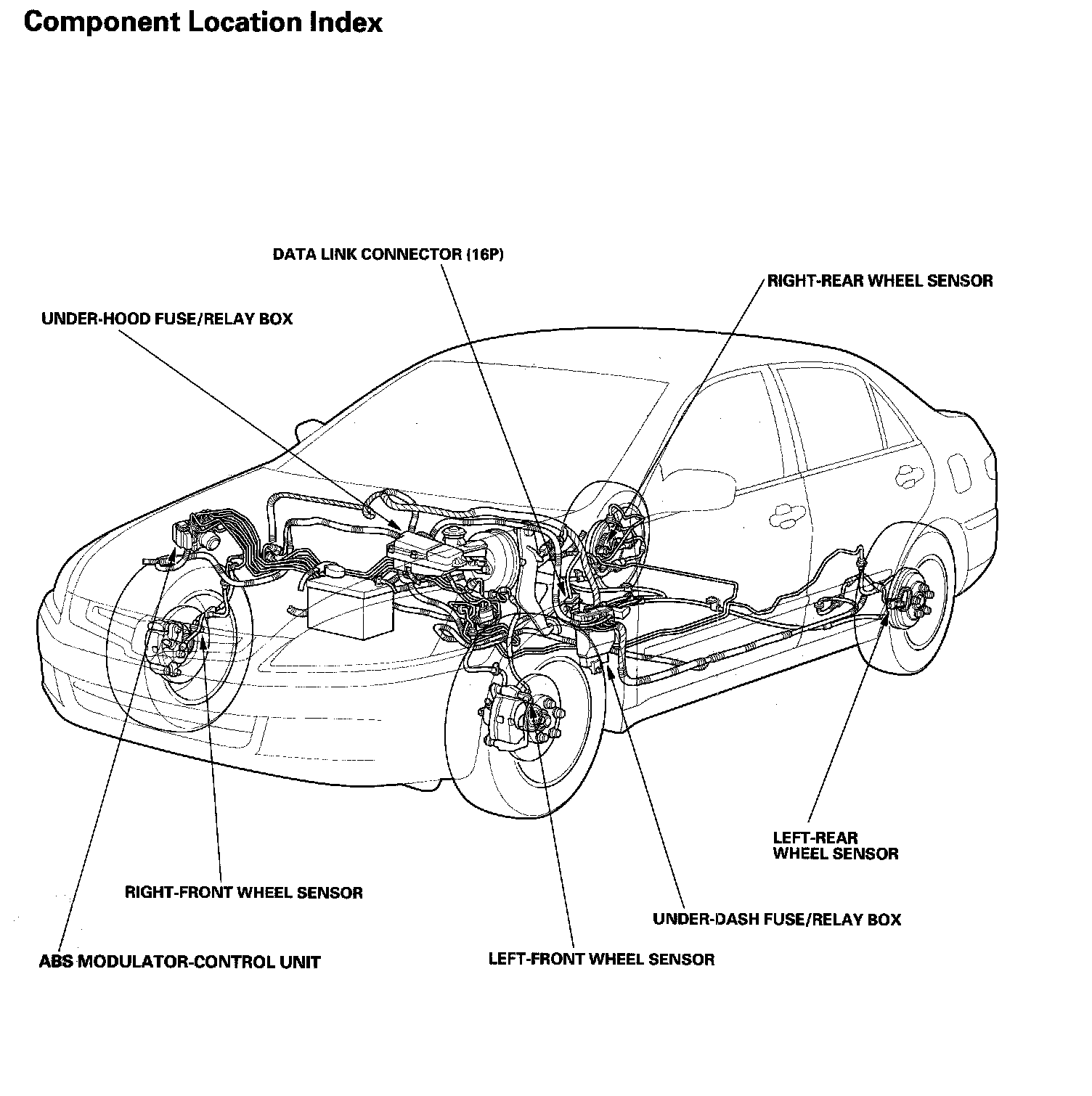

Antilock Brake System Component Location Index:



PGM-FI System - Component Location Index:

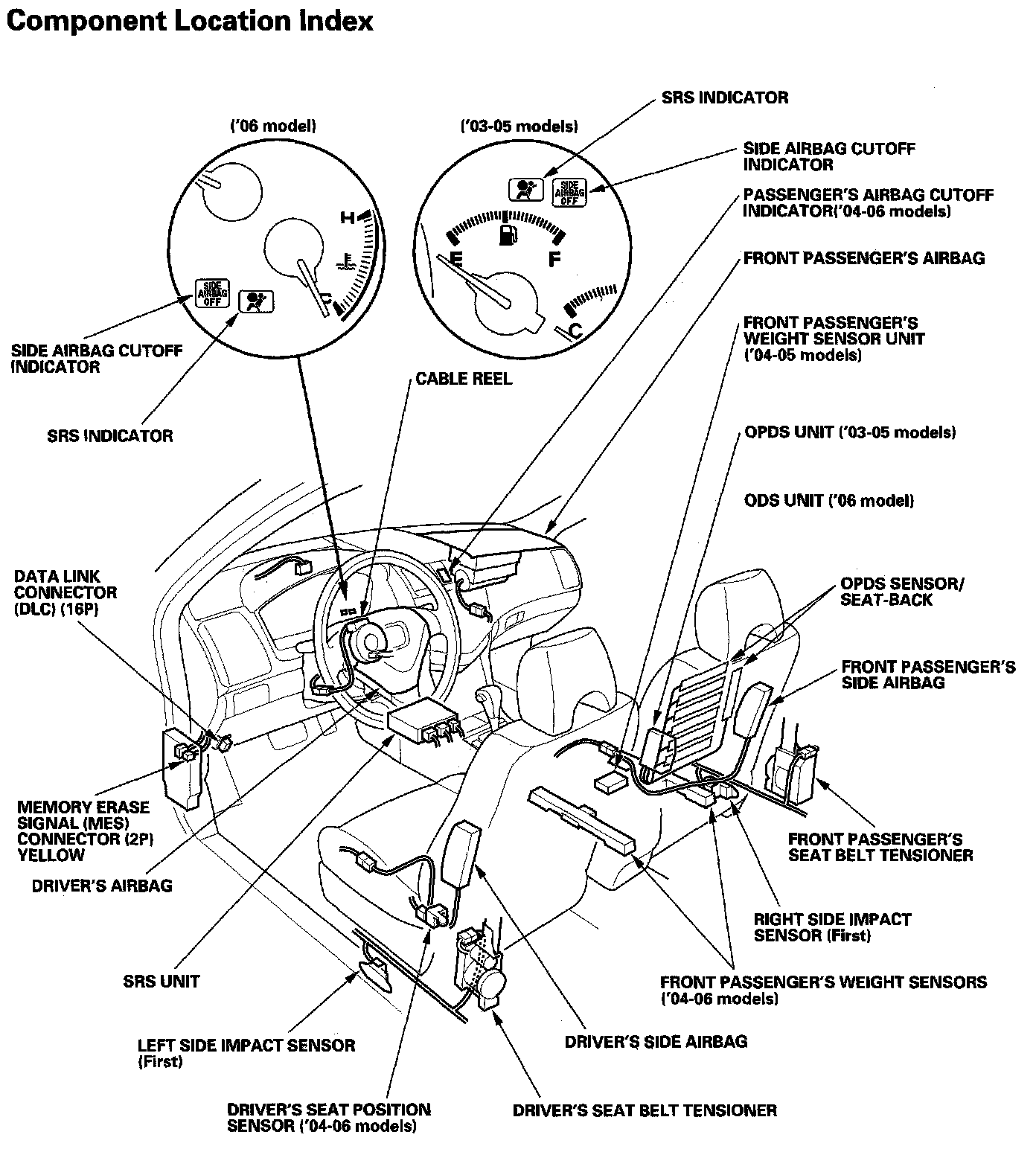

SRS - Component Location Index:

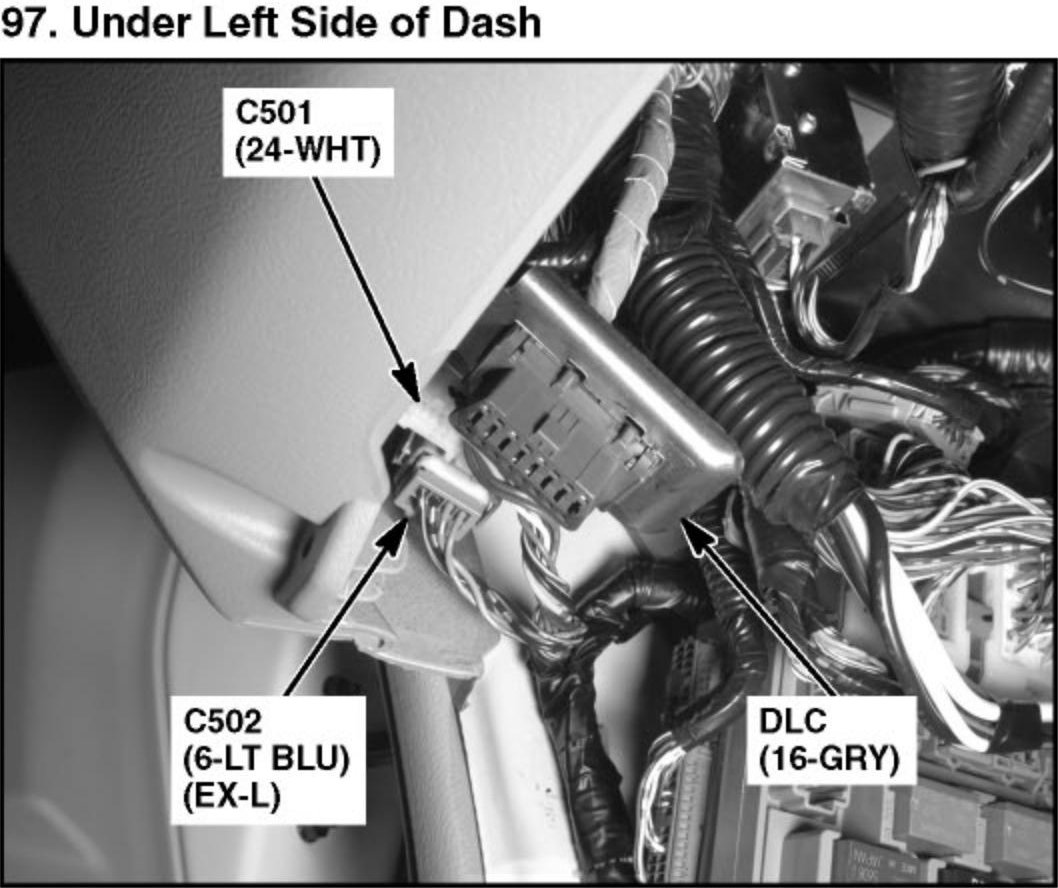

97. Under Left Side of Dash:
