Control Assembly: Locations

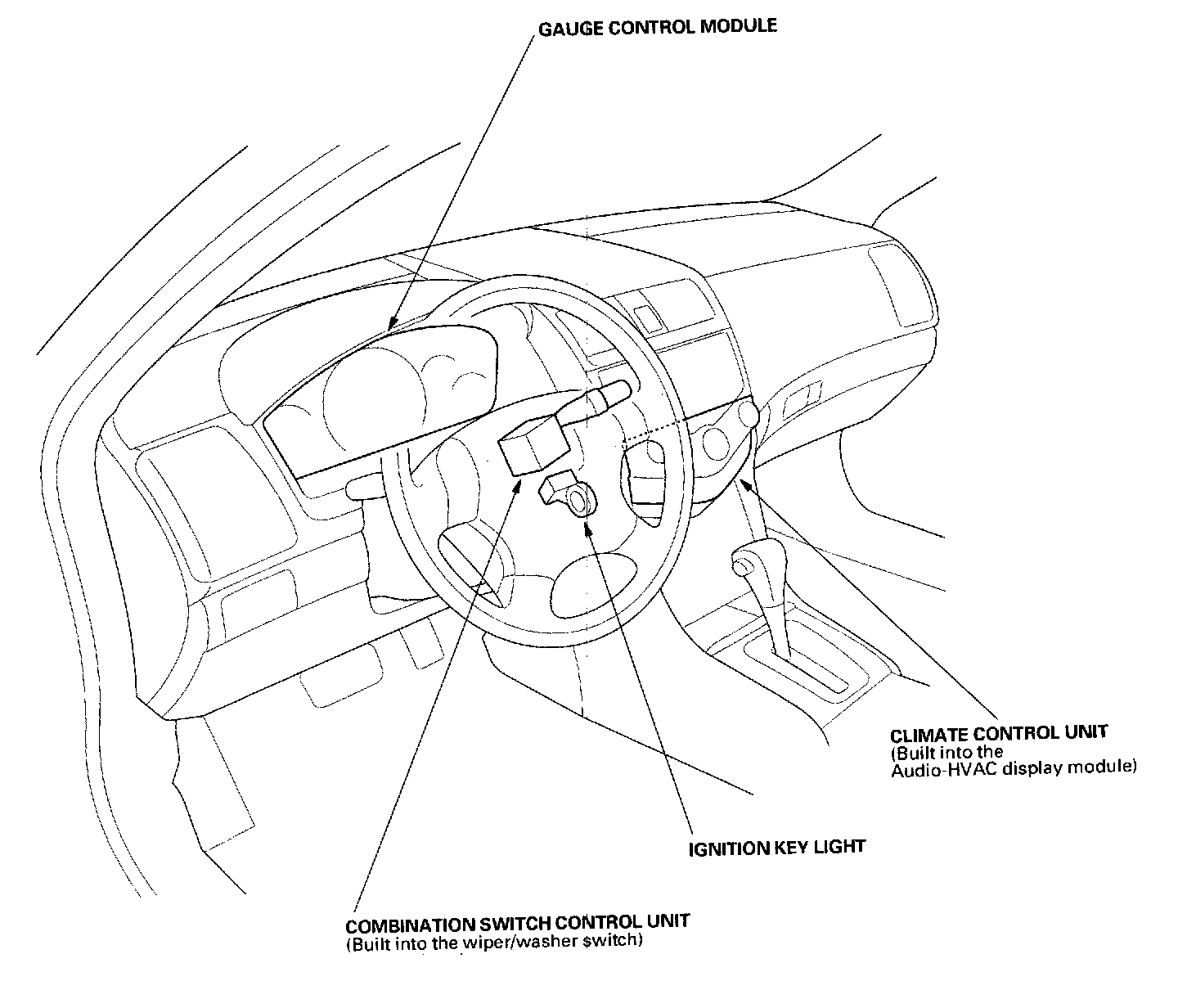

Multiplex Integrated Control System (MICS) Component Location Index:

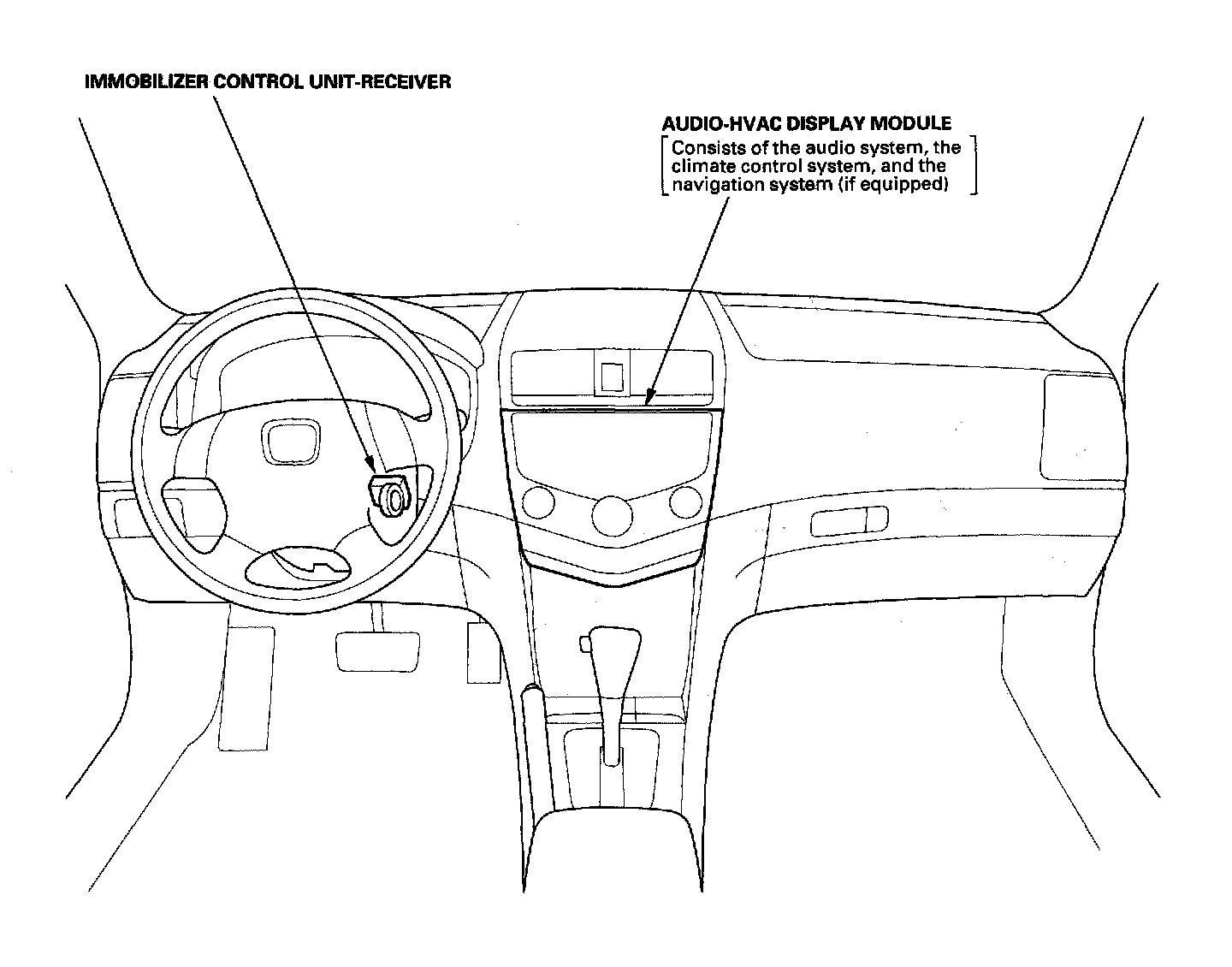

Relay And Control Unit Locations - Dashboard:

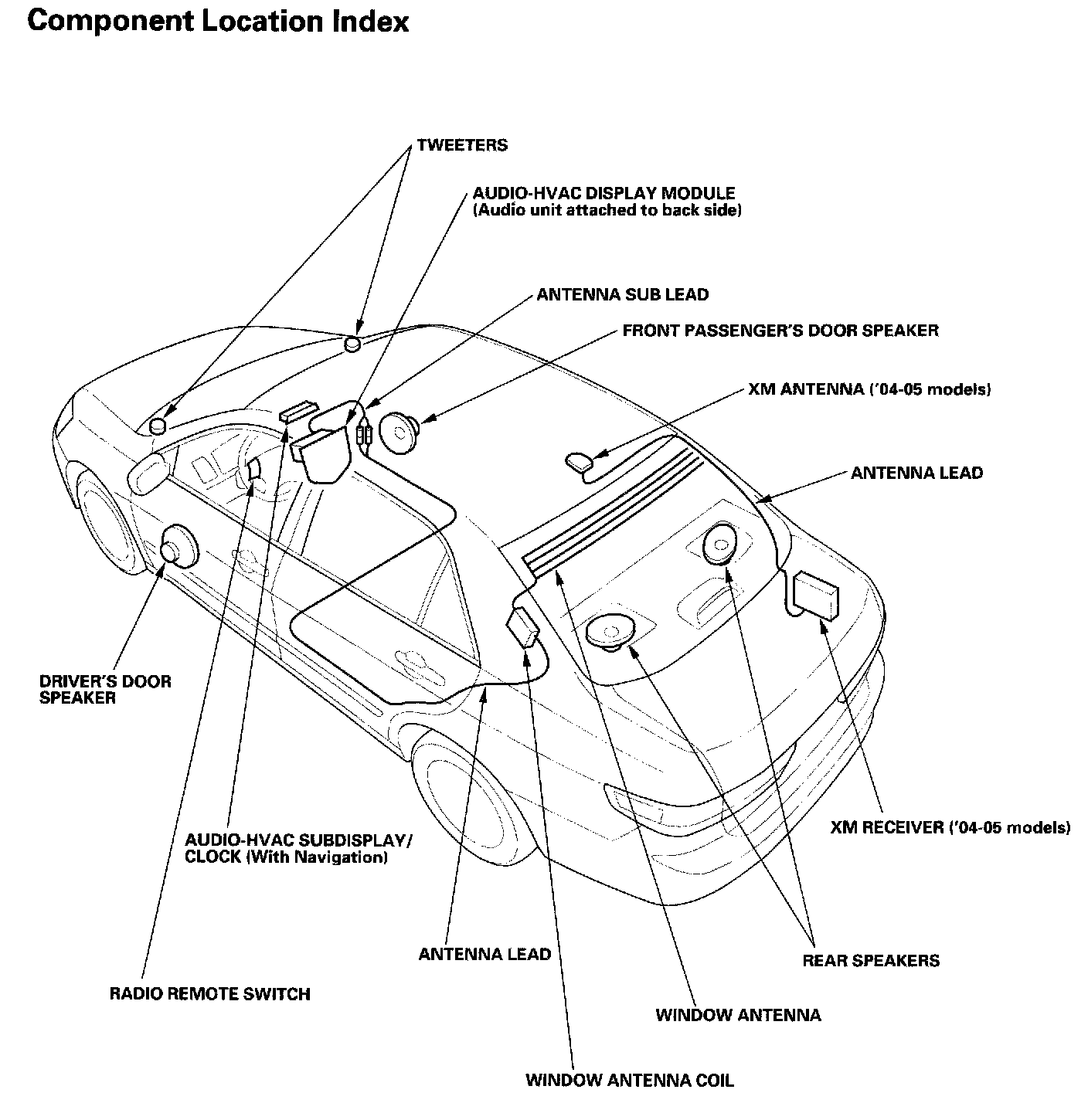

Stereo Sound System - Component Location Index:

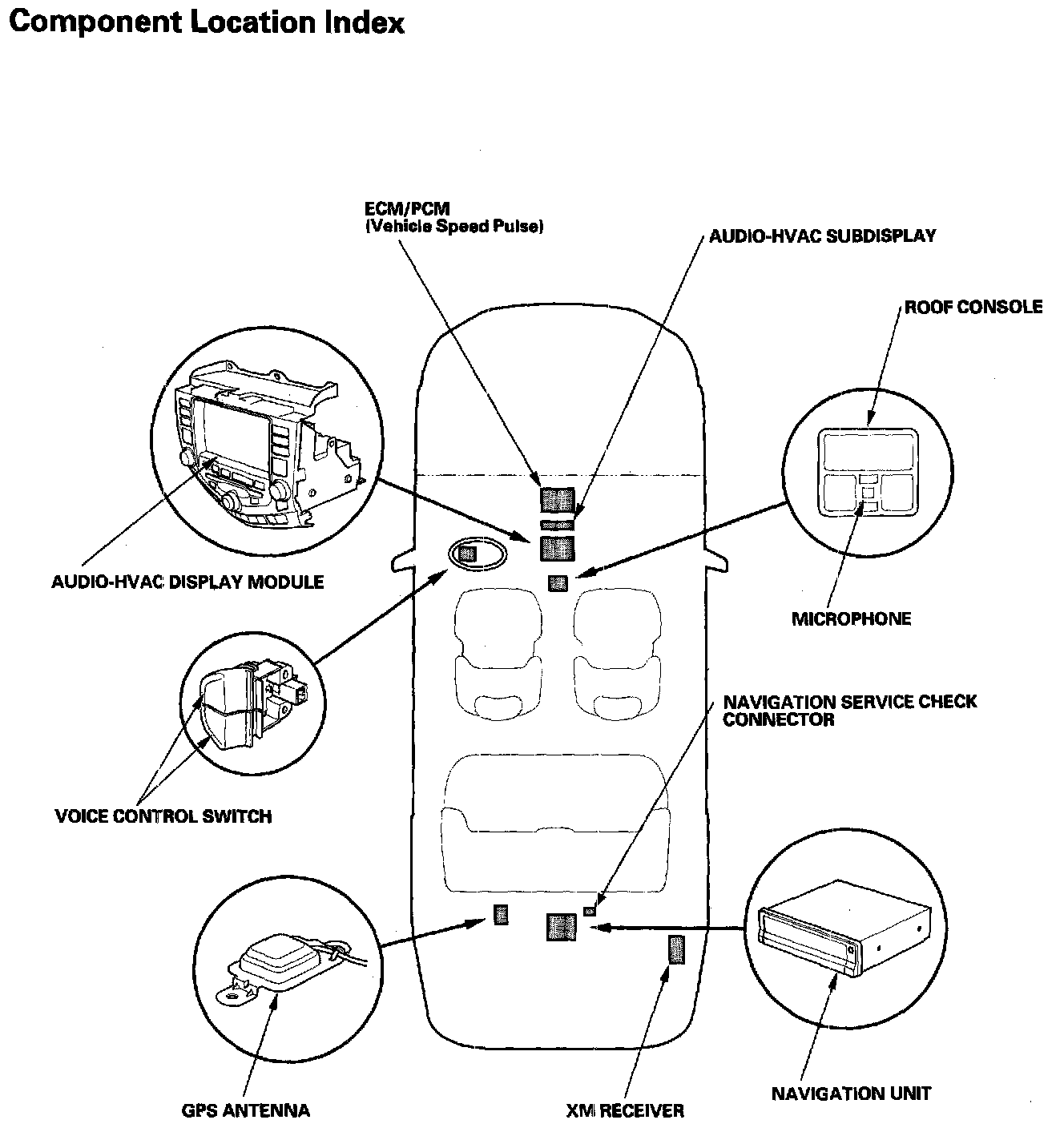

Navigation System - Component Location Index:

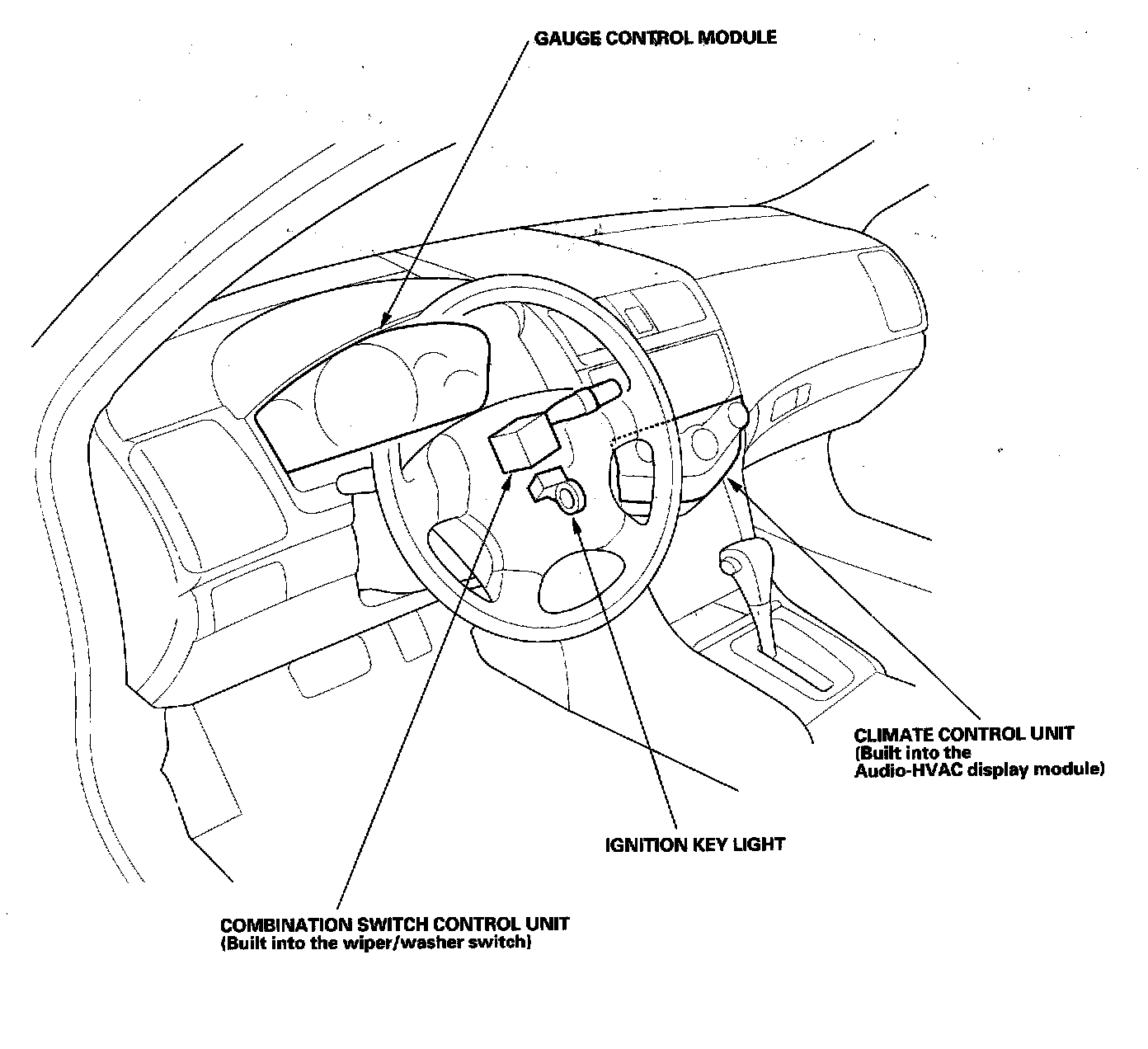

Multiplex Integrated Control System (MICS) - Component Location Index:
Navigation System - Component Location Index:

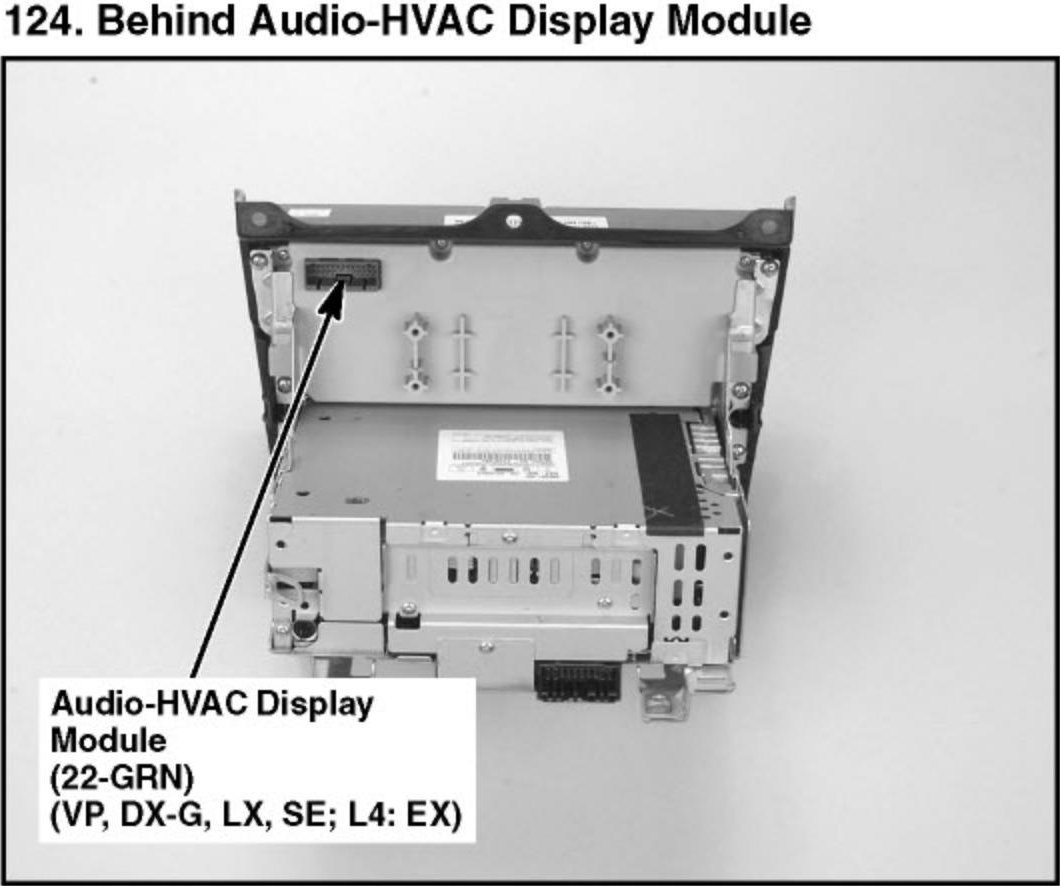

124. Behind Audio-HVAC Display Module:

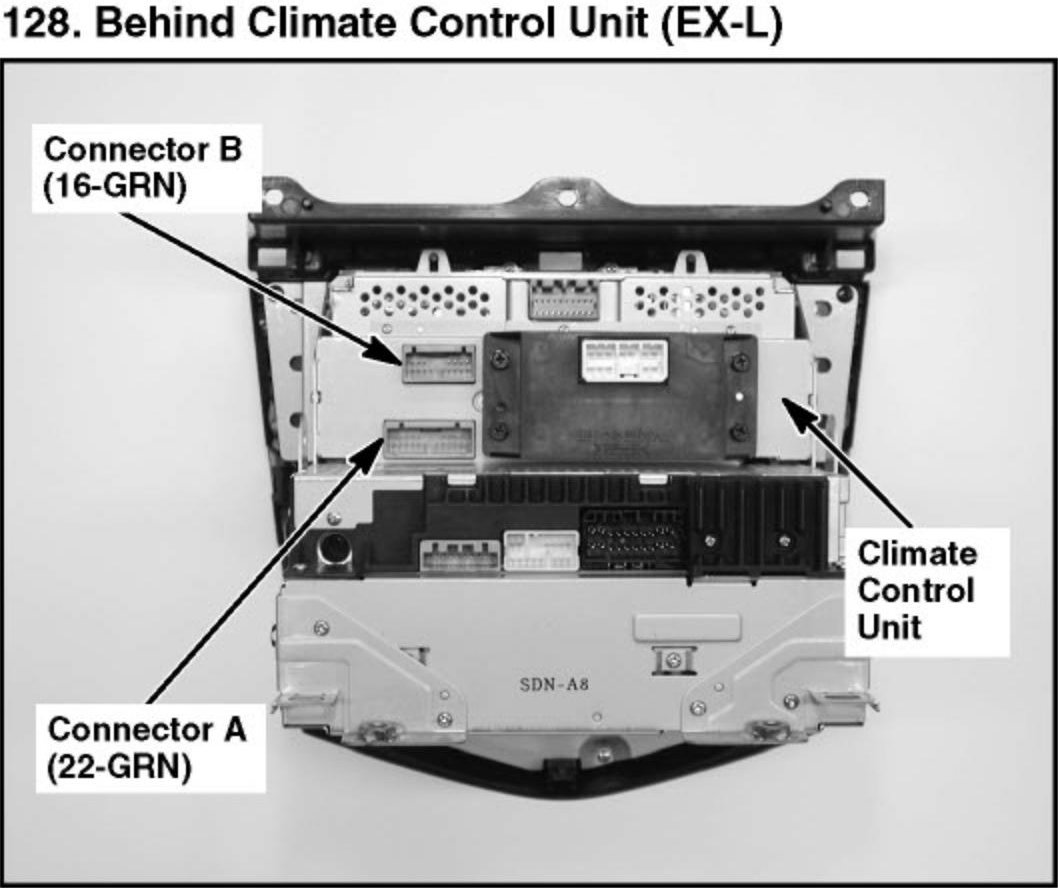

128. Behind Climate Control Unit (EX-L):
