DTC P15AC: Engine Mount Control Unit Internal Circuit Malfunction: Notes

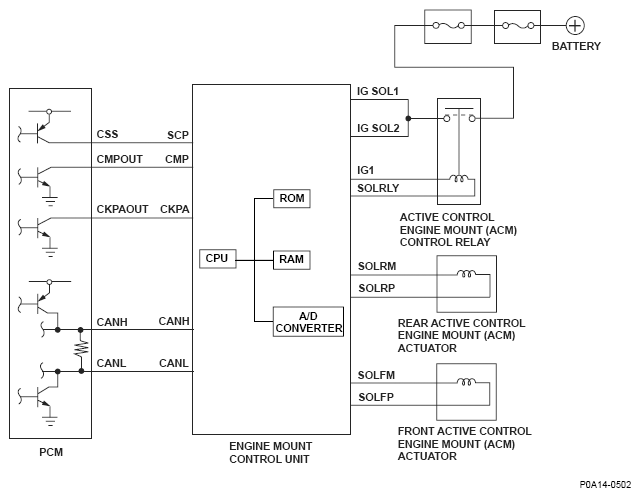

Fig 1: DTC P15AC Engine Mount Control Unit - Circuit Diagram
G04819487
