Fuel Tank Vapor Control Valve Replacement

  1. Remove the fuel tank (see FUEL TANK REPLACEMENT ).
  2. Remove the fuel tank vapor control valve (A) from the fuel tank (B).

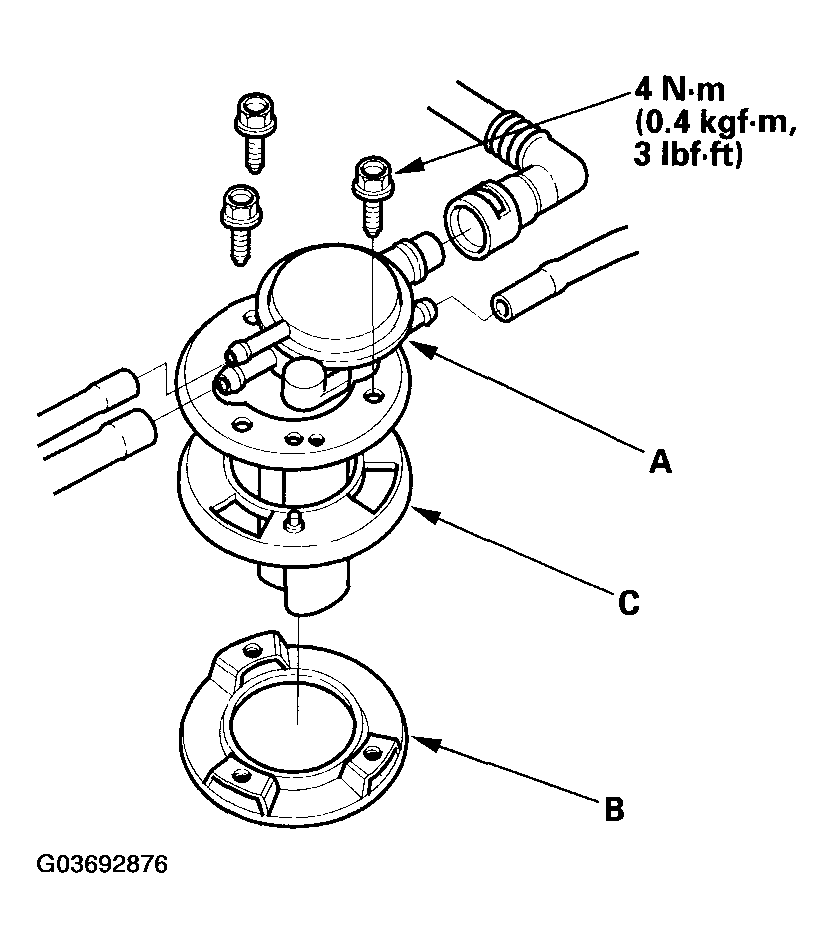

    Fig 1: Removing Fuel Tank Vapor Control Valve From Fuel Tank With Torque Specifications
    G03692876Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Replace the base gasket (C).
  4. Install the fuel tank vapor control valve (A).
  5. Install the fuel tank.
