Component Location Index

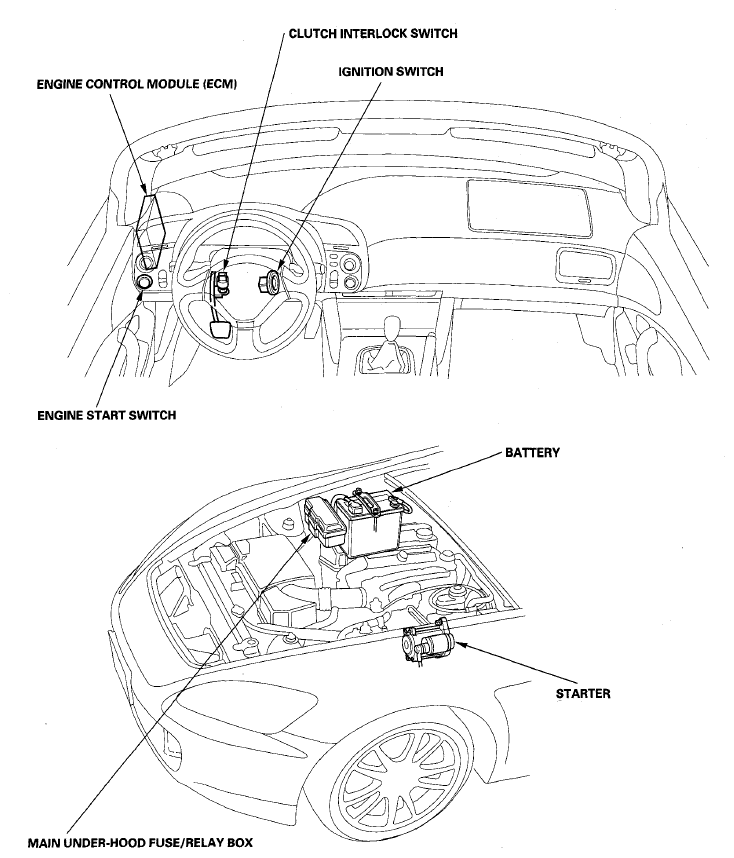

Fig 1: Identifying Starting System Component Location
G06231526Courtesy of AMERICAN HONDA MOTOR CO., INC.
