Views 76-100: 100

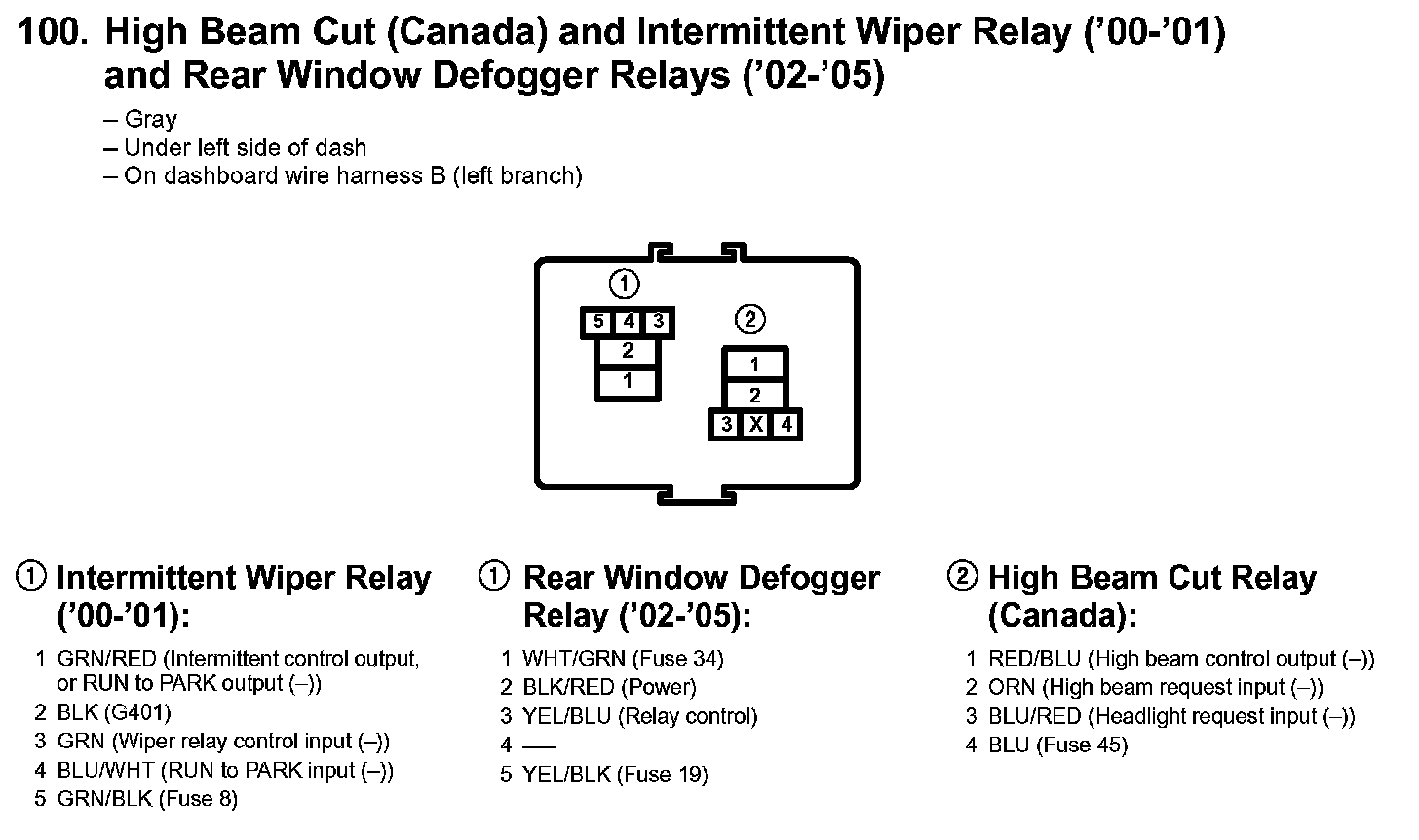

100. High Beam Cut (Canada) And Intermittent Wiper Relay ('00-'01) And Rear Window Defogger Relays ('02-'05):



165. Raer Window Defogger Change Relay:
