Wiper Relay: Locations

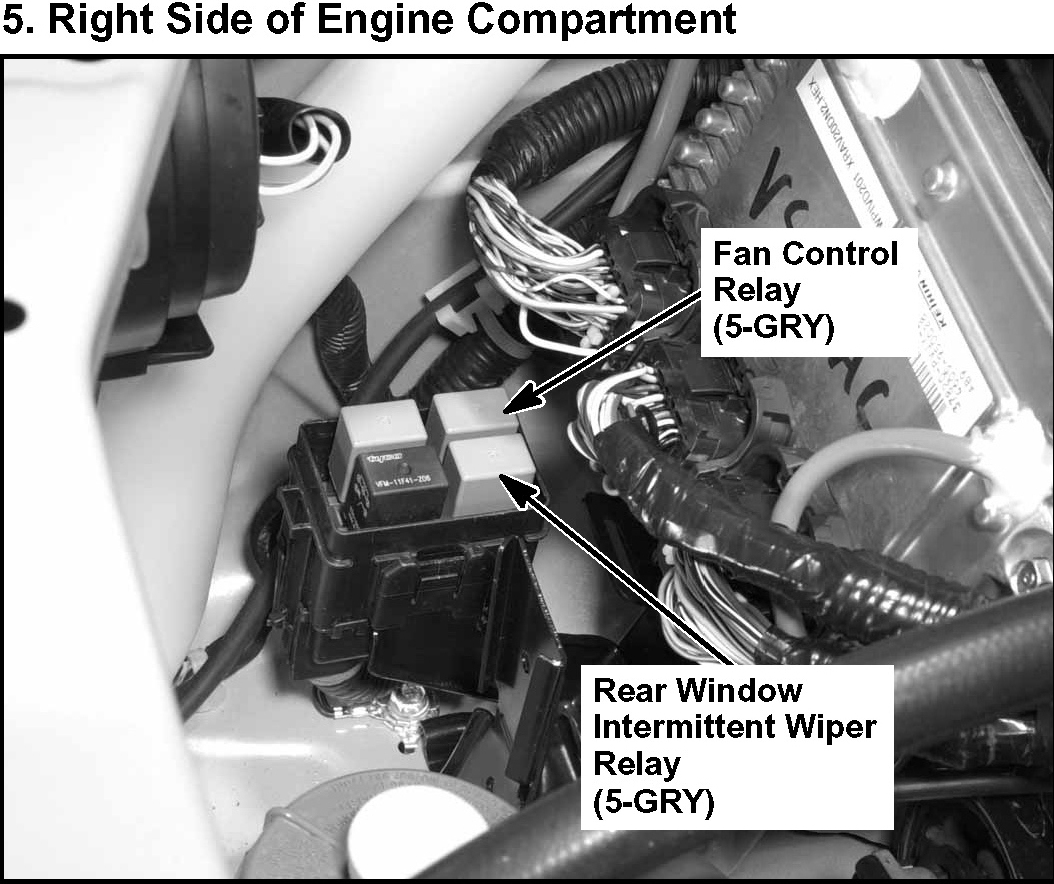

5. Right Side Of Engine Compartment:

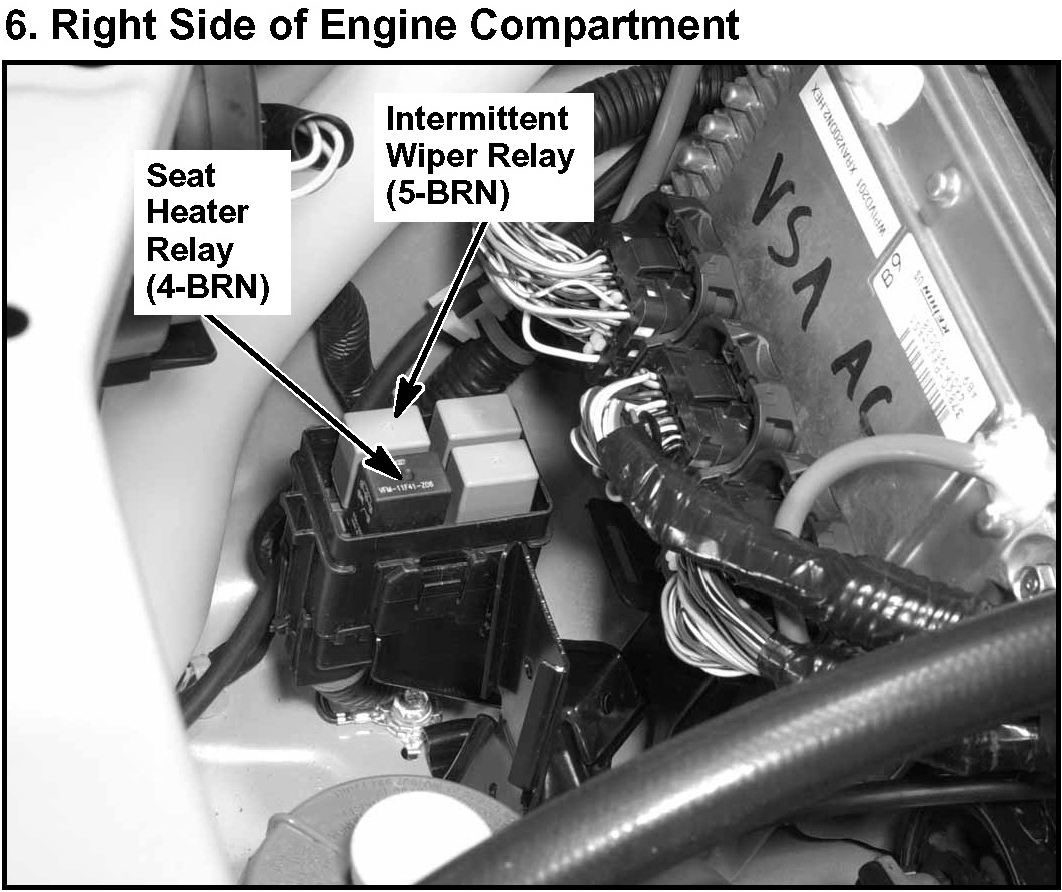

6. Right Side Of Engine Compartment:



Relay And Control Unit Locations - Engine Compartment:

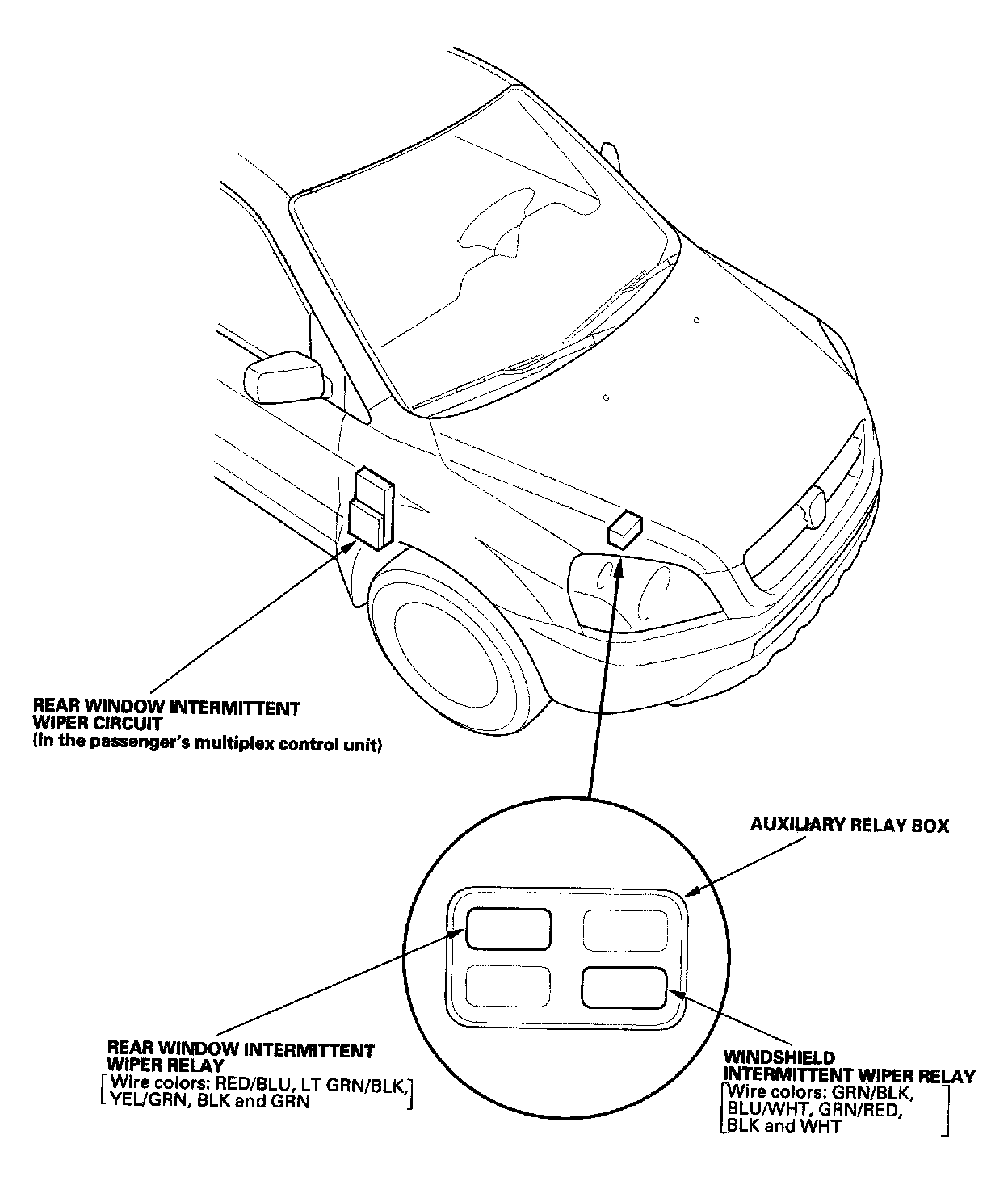

Wipers/washers - Component Location Index:
