PCM Electrical Connections

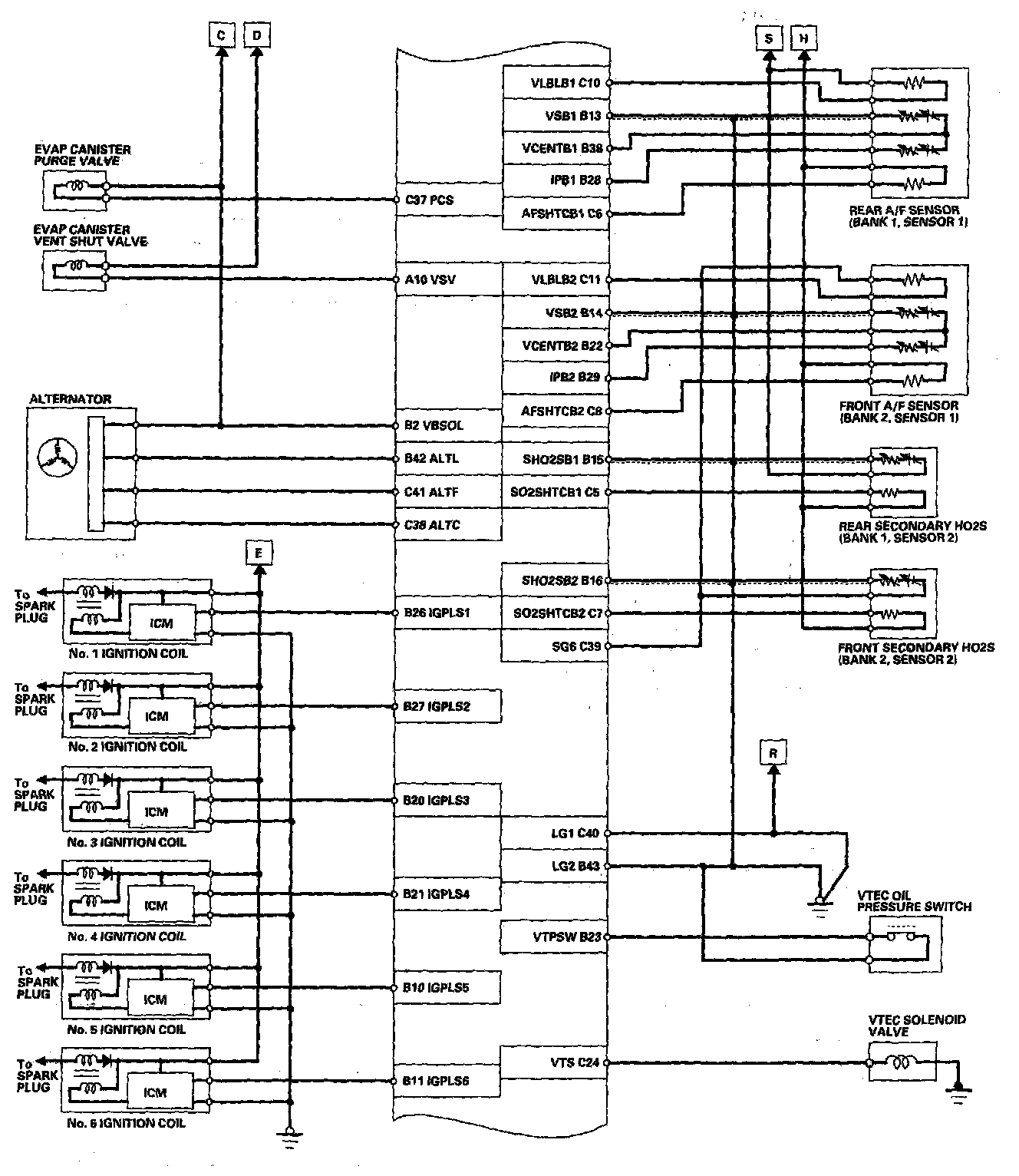

PCM Electrical Connections Part 1:

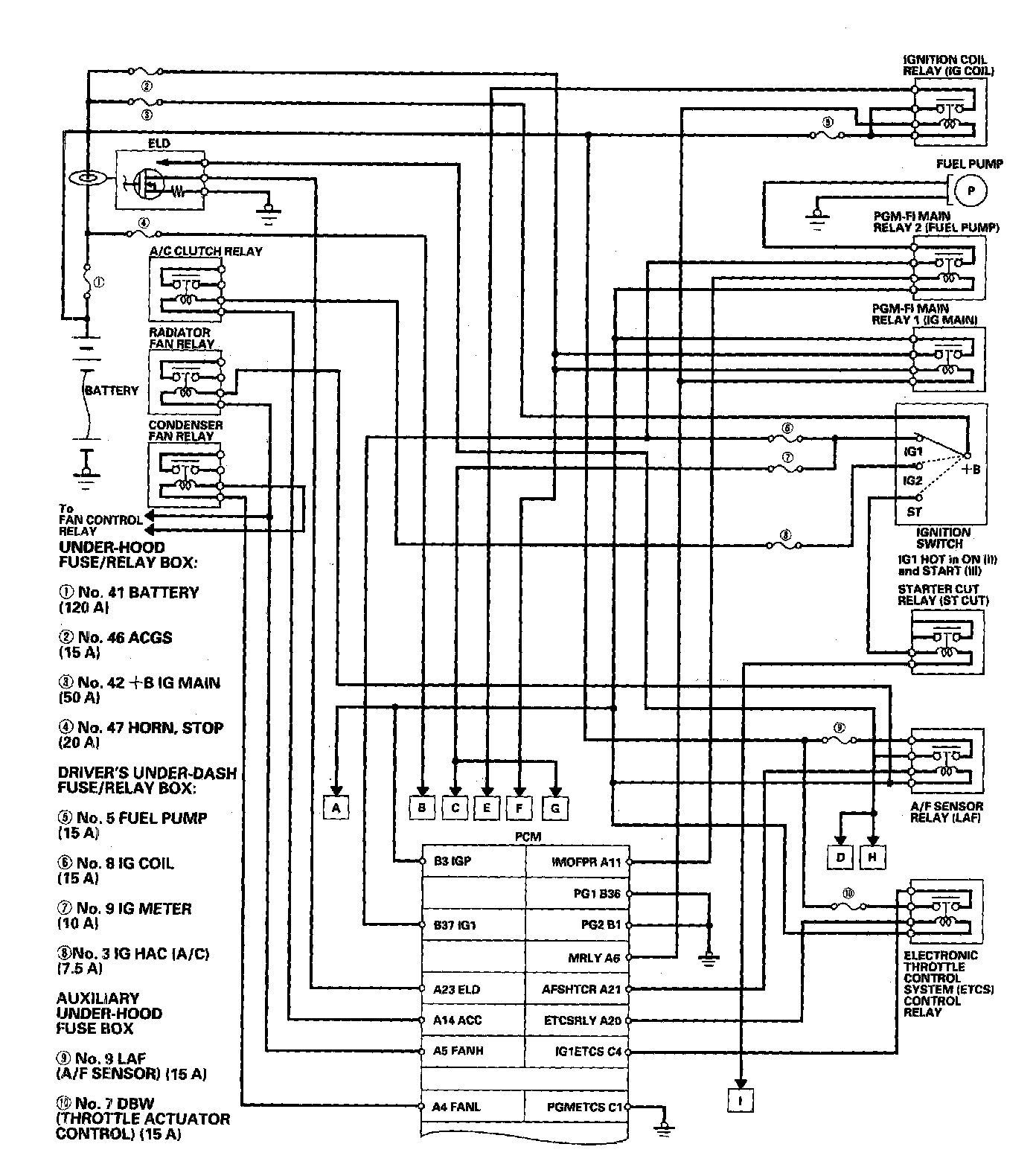

PCM Electrical Connections Part 2:

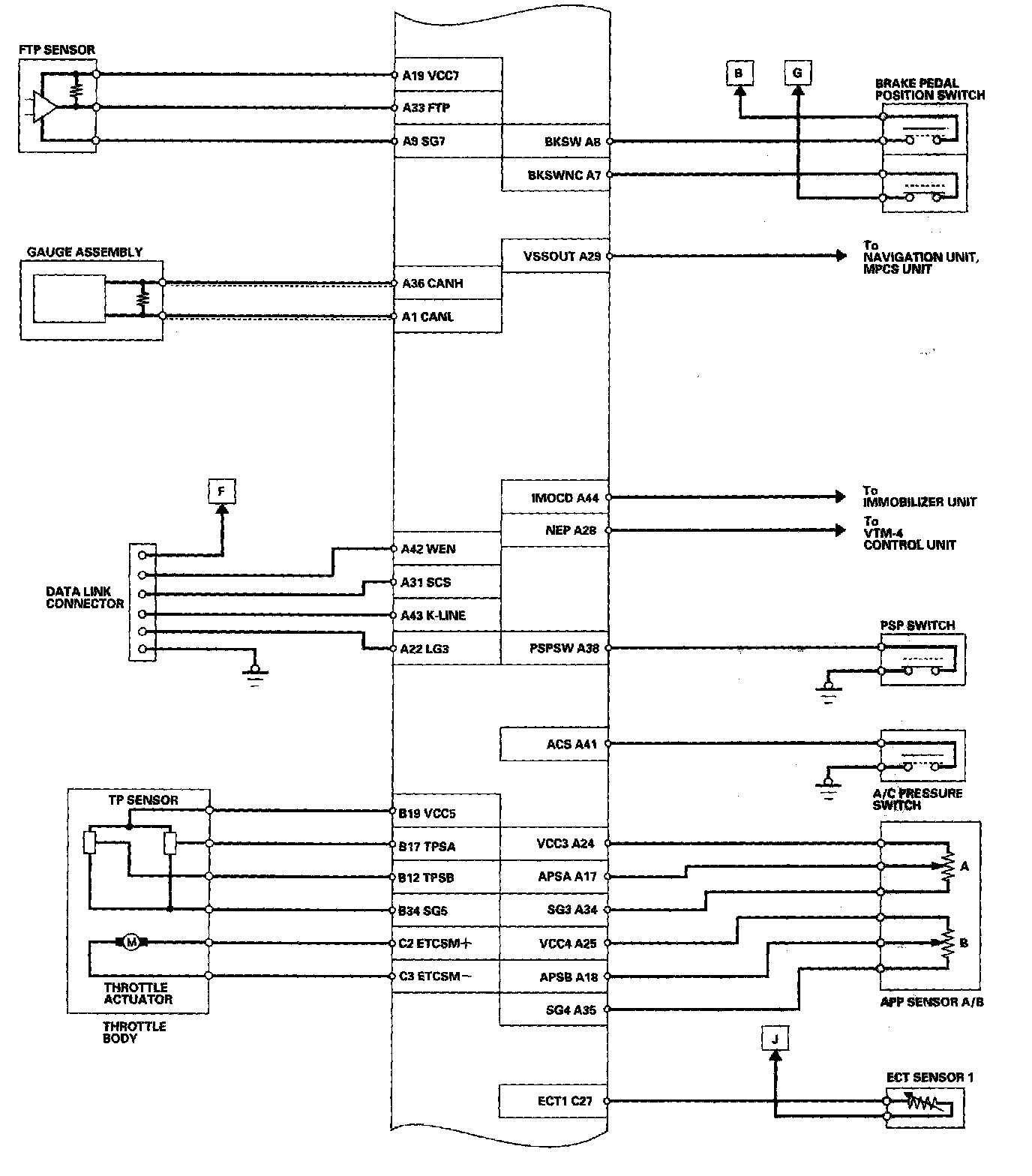

PCM Electrical Connections Part 3:

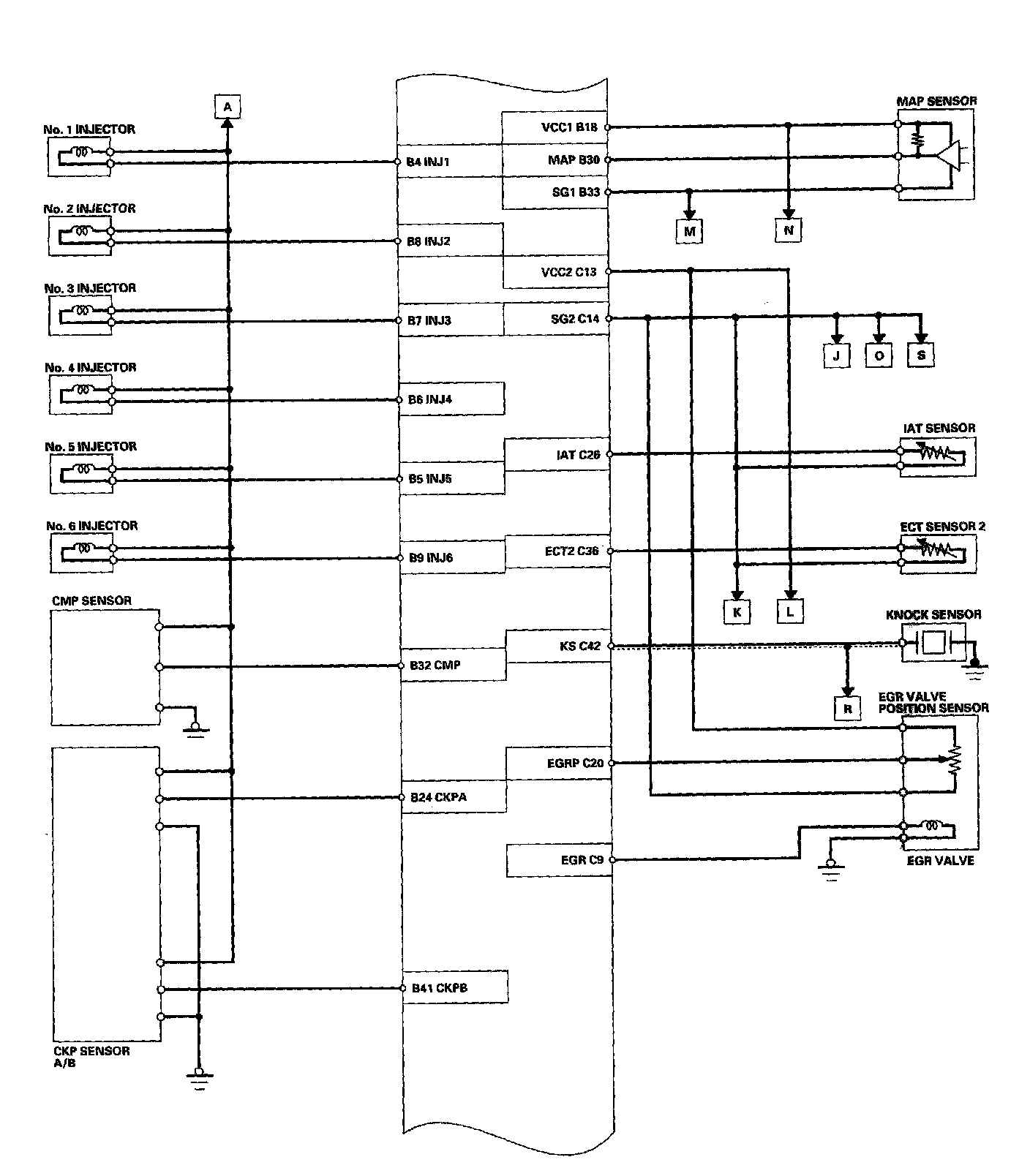

PCM Electrical Connections Part 4:

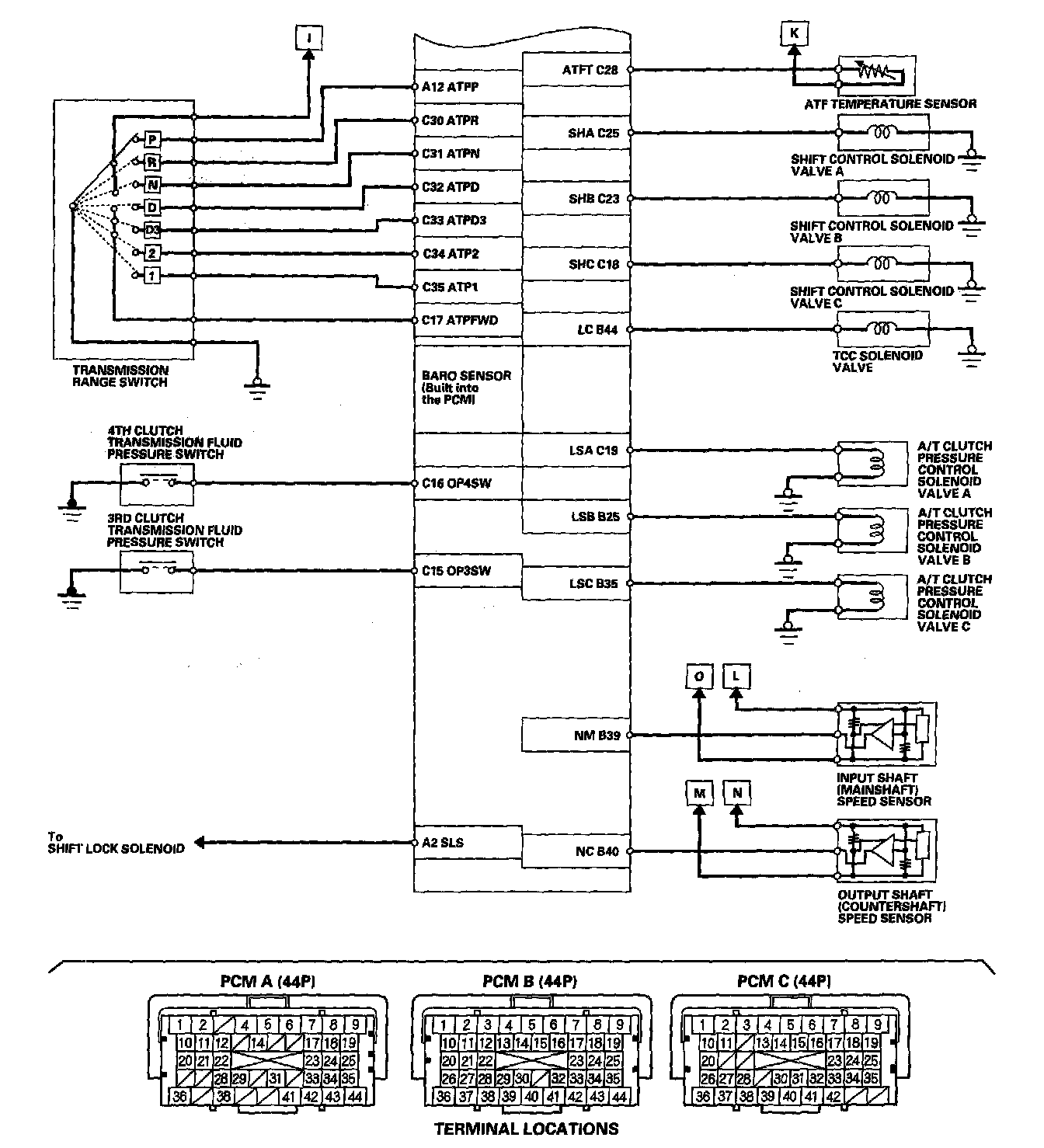

PCM Electrical Connections Part 5:
