Circuit Diagram

Fig 1: Circuit Diagram - VSA System Components (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

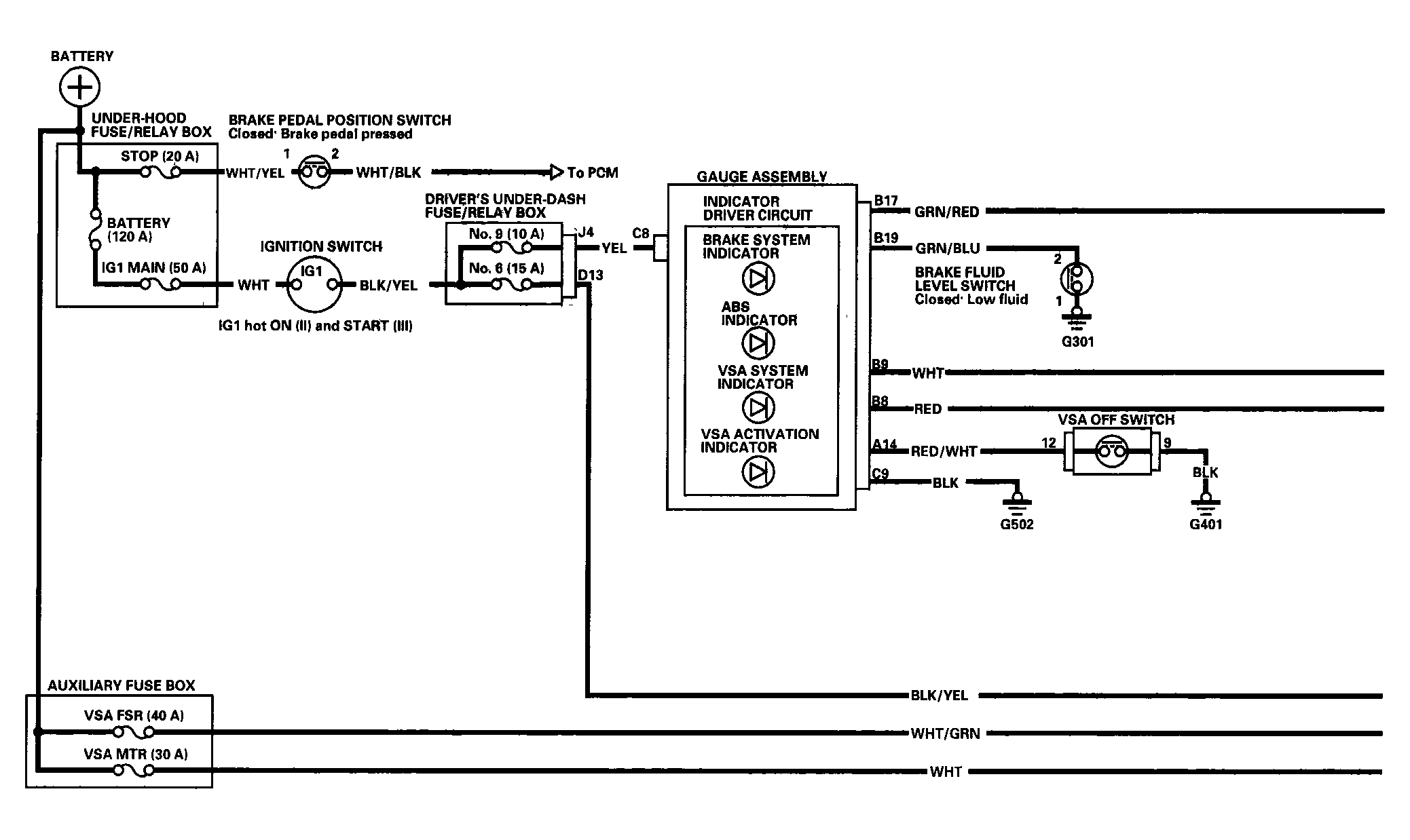

Fig 2: Circuit Diagram - VSA System Components (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

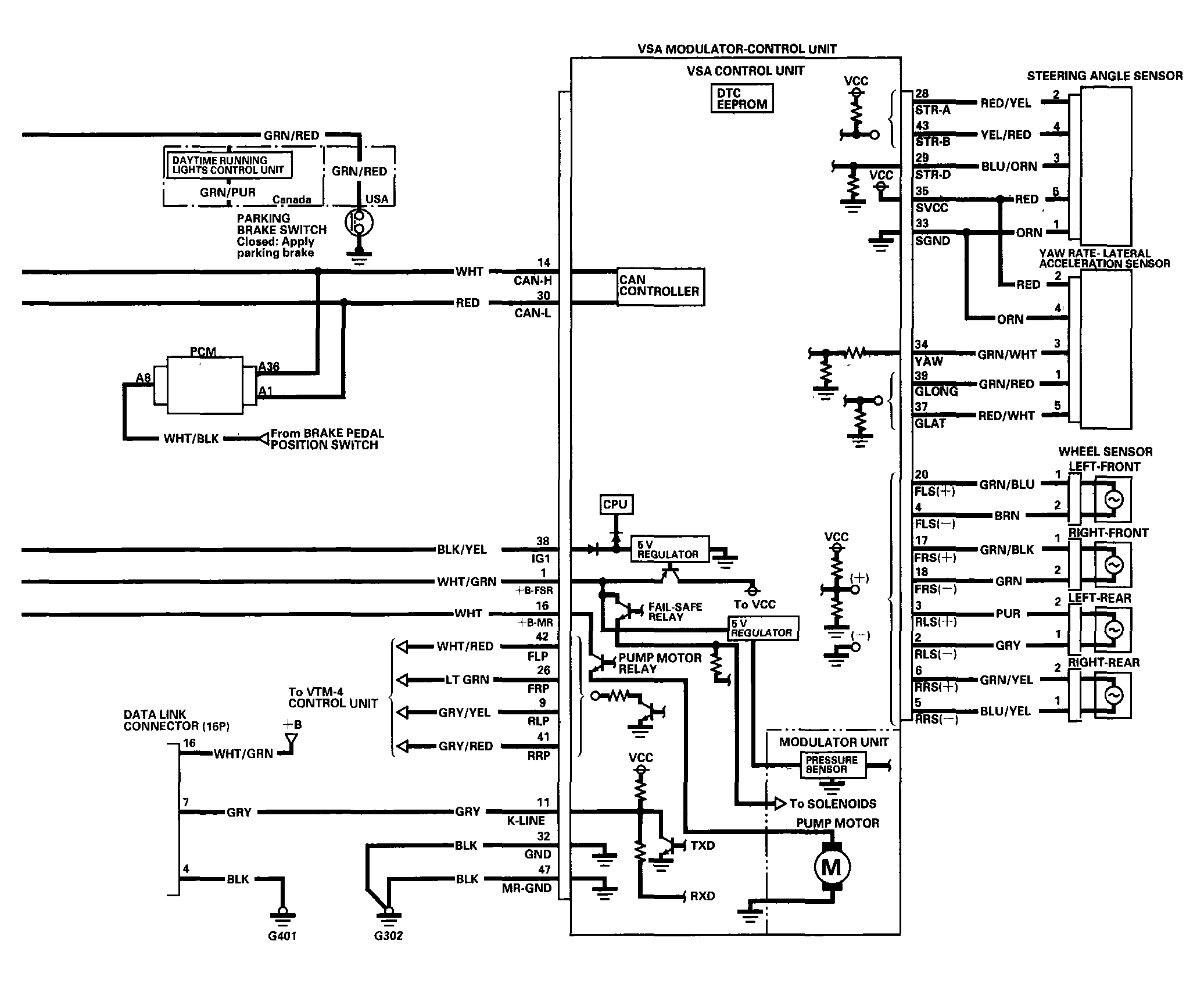

Fig 3: Circuit Diagram - VSA System Components (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
