Circuit Diagram

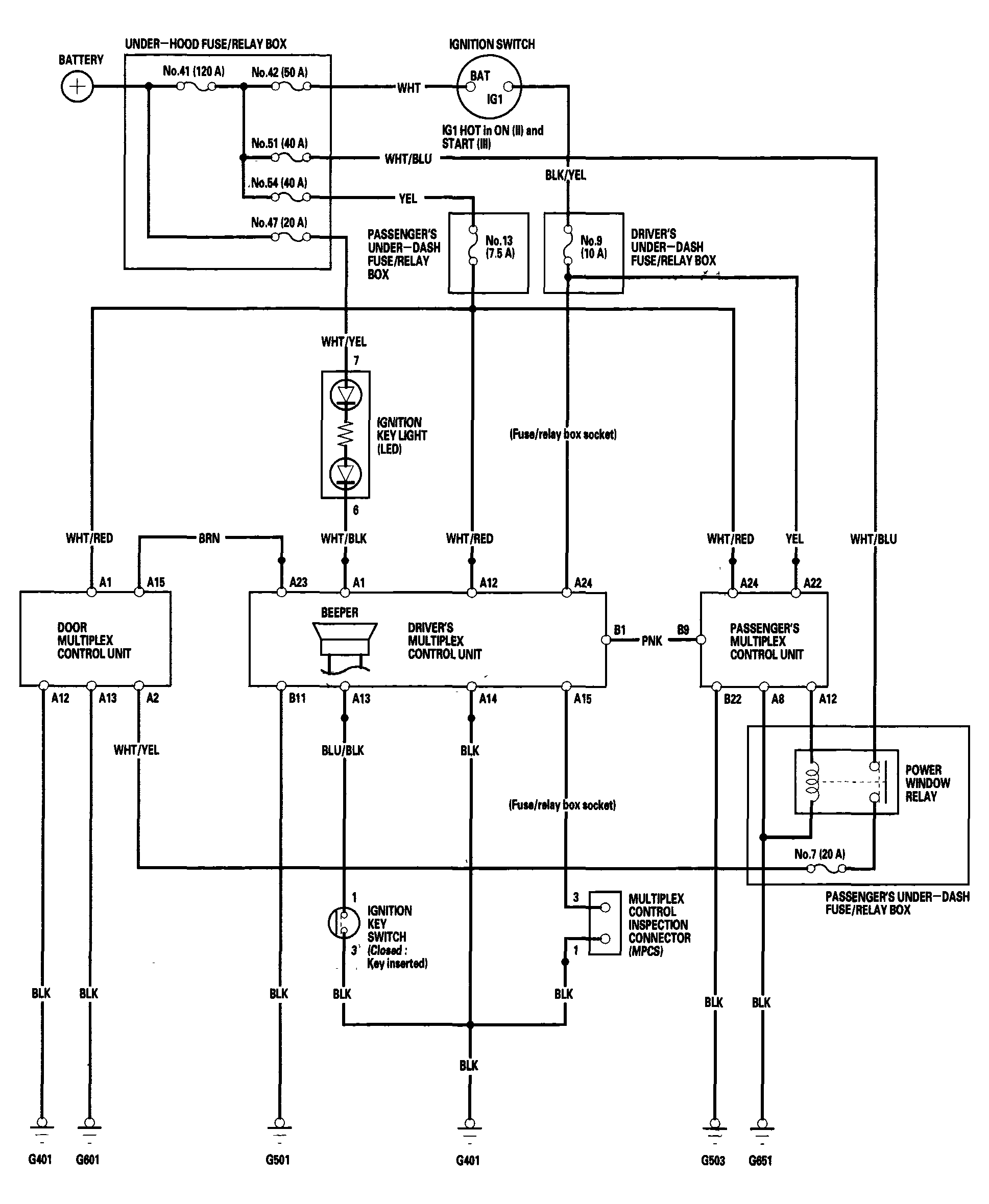

Fig 1: Multiplex Control System Circuit Diagram

G04548397

Courtesy of AMERICAN HONDA MOTOR CO., INC.
