With Power Adjustable Pedals

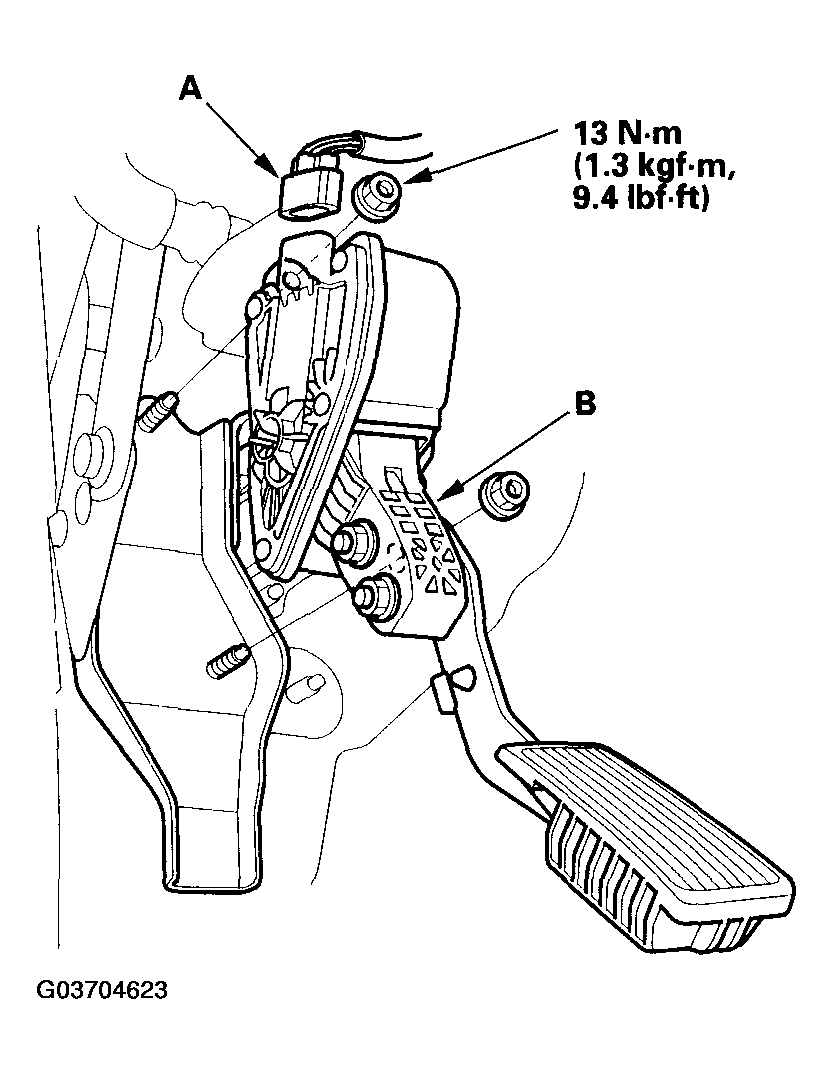

- Disconnect accelerator pedal position (APP) sensor A/B 6P connector (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the accelerator pedal (B).
NOTE:
The APP sensor is not available separately. Do not disassemble the accelerator pedal assembly.
- Install the accelerator pedal in the reverse order of removal.
- Adjust the brake pedal height (see PEDAL HEIGHT ON MODEL WITH POWER ADJUSTABLE PEDALS
).
