EVAP Canister Purge Valve Replacement

  1. Disconnect the hoses (A) and the EVAP canister purge valve 2P connector (B).

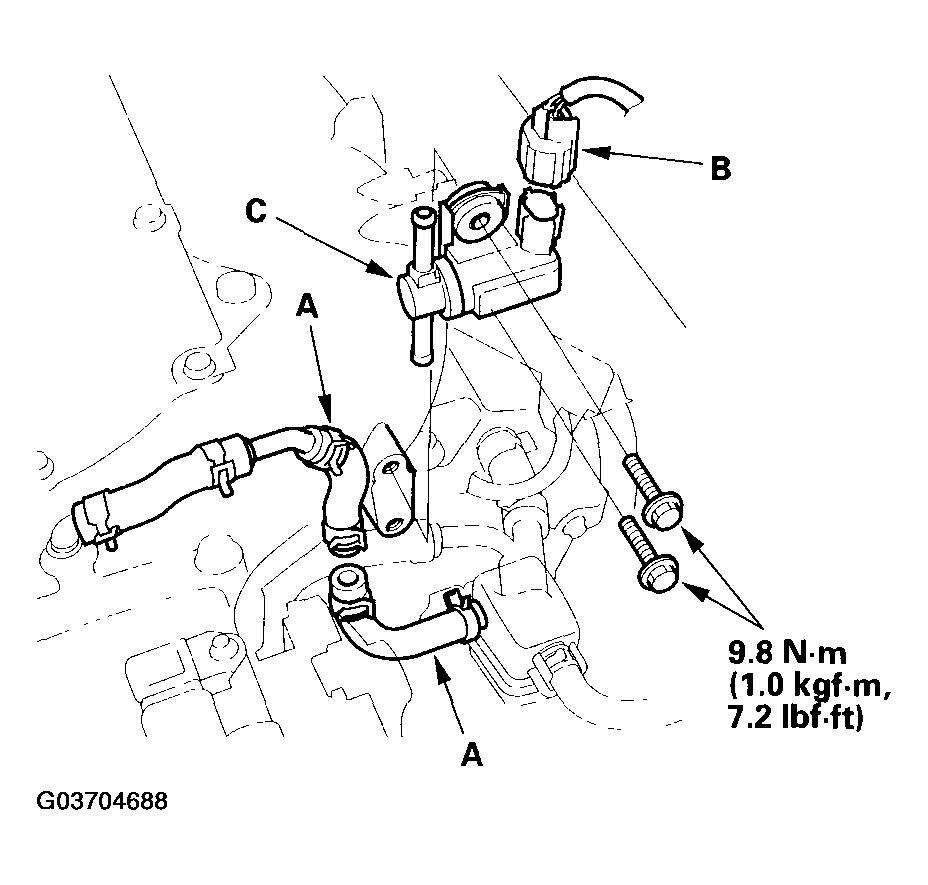

    Fig 1: Disconnecting Hoses And EVAP Canister Purge Valve 2P Connector
    G03704688Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the EVAP canister purge valve (C).
  3. Install the valve in the reverse order of removal.
