Engine Mount Replacement

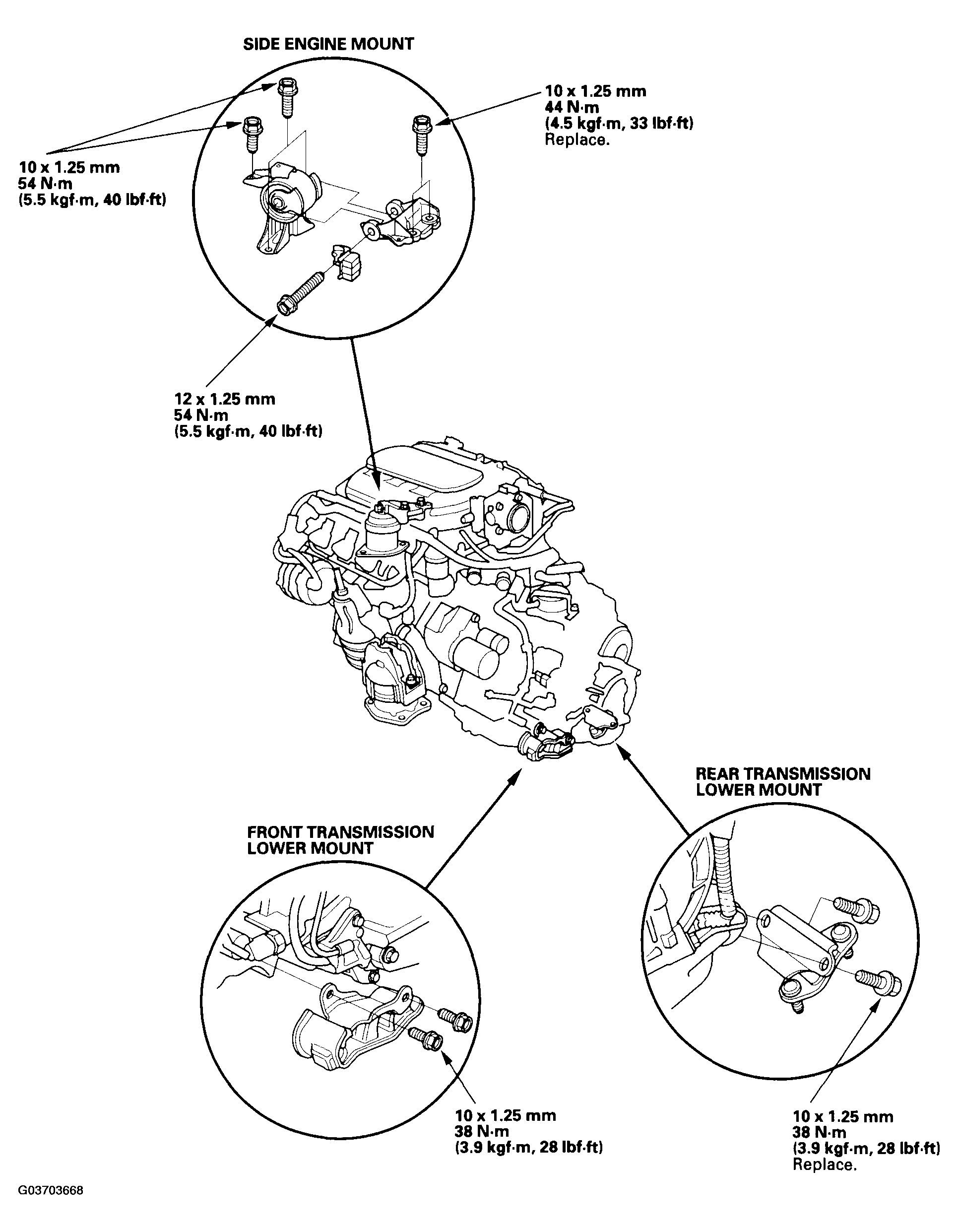

Fig 1: Replacing Engine Mount

G03703668

Courtesy of AMERICAN HONDA MOTOR CO., INC.
