Except VAN, LX

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ), before doing repairs or service.

1. Remove the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).
2. Remove the four screws, then disconnect the connectors, and remove the switch.

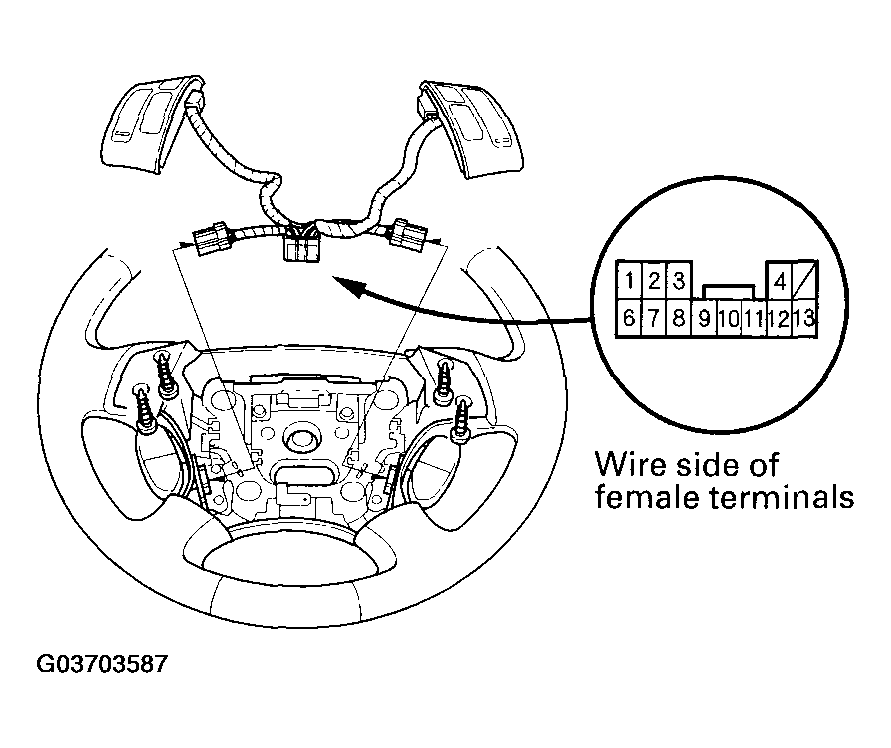

   Fig 1: Disconnecting Connectors And Removing Switch (Except VAN, LX)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Check for continuity between the terminals in each switch position according to the table shown in Fig 2 .
   • If there is continuity, and it matches the table, but switch failure occurred on the cruise control input test, check and repair the wire harness on the switch circuit.
   • If there is no continuity in one or more positions, replace the switch.

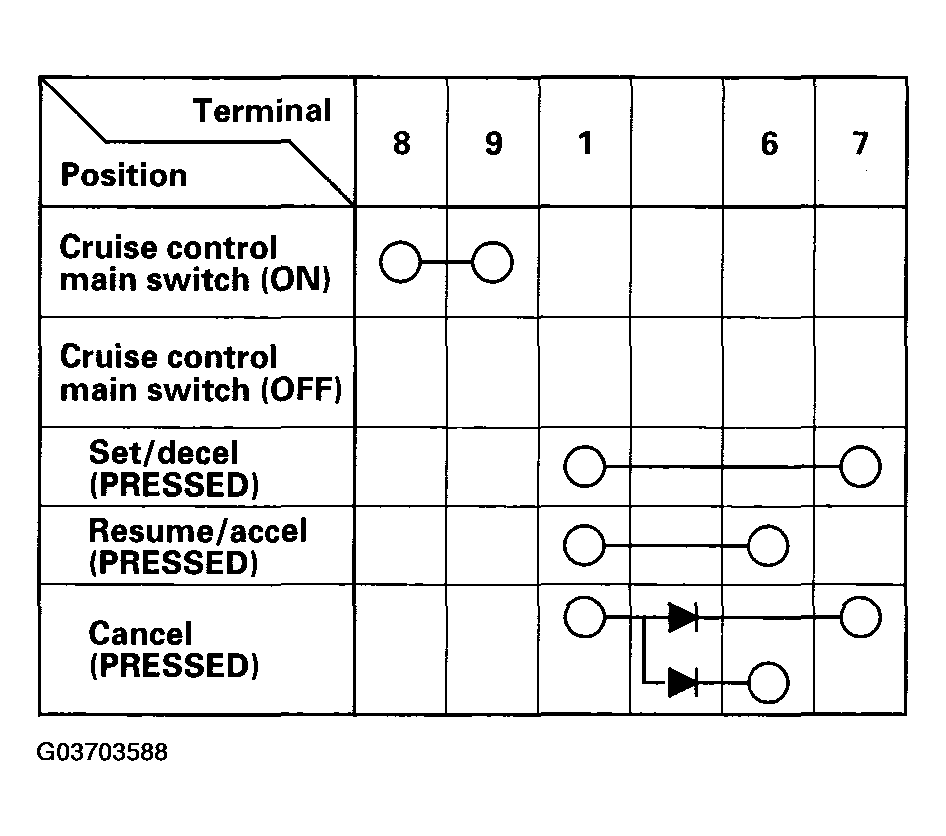

Fig 2: Checking Continuity Between Cruise Control Combination Switch Test/Replacement Chart (Except VAN, LX)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
