Component Location Index

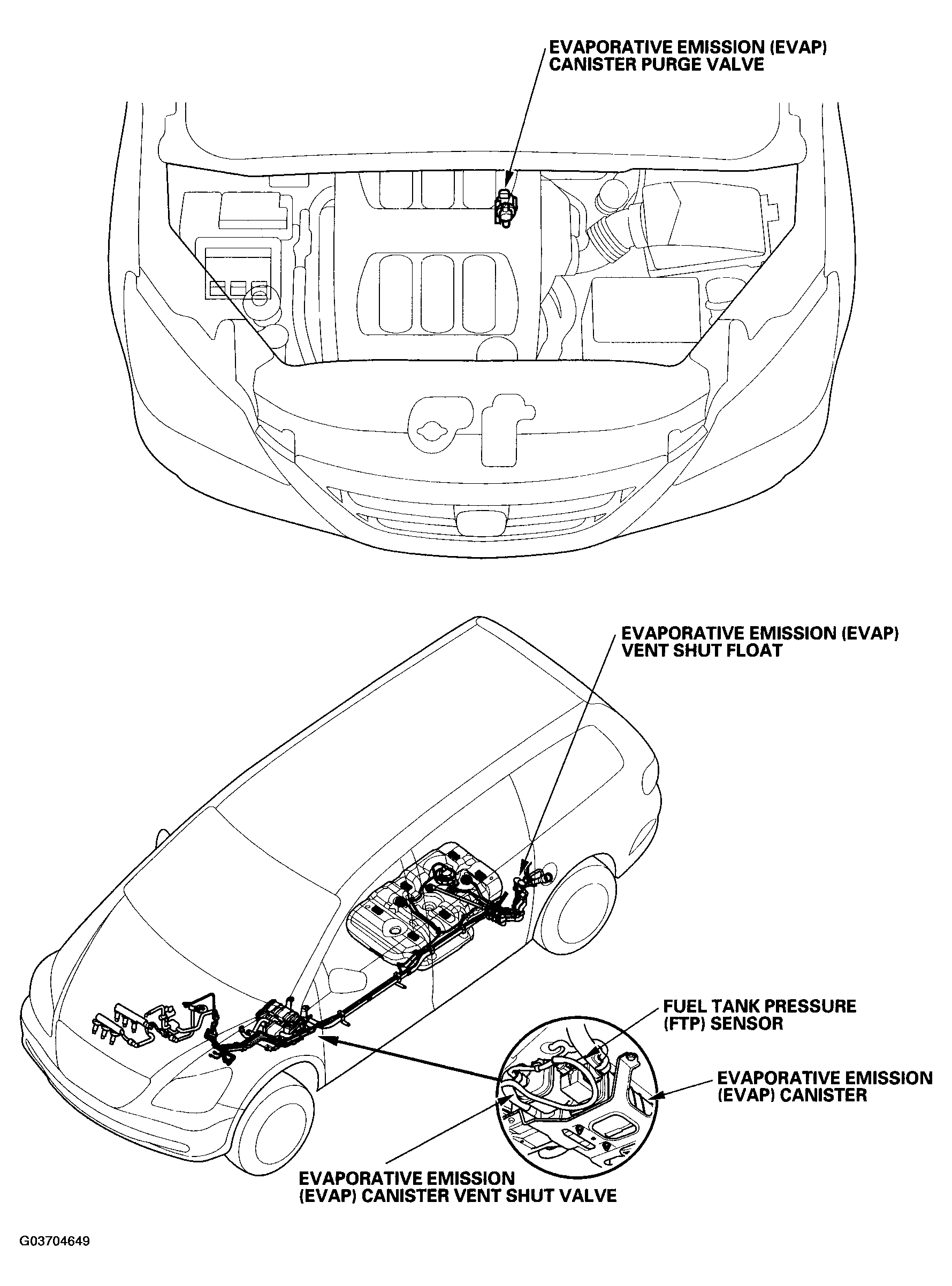

Fig 1: Identifying EVAP System Component Location
G03704649Courtesy of AMERICAN HONDA MOTOR CO., INC.
