ECM Circuit Diagrams

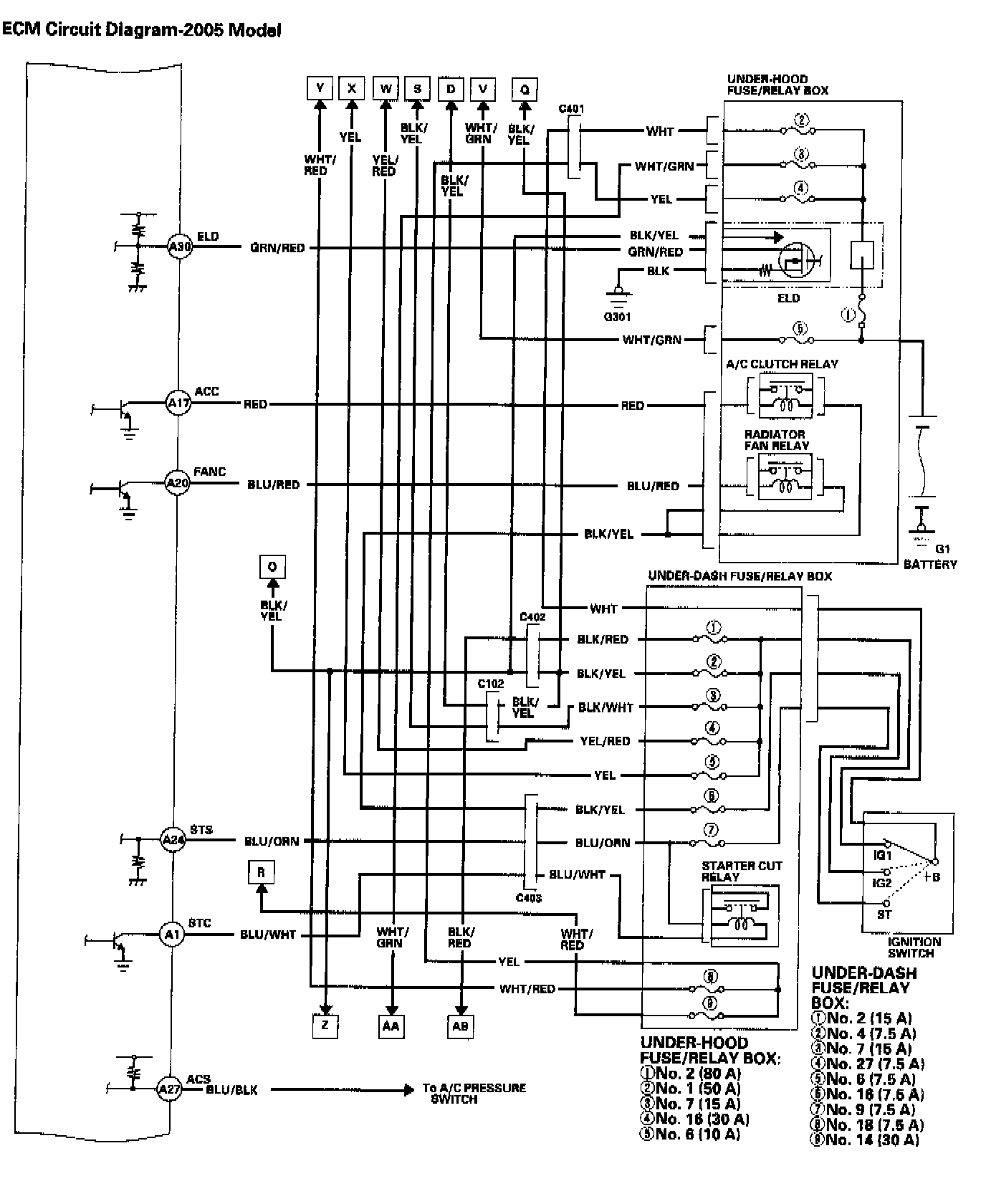

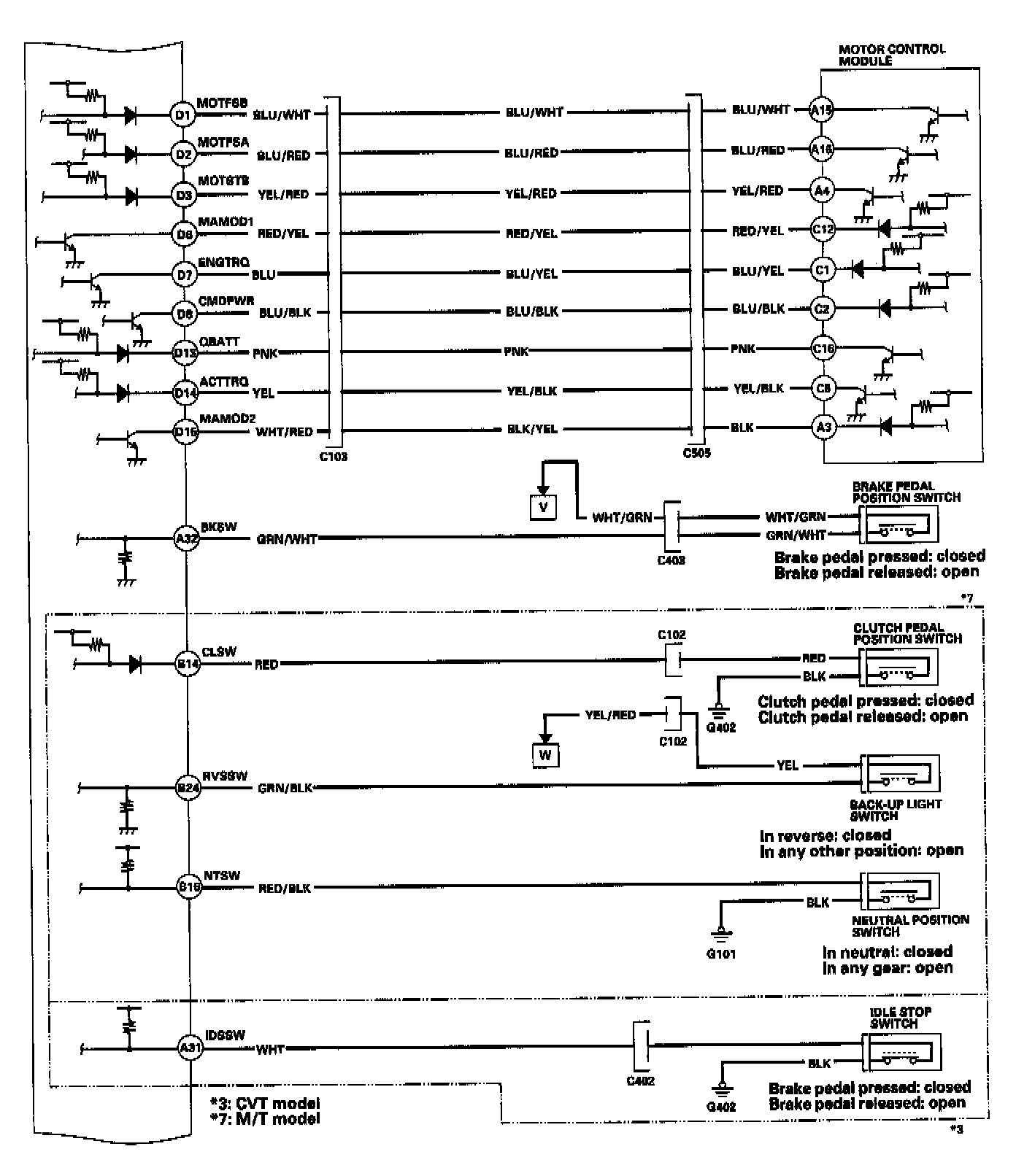

ECM Circuit Diagram Part 1:

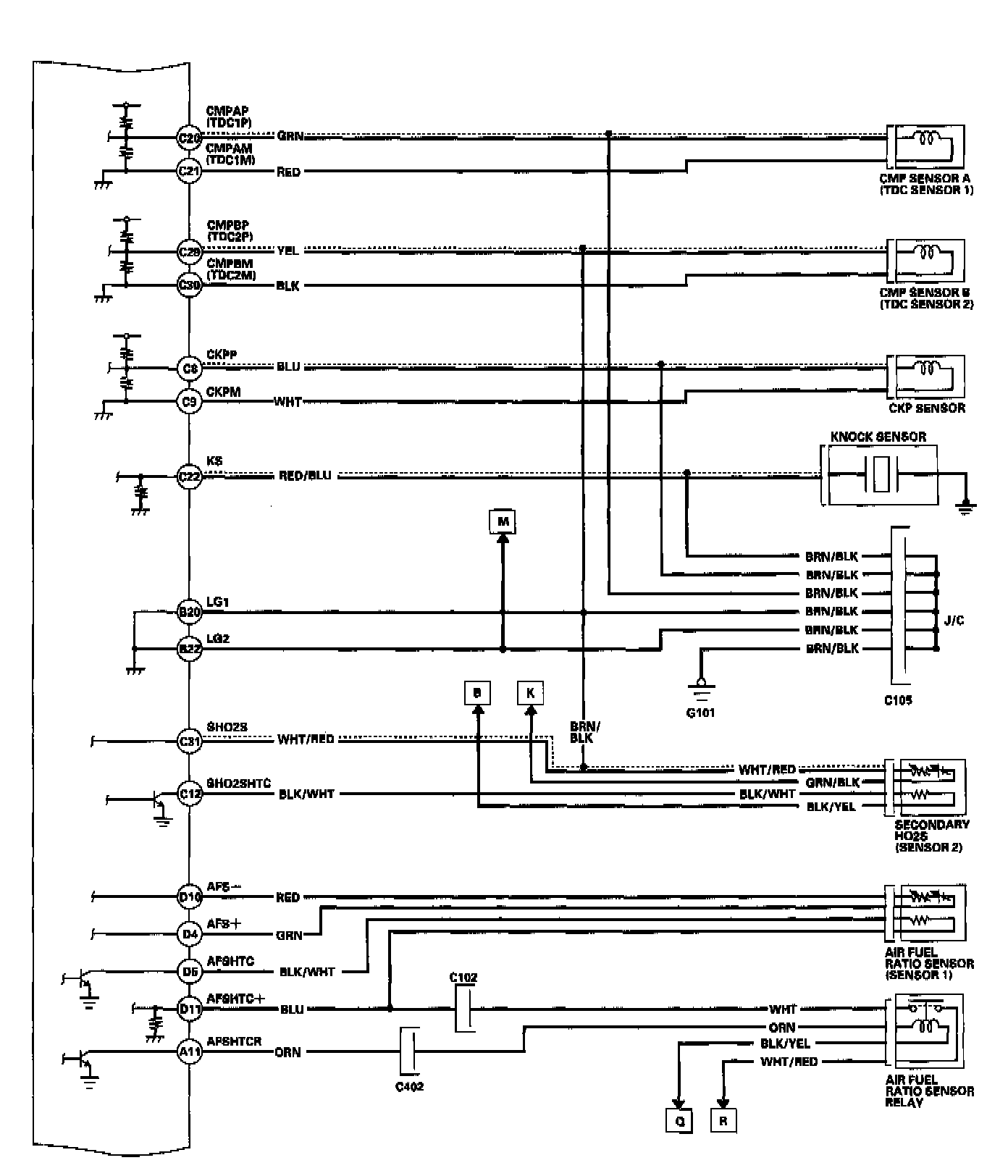

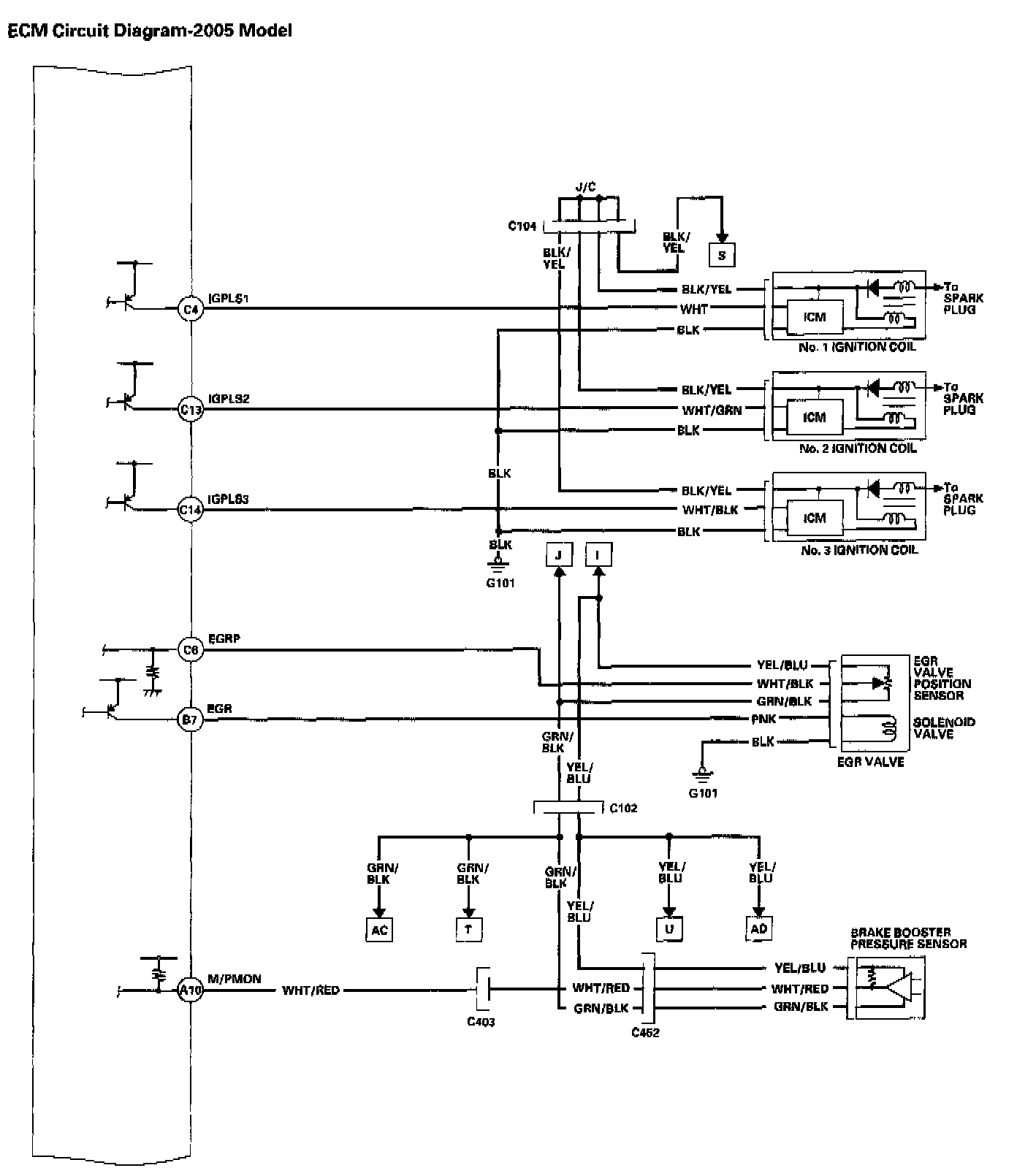

ECM Circuit Diagram Part 2:

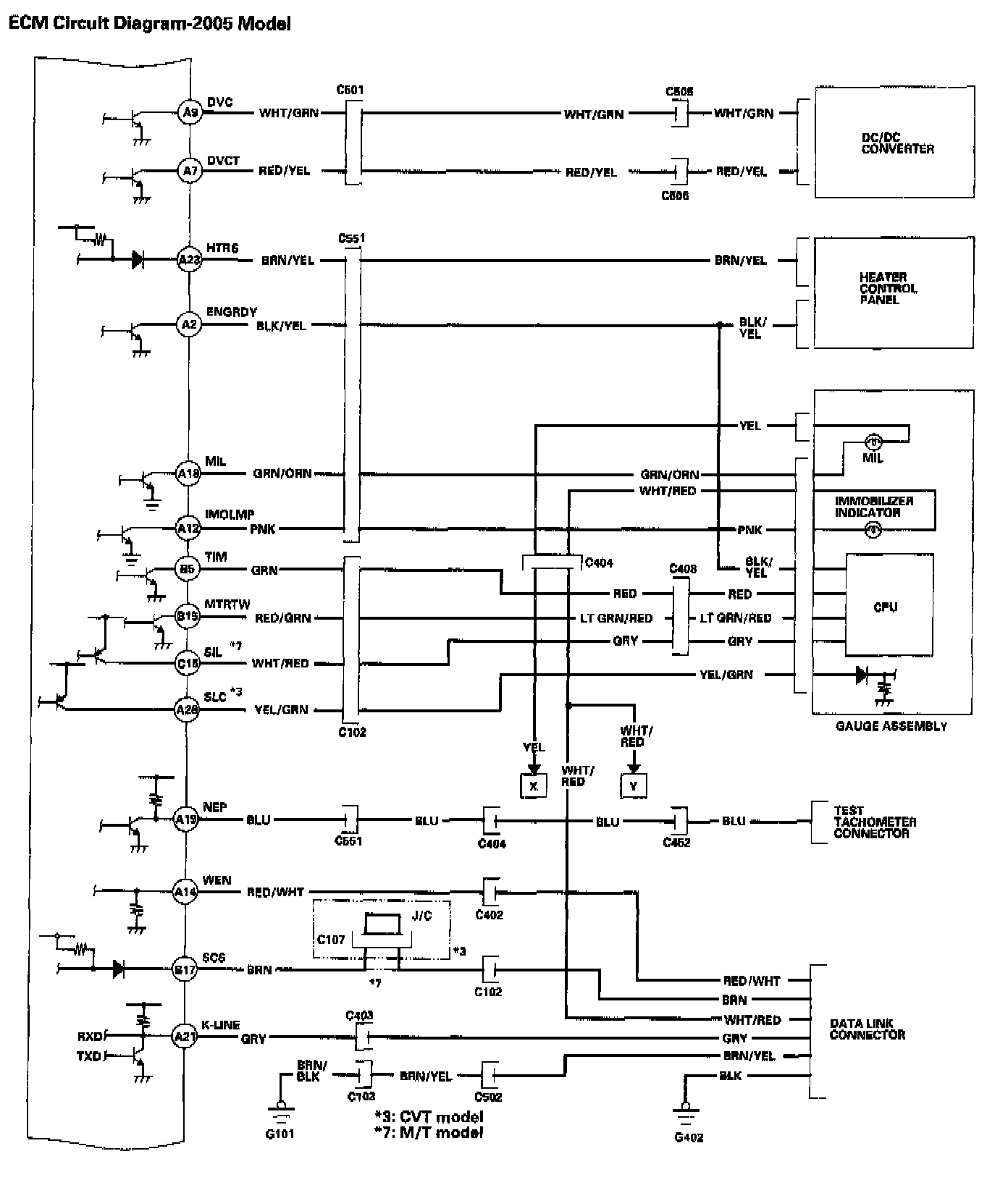

ECM Circuit Diagram Part 3:

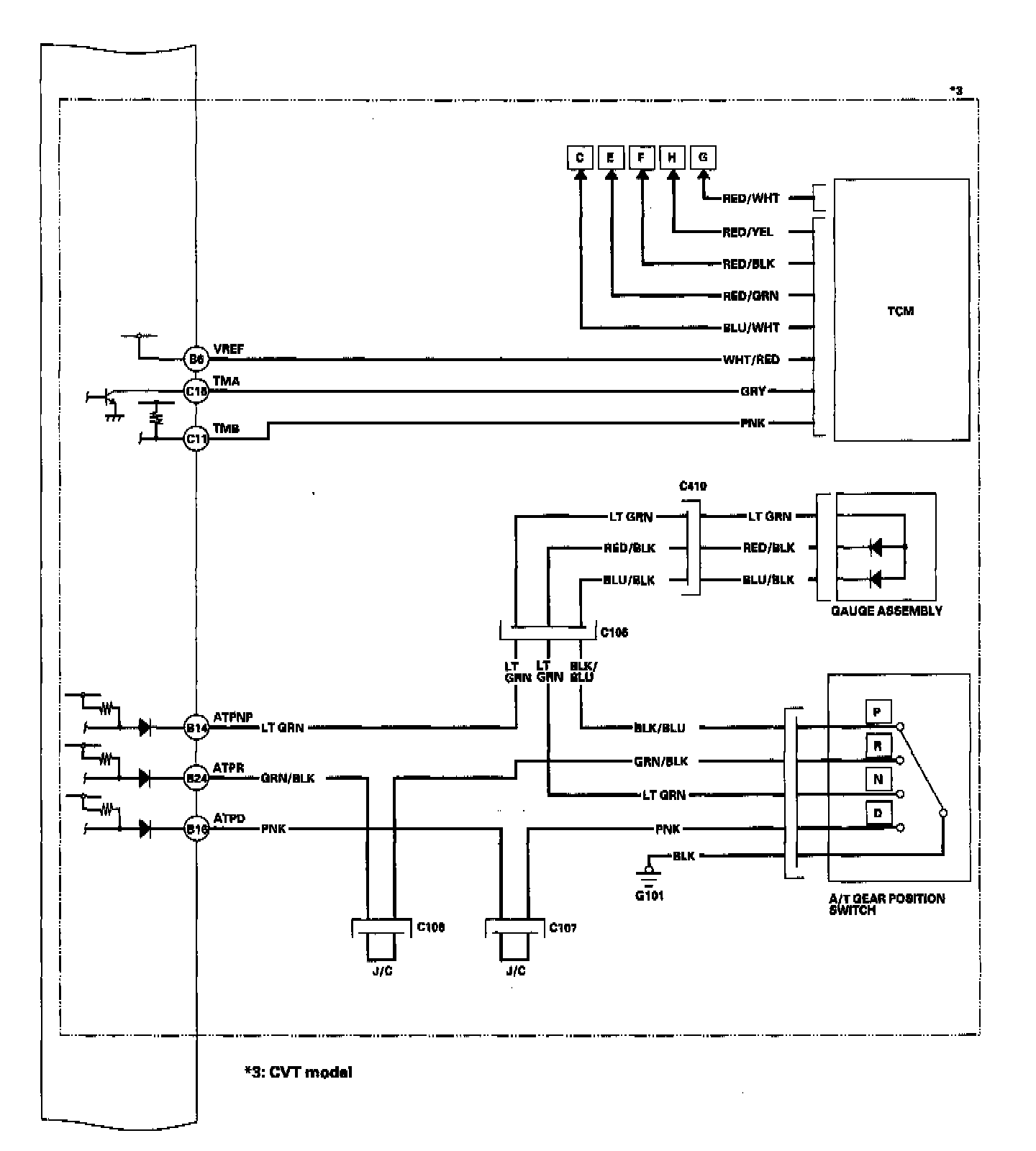

ECM Circuit Diagram Part 4:

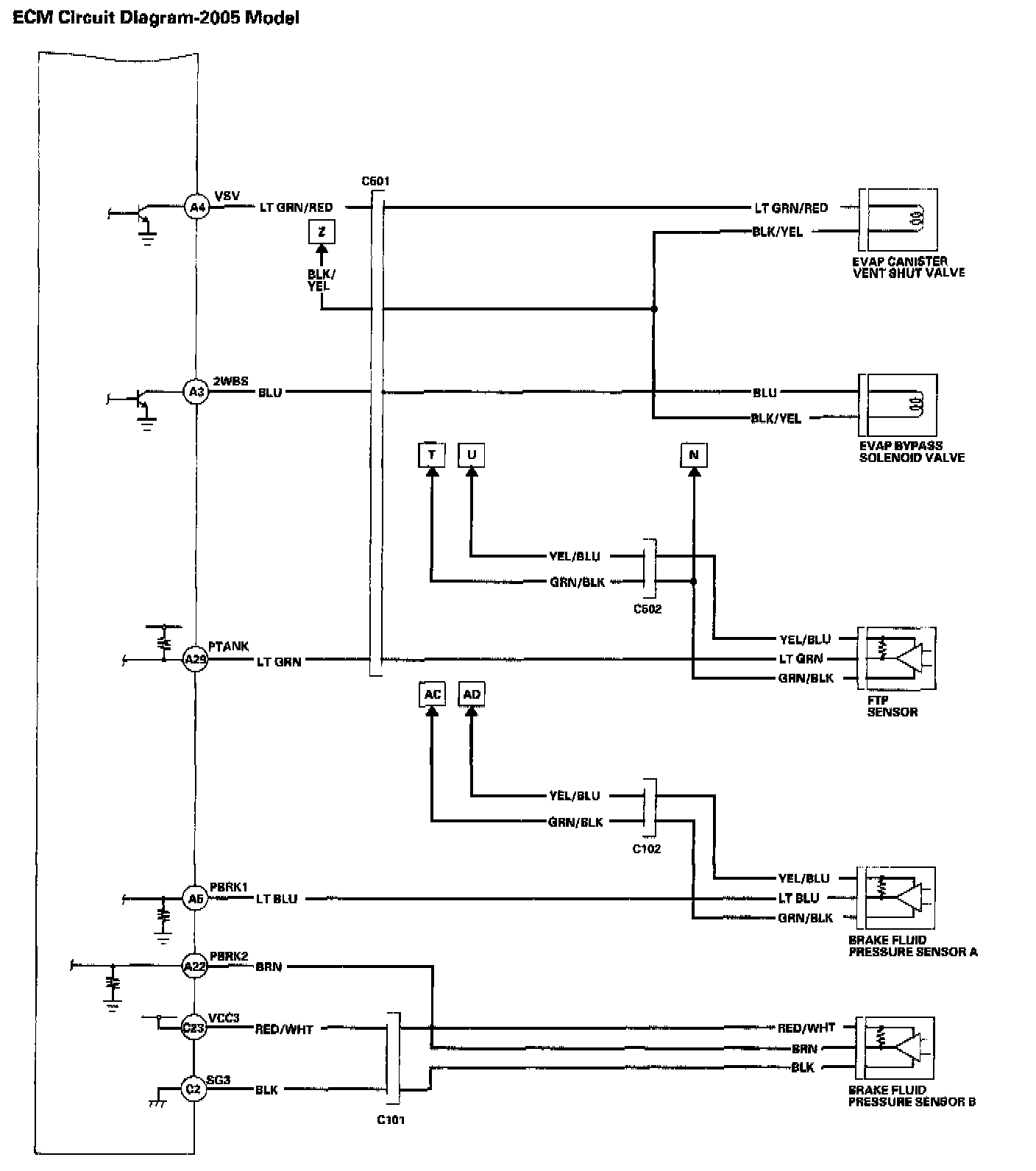

ECM Circuit Diagram Part 5:

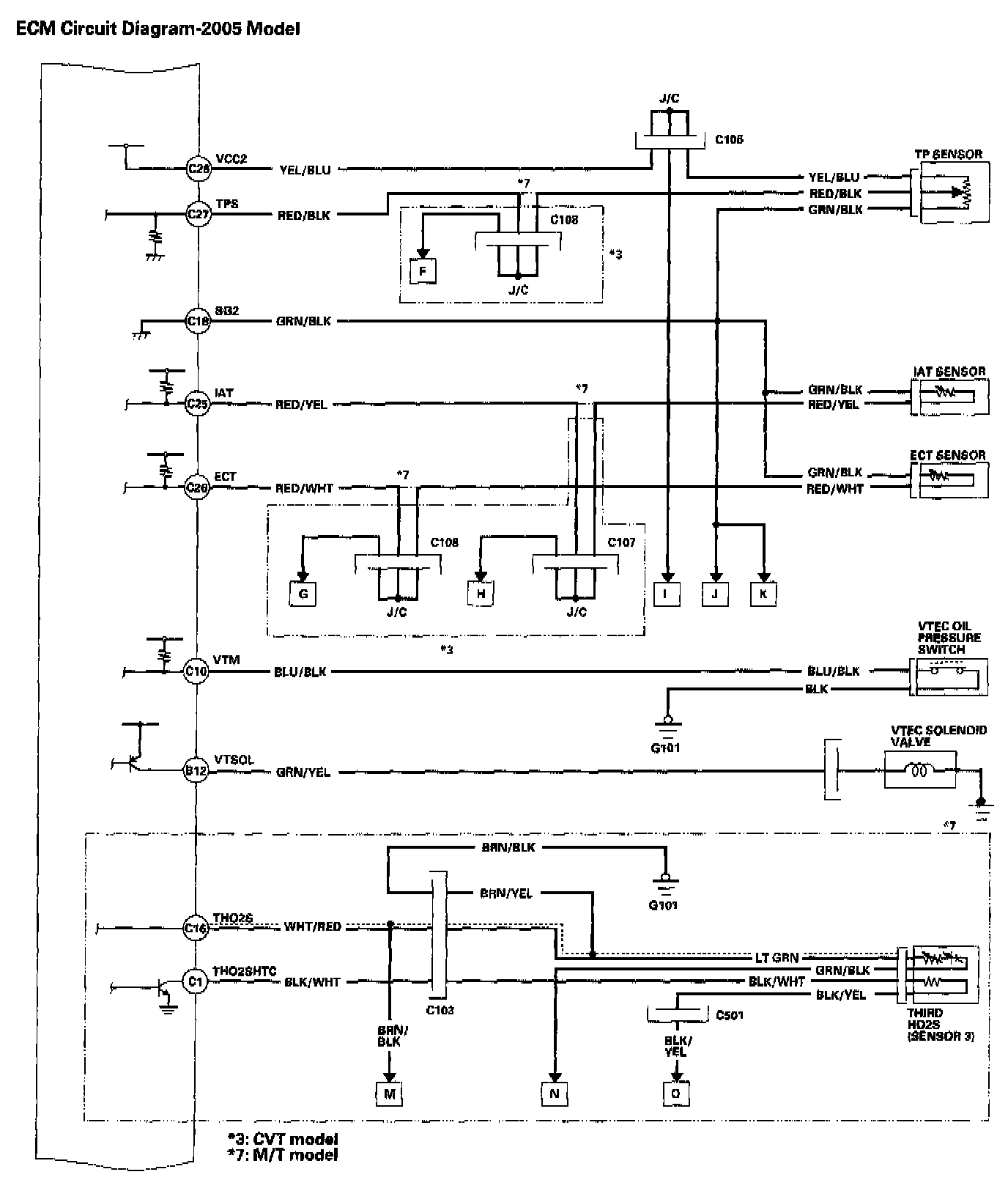

ECM Circuit Diagram Part 6:

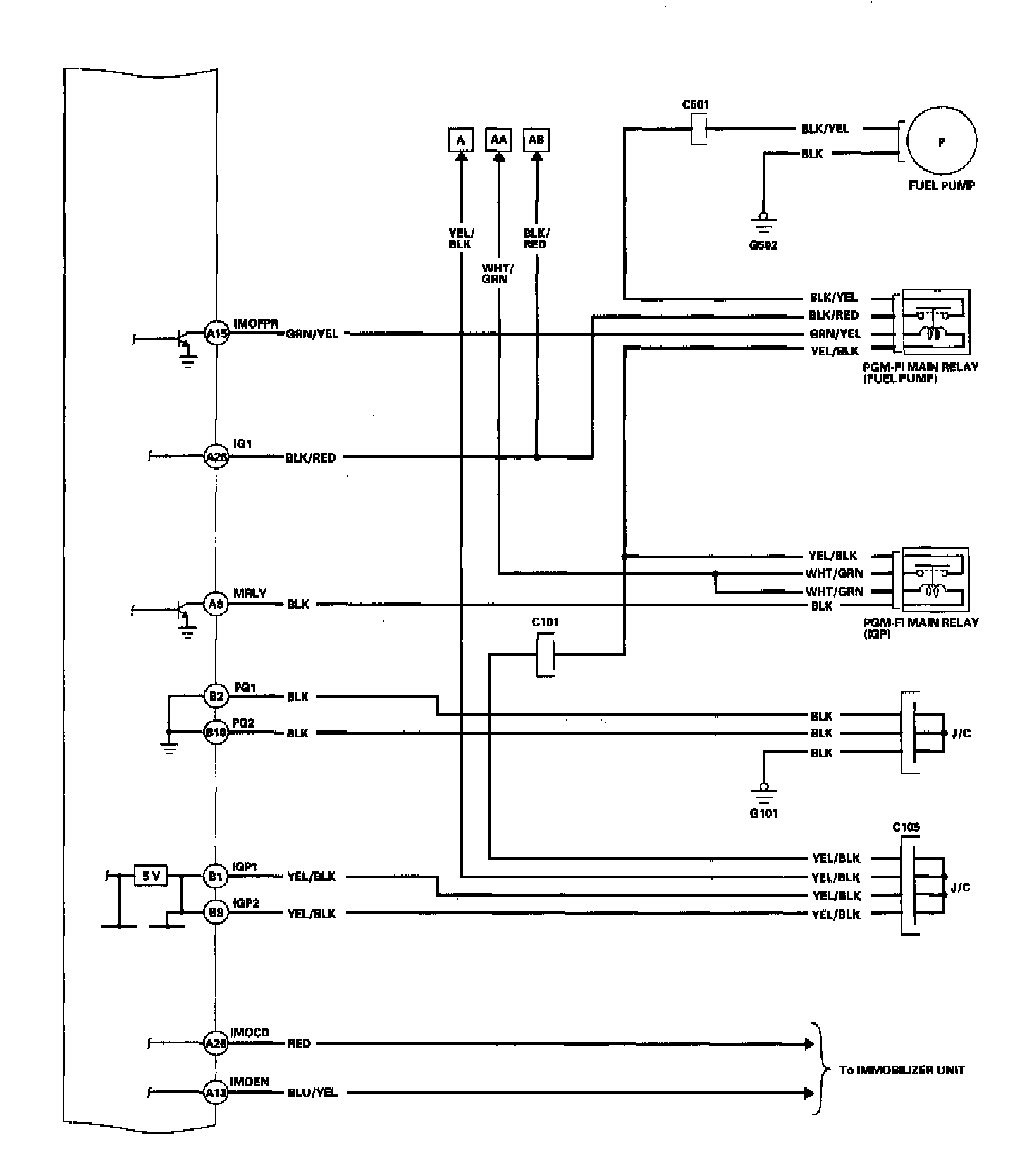

ECM Circuit Diagram Part 7:

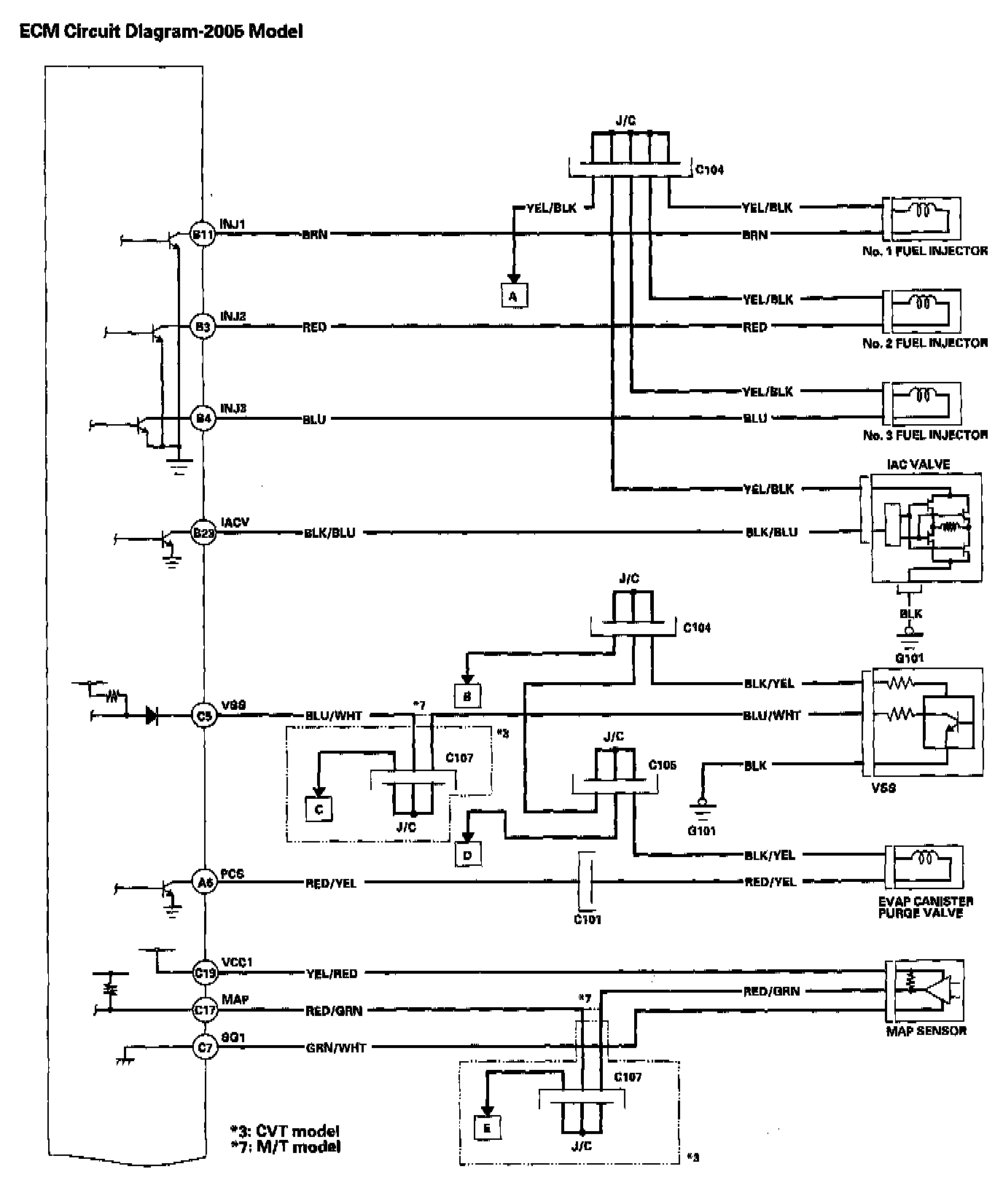

ECM Circuit Diagram Part 8:



ECM Circuit Diagram Part 9:



ECM Circuit Diagram Part 10:
