View 151-175: 173

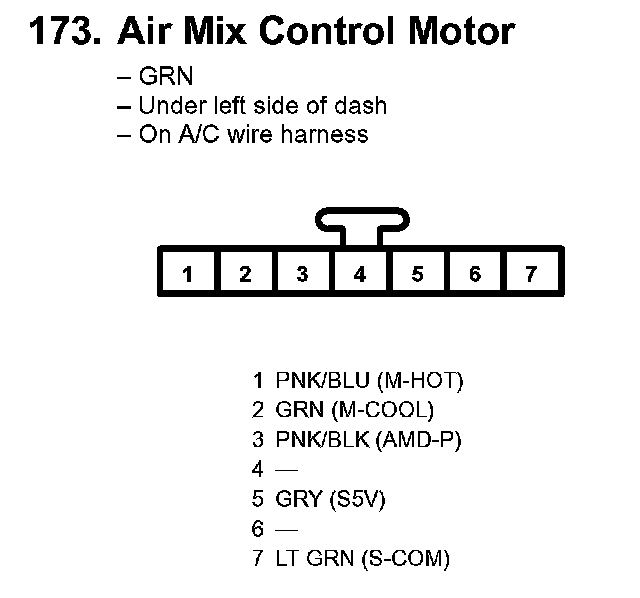

173. Air Mix Control Motor:



176. Mode Control Motor:

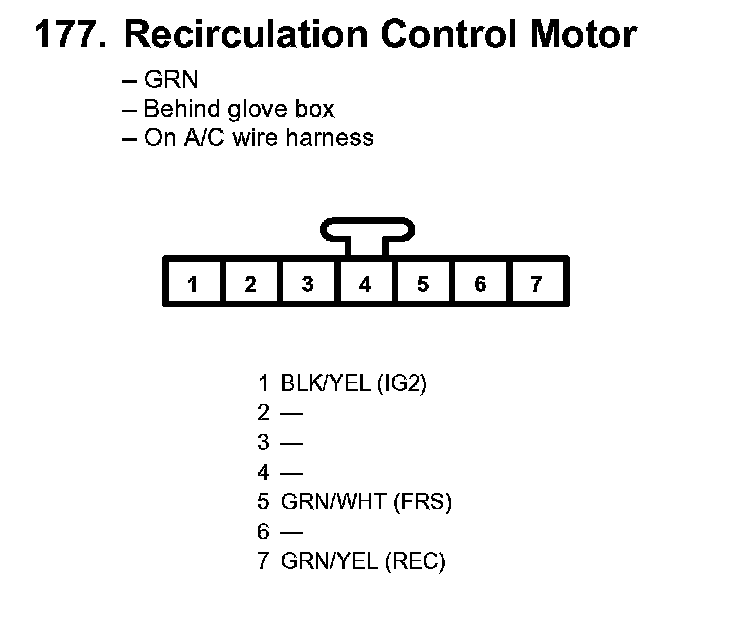

177. Recirculation Control Motor:
