Audio-HVAC Display Panel and Audio Unit Removal/Installation

Audio-HVAC Display Panel and Audio Unit Removal/Installation

1. Remove the audio-HVAC display module.

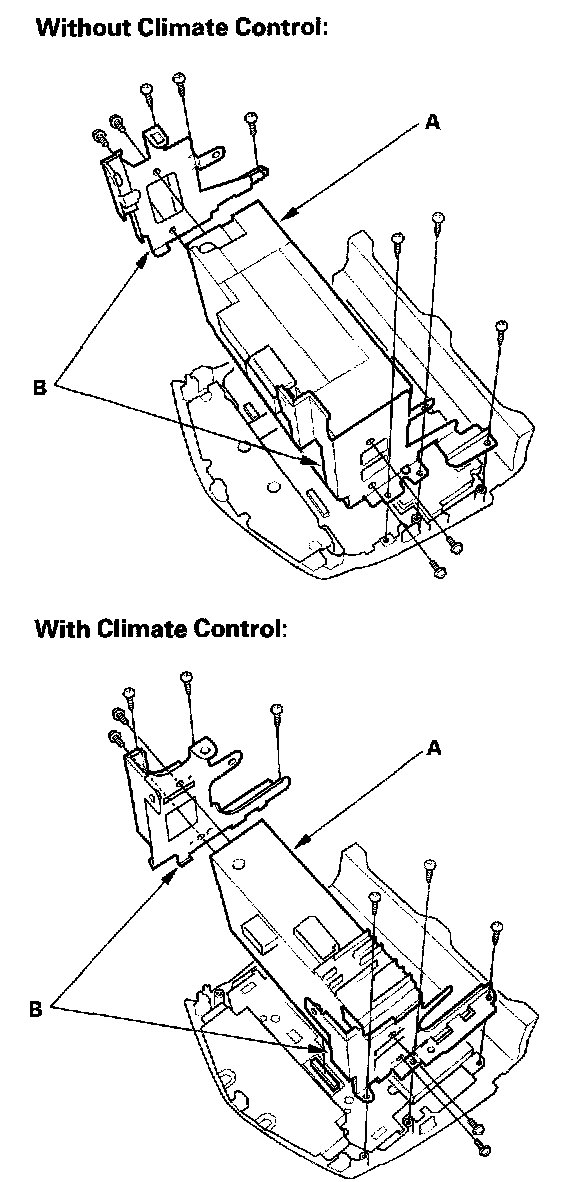

2. Remove the mounting screws and the audio unit (A) from the radio brackets (B).




3. Install in the reverse order of removal.
