Electric Load Sensor: Locations

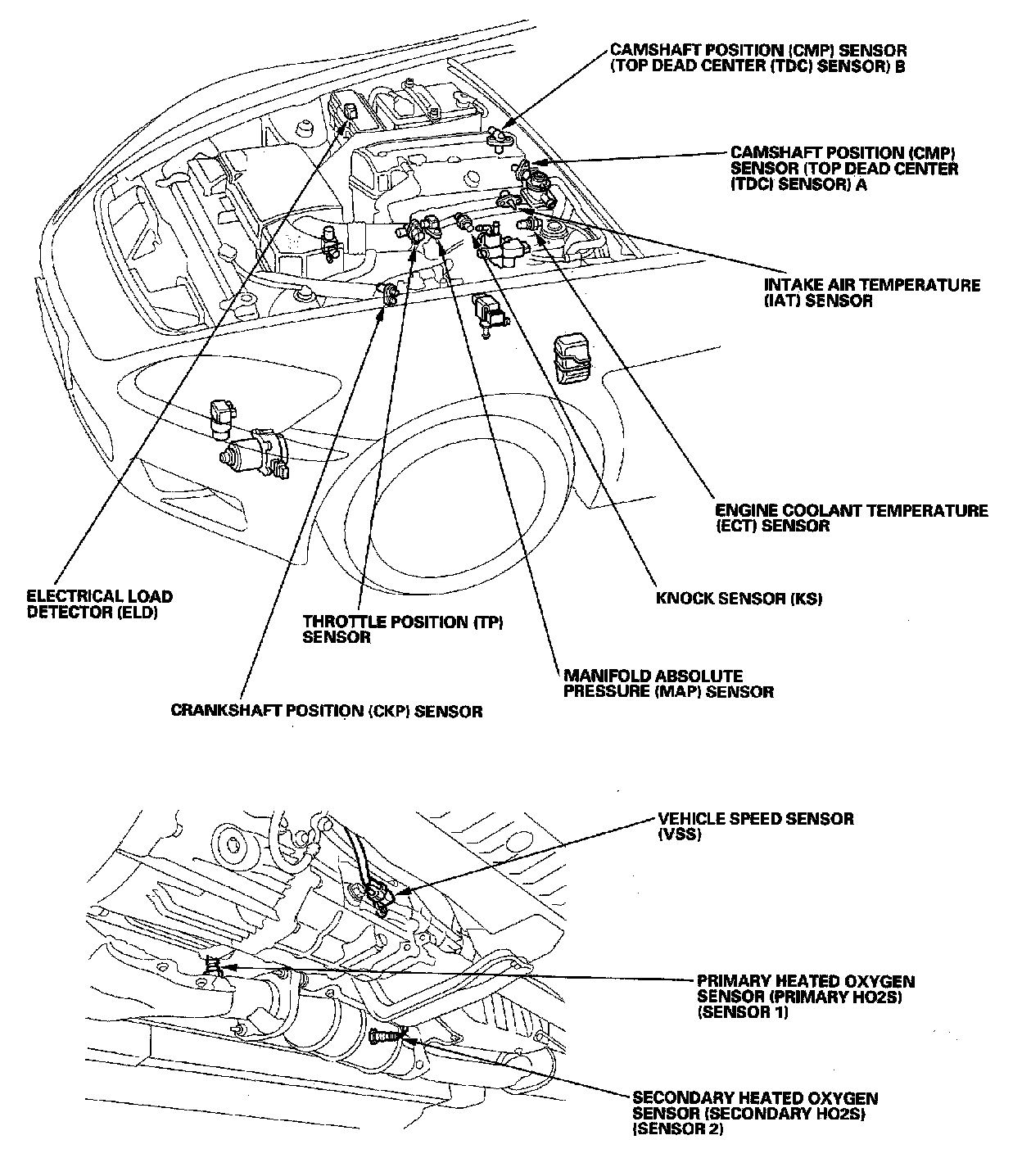

PGM-FI System - Component Location Index:

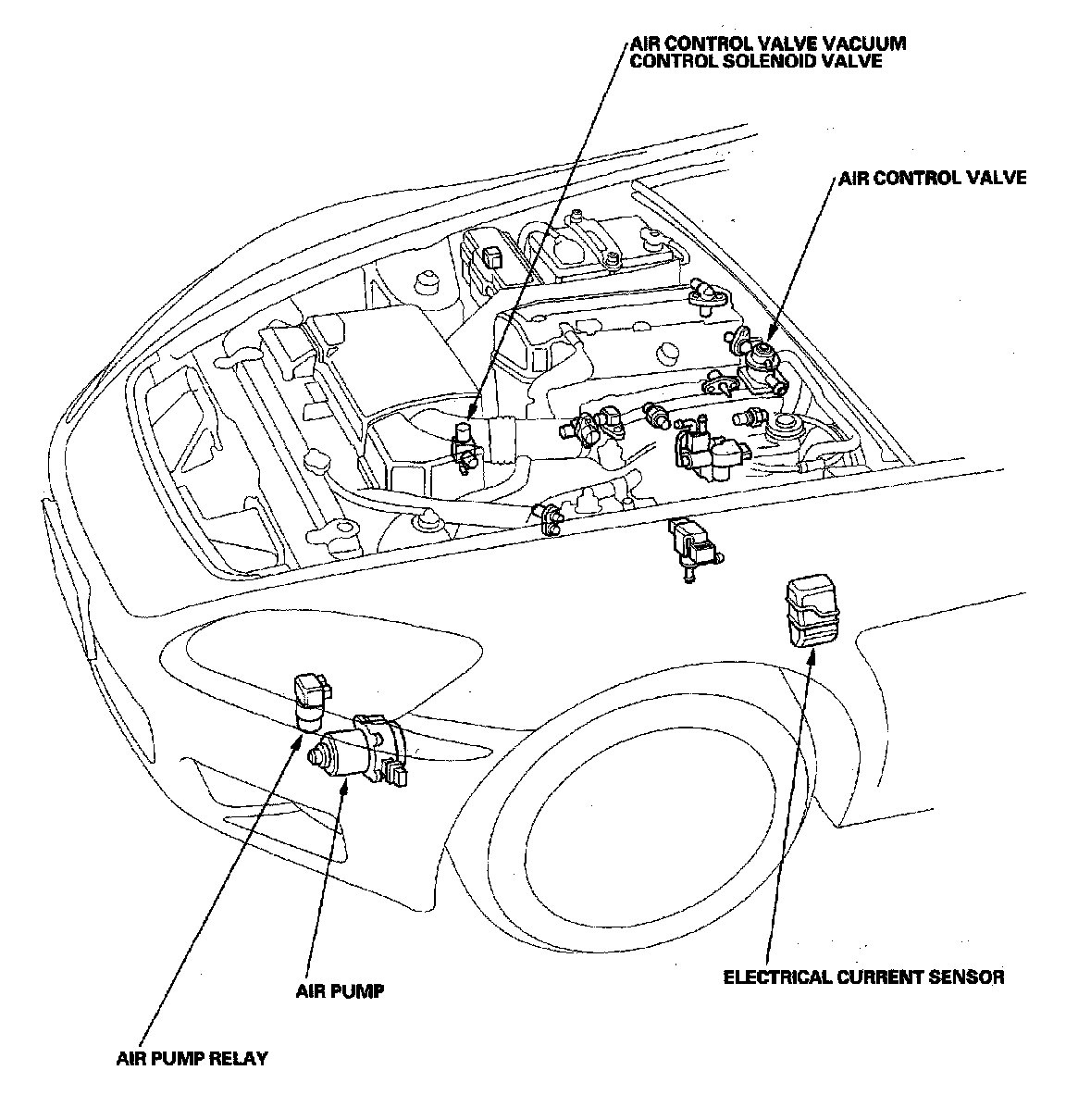

Pulsed Secondary Air Injection System - Component Location Index:

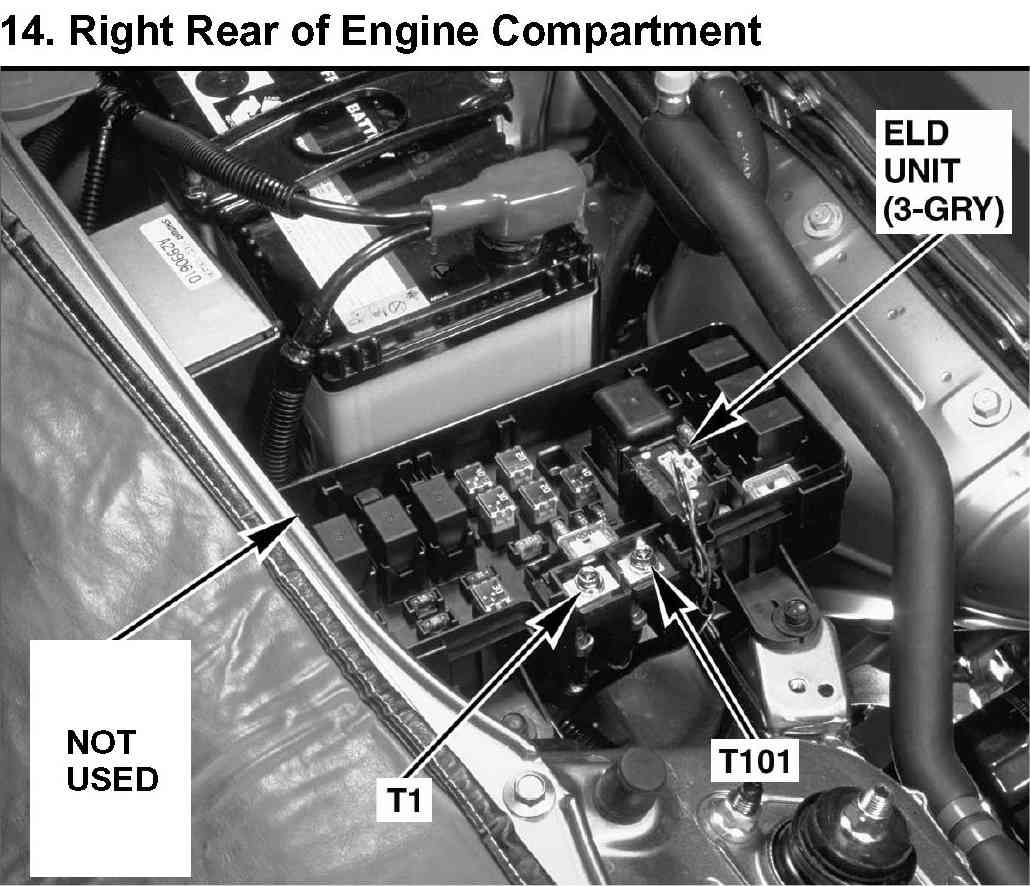

14. Right Rear of Engine Compartment:
