Splash Guard: Service and Repair

Strake Replacement

NOTE: Take care not to scratch the body.

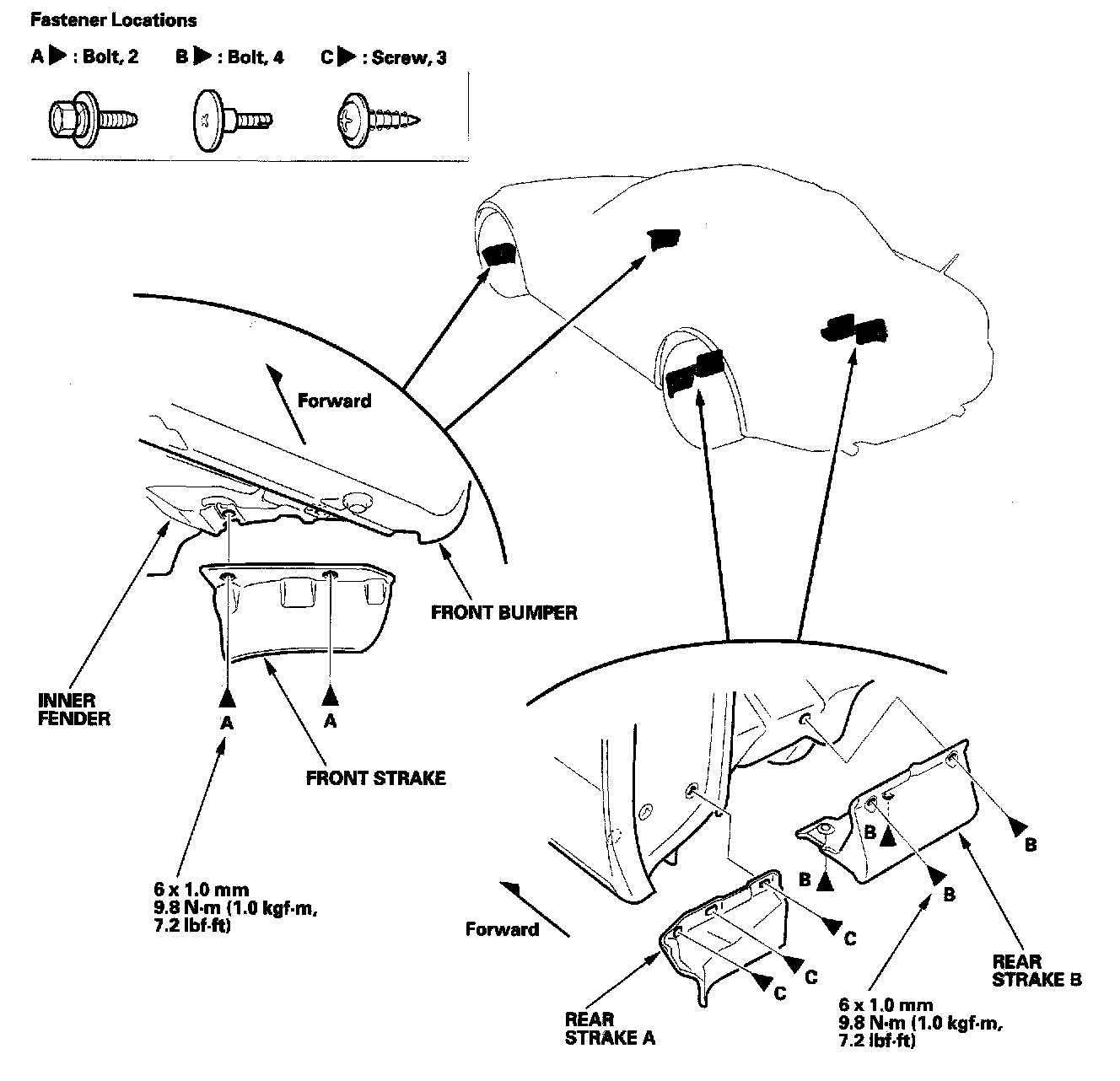

1. Remove the strakes as shown.




2. Install the strakes in the reverse order of removal.
