Frame: Specifications

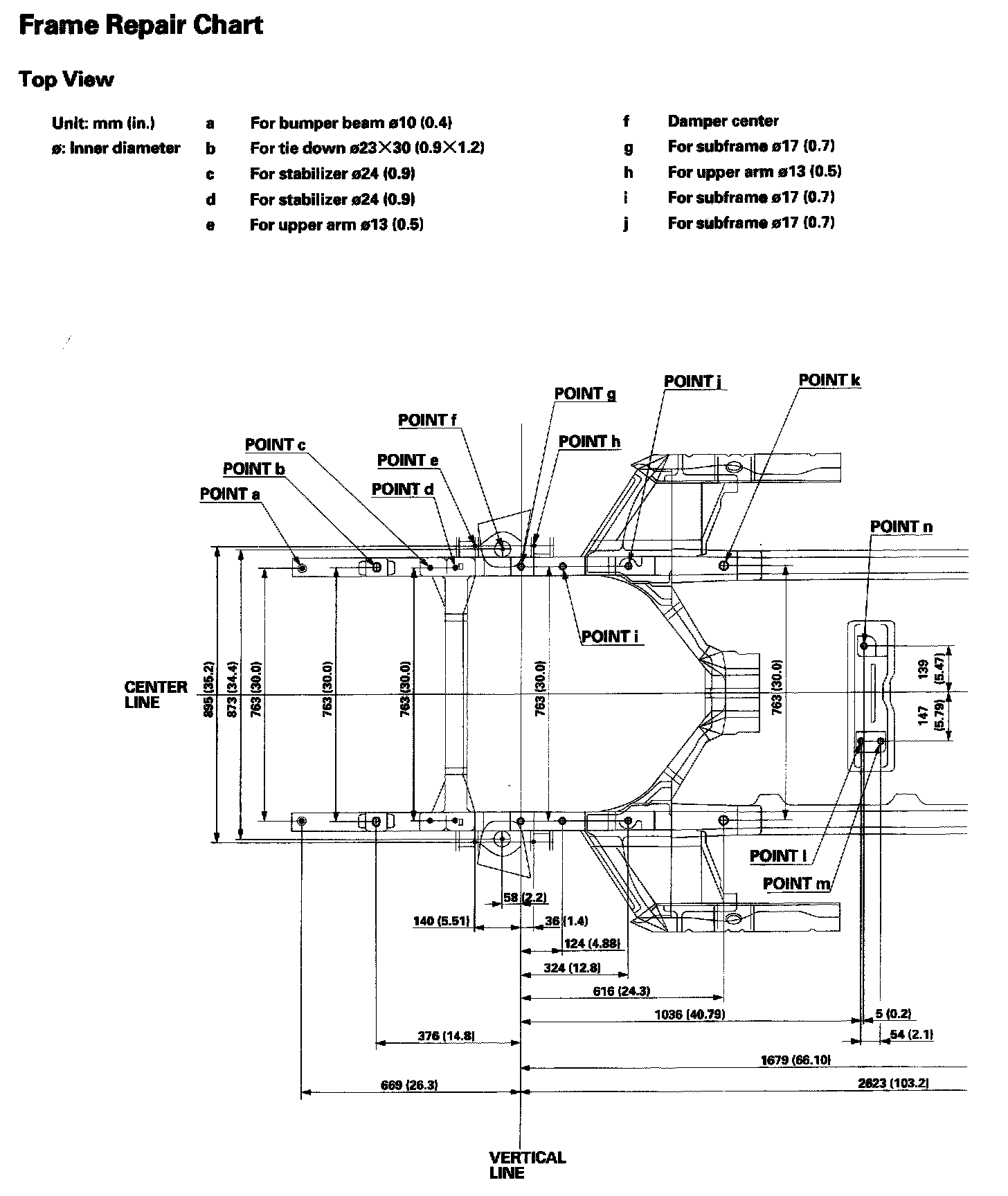

Frame Repair Chart, Top View Part 1:

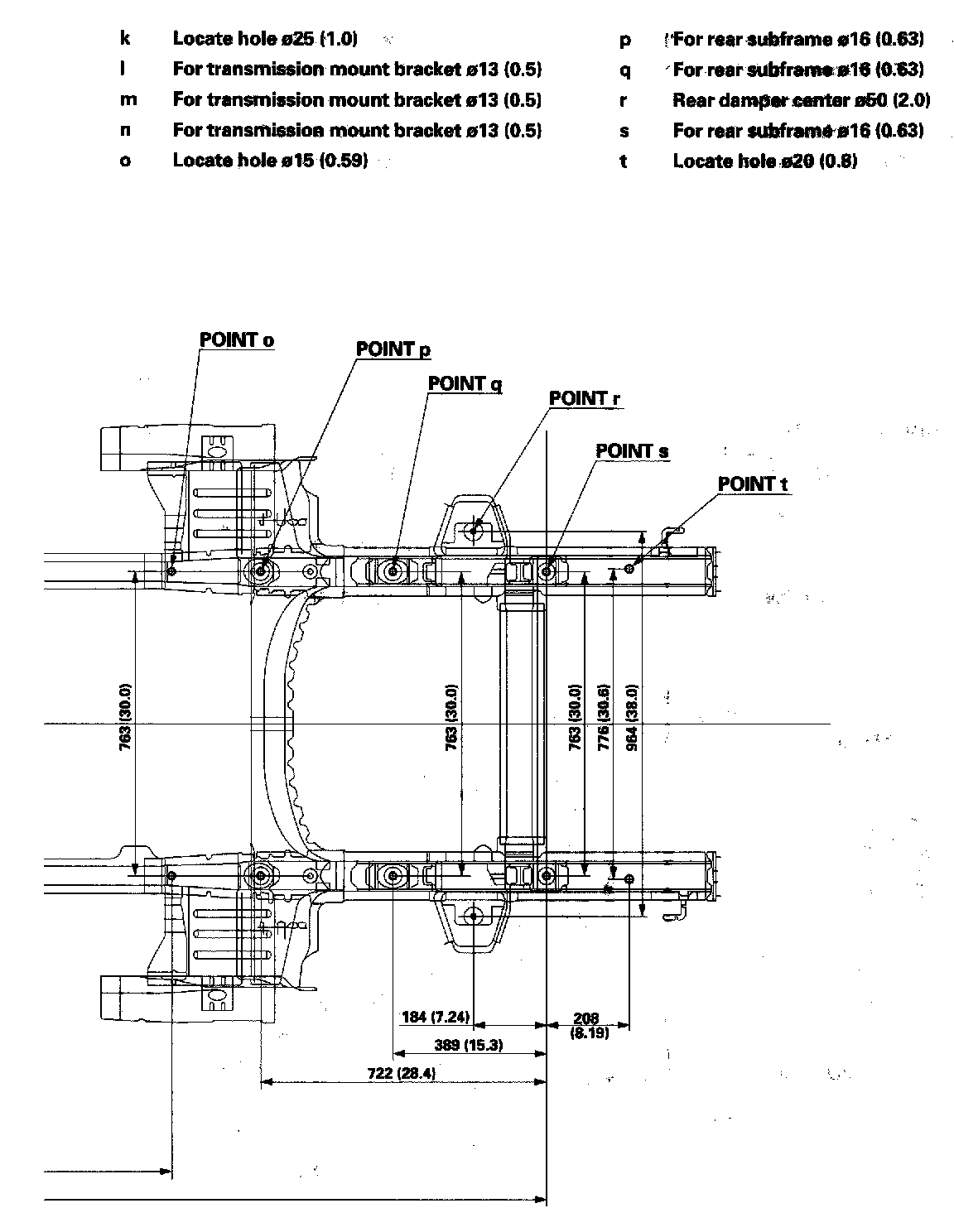

Frame Repair Chart, Top View Part 2:

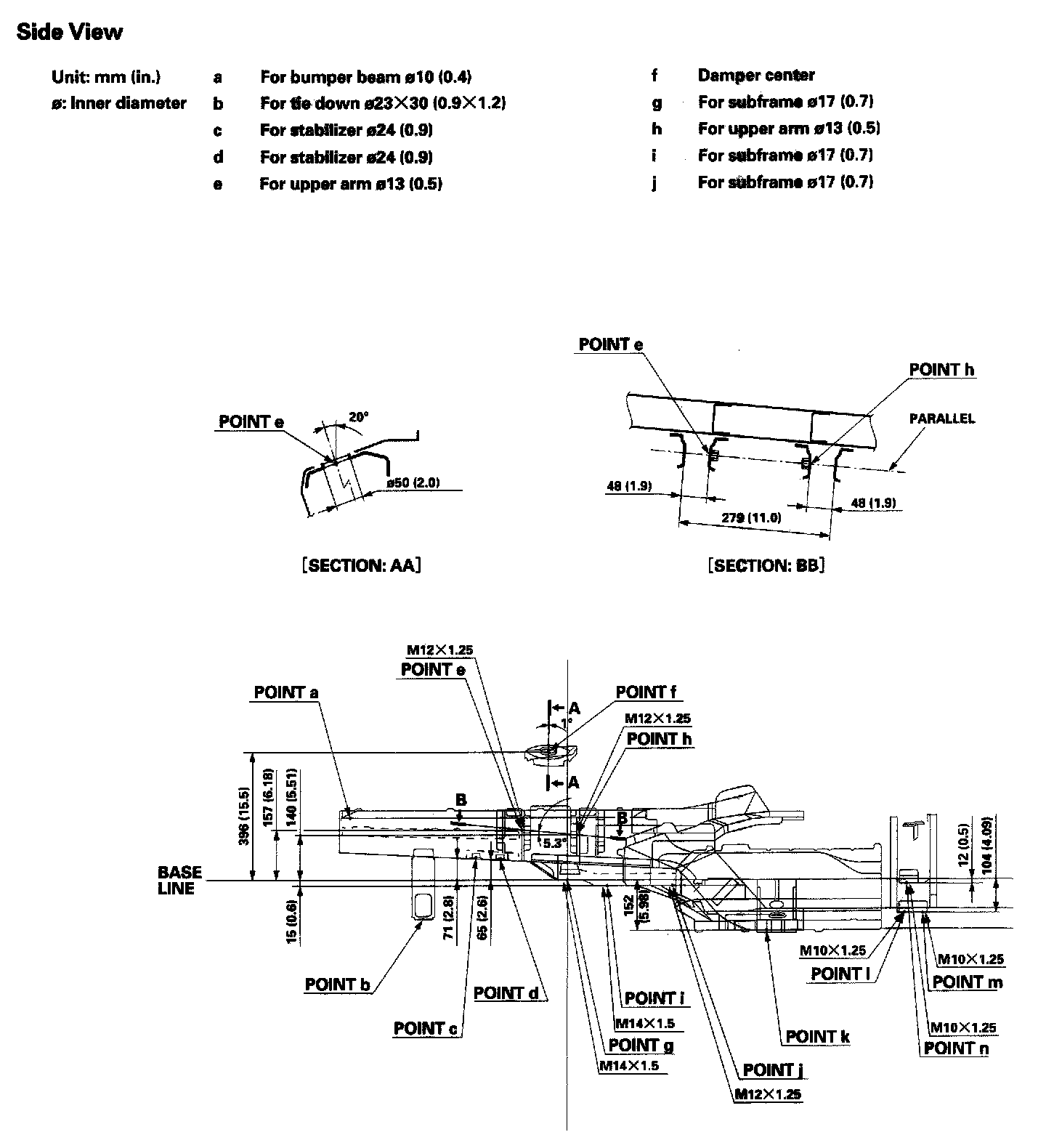

Frame Repair Chart, Side View Part 1:

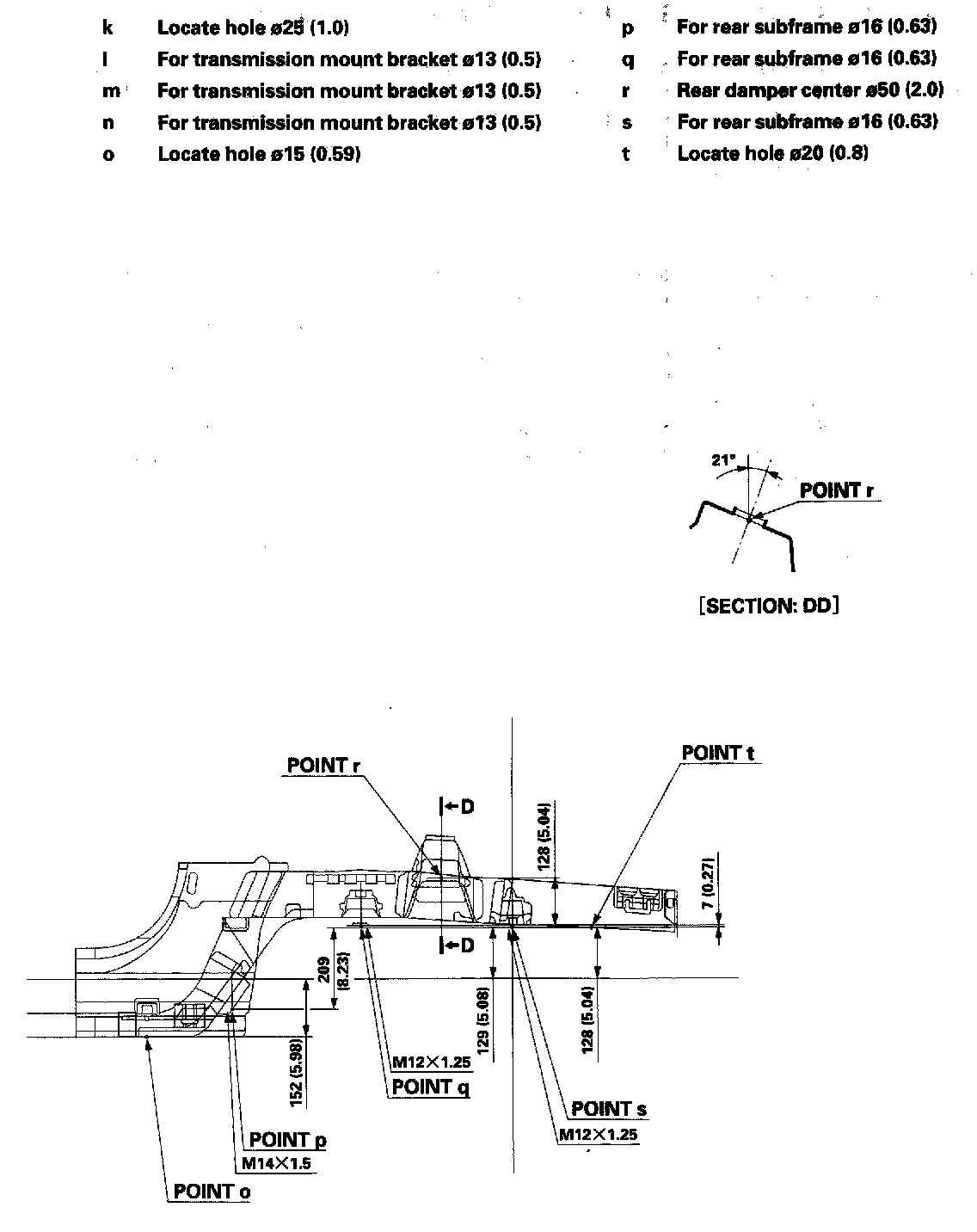

Frame Repair Chart, Side View Part 2:
